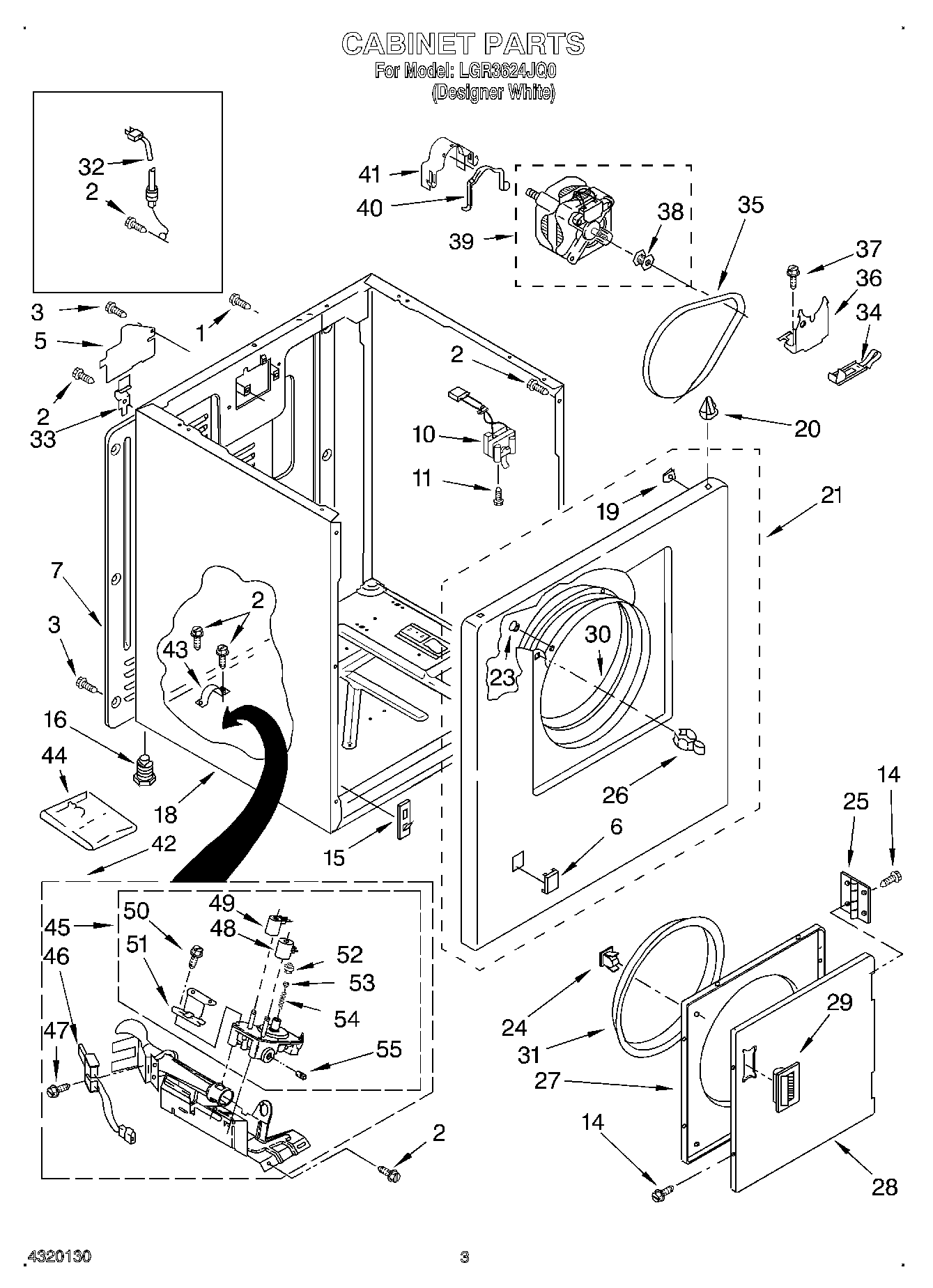

LGR3624JQ0 02 – CABINET

Products

Position	Product
1	W10850756 Whirlpool Screw
2	SCREW
3	WP693995 Whirlpool Screw
5	W11539855 Whirlpool Refrigerator Pump
6	Plug, Front Panel (White)
7	280040 Whirlpool Rear Panel
10	WP3406102 Whirlpool Door Switch
11	WP3395530 Whirlpool Screw
14	WP694091 Whirlpool Screw
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
18	Cabinet (White (Includes Illus. Nos. 5, 7, 16, 41, and 57))
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Front Panel Assembly (White)
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
25	WP348023 Whirlpool Hinge
26	279570 Whirlpool Dryer Door Latch Kit
27	280077 Whirlpool Door
28	WP348205 Whirlpool Door
29	WP686711 Whirlpool Door Handle
30	279264 Whirlpool Bearing and Seal Kit
31	W11613302 Whirlpool Door Seal
32	W11222083 Whirlpool Power Cord
33	WP8066217 Whirlpool Hinge
34	WP691366 Whirlpool Dryer Idler Pulley Assembly
35	341241 Whirlpool Dryer Drum Belt
36	WP348780 Whirlpool Base
37	3400500 Whirlpool Screw
38	WP8066184 Whirlpool Dryer Motor Pulley
39	279827 Whirlpool Dryer Drive Motor
40	WP660658 Whirlpool Clamp
41	WP3404162 Whirlpool Clamp
42	WPL 3402844
43	341029 Whirlpool Clamp
44	49572A Whirlpool Dryer Propane Gas Conversion Kit
45	279923 Whirlpool Gas Valve
46	279311 Whirlpool Dryer Flat Igniter with Bracket
47	WPW10366705 Whirlpool Screw
48	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
50	694421 Whirlpool Screw Assembly
51	694538 Whirlpool Bracket
52	WP694424 Whirlpool Limiter
53	WP694423 Whirlpool Regulator
54	WP694422 Whirlpool Spring
55	W10295523 Whirlpool Plug
