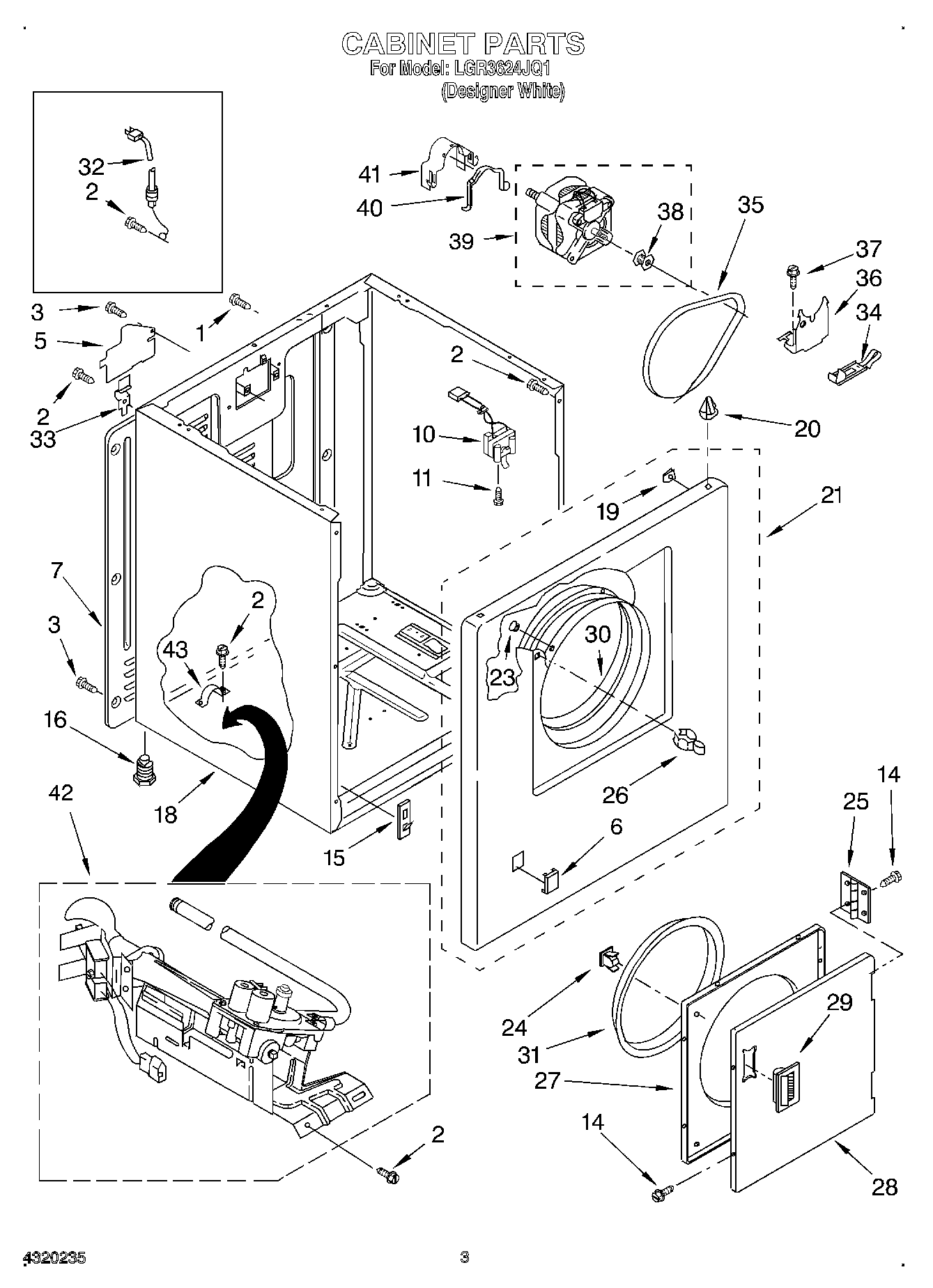

LGR3624JQ1 02 – CABINET

Products

Position	Product
1	W10850756 Whirlpool Screw
2	SCREW
3	WP693995 Whirlpool Screw
5	W11539855 Whirlpool Refrigerator Pump
6	Plug, Front Panel (White)
7	280040 Whirlpool Rear Panel
10	WP3406102 Whirlpool Door Switch
11	WP3395530 Whirlpool Screw
14	WP694091 Whirlpool Screw
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
18	Cabinet (White (Includes Illus. Nos. 5, 7, 16, 41, and 57))
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Front Panel Assembly (White)
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
25	WP348023 Whirlpool Hinge
26	279570 Whirlpool Dryer Door Latch Kit
27	280077 Whirlpool Door
28	WP348205 Whirlpool Door
29	WP686711 Whirlpool Door Handle
30	279264 Whirlpool Bearing and Seal Kit
31	W11613302 Whirlpool Door Seal
32	W11222083 Whirlpool Power Cord
33	WP8066217 Whirlpool Hinge
34	WP691366 Whirlpool Dryer Idler Pulley Assembly
35	341241 Whirlpool Dryer Drum Belt
36	WP348780 Whirlpool Base
37	3400500 Whirlpool Screw
38	WP8066184 Whirlpool Dryer Motor Pulley
39	279827 Whirlpool Dryer Drive Motor
40	WP660658 Whirlpool Clamp
41	WP3404162 Whirlpool Clamp
42	W10823508 Whirlpool Gas Burner
43	341029 Whirlpool Clamp
