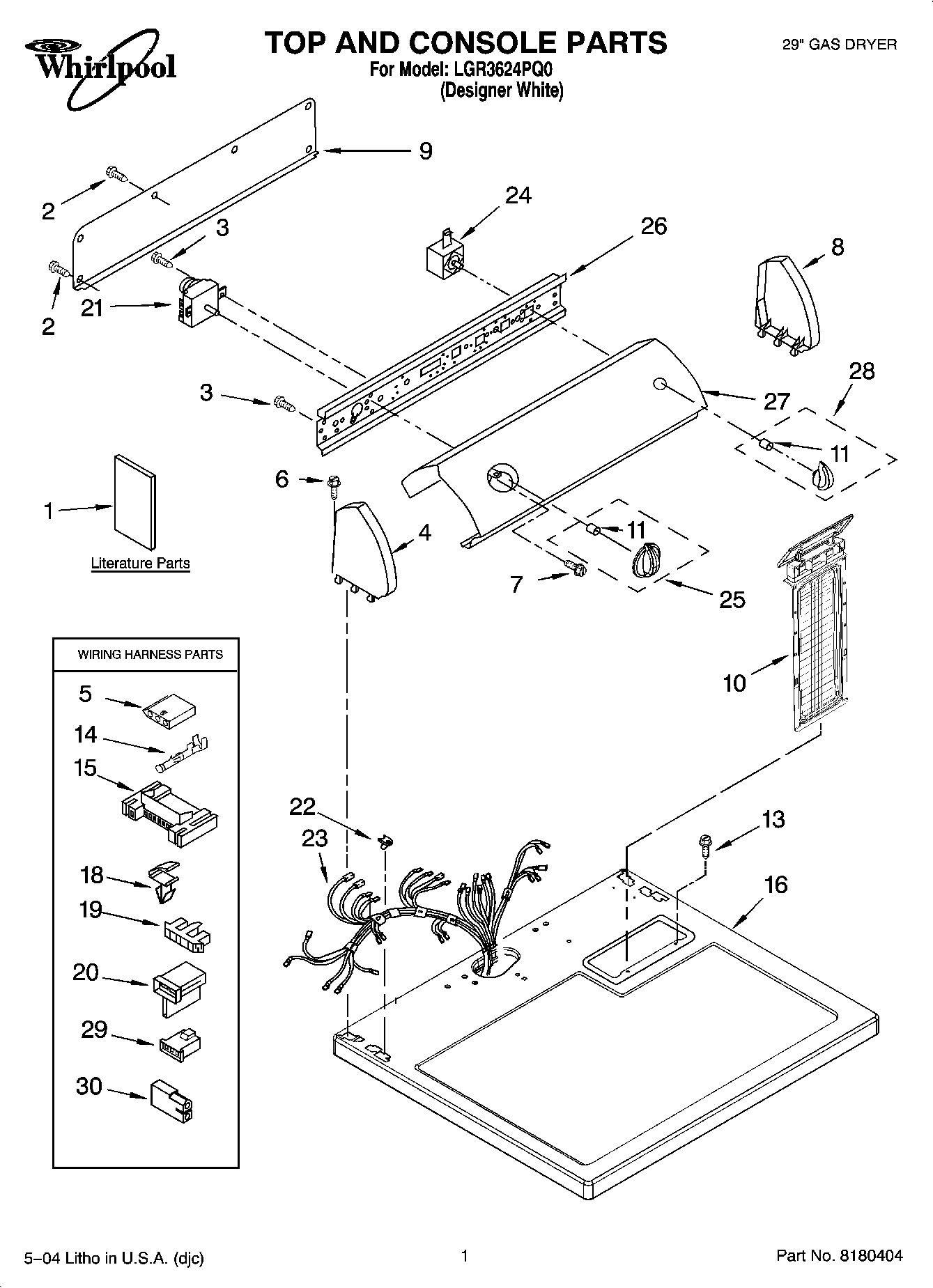

LGR3624PQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Use & Care Guide
1	Sheet, Cycle Feature
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Instructions, Installation
1	WPL 677818
1	Wiring Diagram
2	WP693995 Whirlpool Screw
3	WPW10139210 Whirlpool Screw
5	3936144 Whirlpool Connector
6	WP388326 Whirlpool Screw
7	3400859 Whirlpool Screw
8	W10820038 Whirlpool Endcap
9	W10103406 Whirlpool Rear Panel
10	W10874409 Whirlpool Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
13	W11693756 Whirlpool Screw Assembly
14	WP94614 Whirlpool Terminal
15	3395683 Whirlpool Connector
16	Top
18	WP3394427 Whirlpool Clip
19	Connector, Timer
20	WP3403499 Whirlpool Connector
21	WP3976575 Whirlpool Timer
22	WP357213 Whirlpool Hinge Stopper
23	8299875 Whirlpool Wire Harness
24	WP3977456 Whirlpool Start Switch
25	W10756270 Whirlpool Dryer Timer Knob
26	Bracket, Control
27	Panel, Control
28	WP8544939 Whirlpool Knob Assembly
29	WP3403498 Whirlpool Connector
30	WP689790 Whirlpool Dryer Rack
30	350938 Whirlpool Spray Gun
30	72017 Whirlpool Appliance Touch-Up Paint White
30	KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
30	799344 Whirlpool Refrigerator Paint
30	350930 Whirlpool White Spray Paint
30	4392065 Whirlpool Dryer Maintenance Kit
30	W11224254 Whirlpool Test Kit
30	Receptacle, Latching (2-Way) (Uses Terminal 94614)
30	ACCESSORY PARTS
