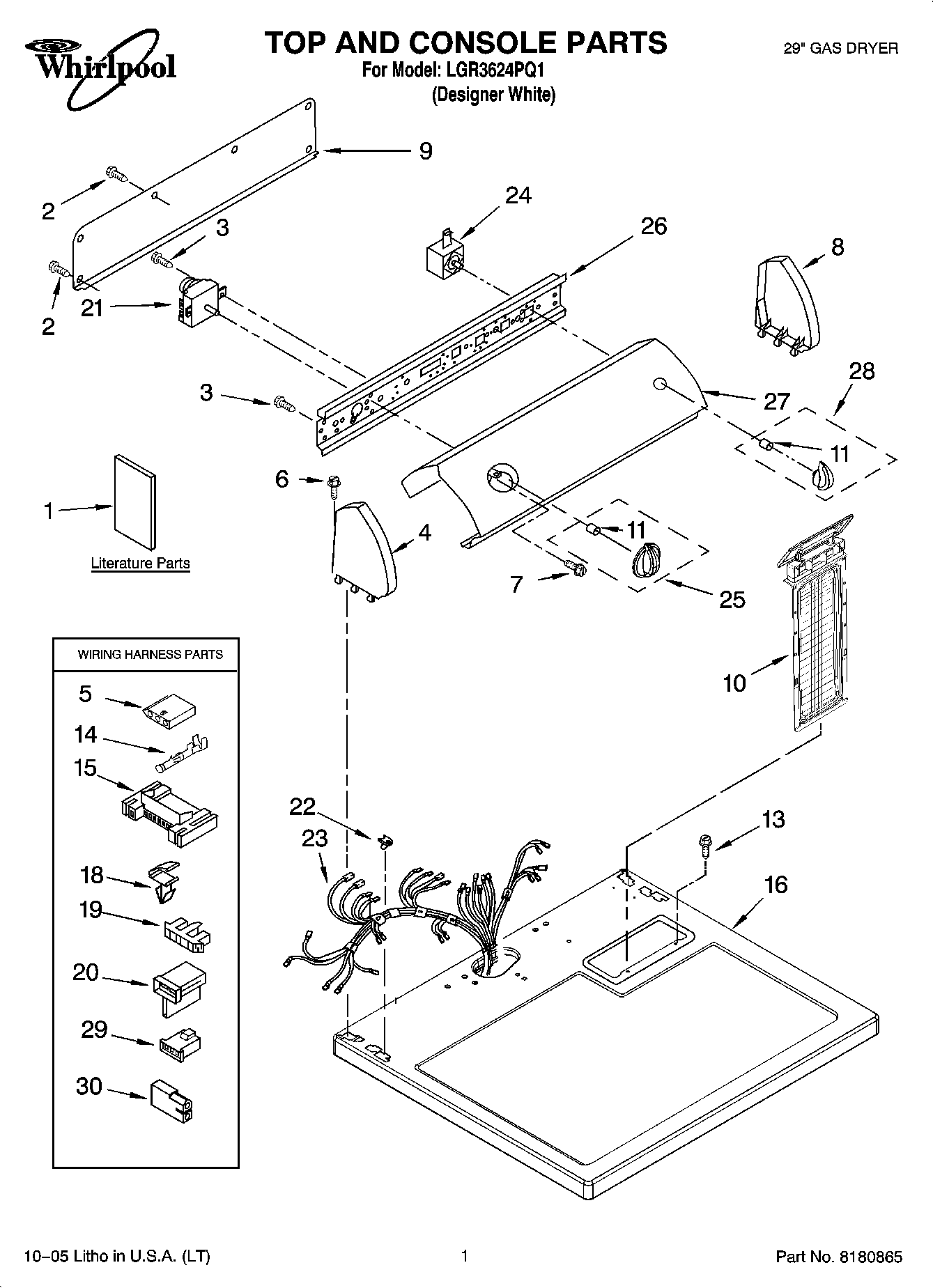

LGR3624PQ1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Wiring Diagram
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Use & Care Guide
1	Instructions, Installation
1	Sheet, Cycle Feature
1	WPL 677818
2	WP693995 Whirlpool Screw
3	WP90767 Whirlpool Screw
5	3936144 Whirlpool Connector
6	WP388326 Whirlpool Screw
7	3400859 Whirlpool Screw
8	W10820038 Whirlpool Endcap
9	W10103406 Whirlpool Rear Panel
10	W10874409 Whirlpool Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
13	W11693756 Whirlpool Screw Assembly
14	WP94614 Whirlpool Terminal
15	3395683 Whirlpool Connector
16	Top
18	WP3394427 Whirlpool Clip
19	Connector, Timer
20	WP3403499 Whirlpool Connector
21	WP3976575 Whirlpool Timer
22	WP357213 Whirlpool Hinge Stopper
23	8299875 Whirlpool Wire Harness
24	WP3977456 Whirlpool Start Switch
25	W10756270 Whirlpool Dryer Timer Knob
26	Bracket, Control
27	Panel, Control
28	WP8544939 Whirlpool Knob Assembly
29	WP3403498 Whirlpool Connector
30	Receptacle, Latching (2-Way) (Uses Terminal 94614)
