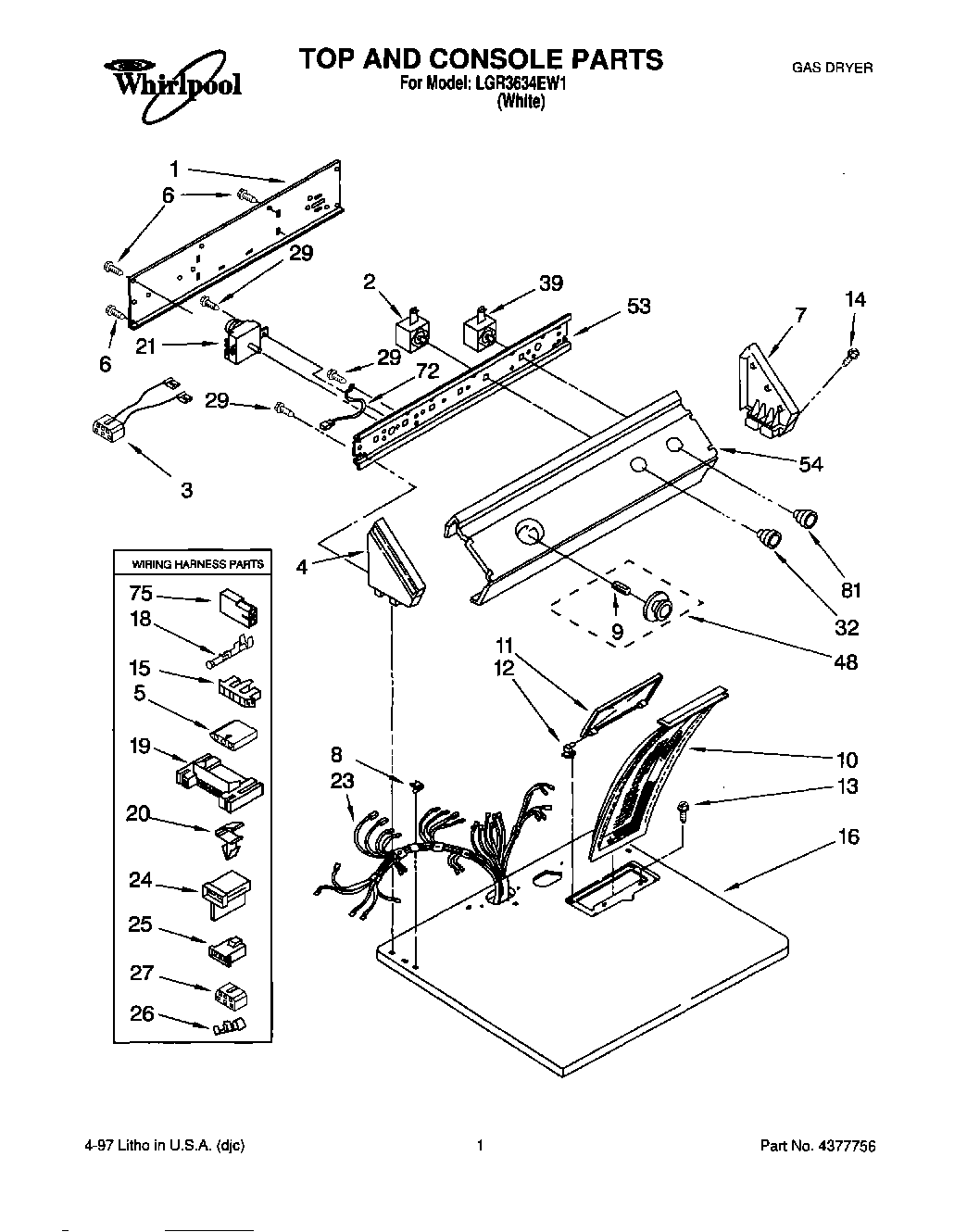

LGR3634EW1 01 – TOP AND CABINET, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3406071
	Label, Wiring Diagram
	Instructions, Door Reversing
	Label, Warning
	Instructions, Installation
	Dryer
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	350938 Whirlpool Spray Gun
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
1	Panel, Rear Console
2	3399638 Whirlpool Switch
3	8283286 Whirlpool Wire Harness
4	Cap, End (L.H.)
5	Connector (Door Switch)
6	WP693995 Whirlpool Screw
7	Cap, End (R.H.)
8	WP357213 Whirlpool Hinge Stopper
9	WP688805 Whirlpool Spring Clip
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	Connector, Timer
16	Top (White)
18	WP94614 Whirlpool Terminal
19	3395683 Whirlpool Connector
20	WP3394427 Whirlpool Clip
21	WP3976568 Whirlpool Timer
23	Harness, Wiring
24	WP3403499 Whirlpool Connector
25	WP3403498 Whirlpool Connector
26	W10113937 Whirlpool Clamp
27	Block, Disconnect
29	WPW10139210 Whirlpool Screw
32	KNOB
39	WP3395382 Whirlpool Push To Start Switch
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control
72	Wire, Ground
75	Receptacle, Latching (2-Way) (Uses Terminal 94614)
81	Knob, Push-To-Start
