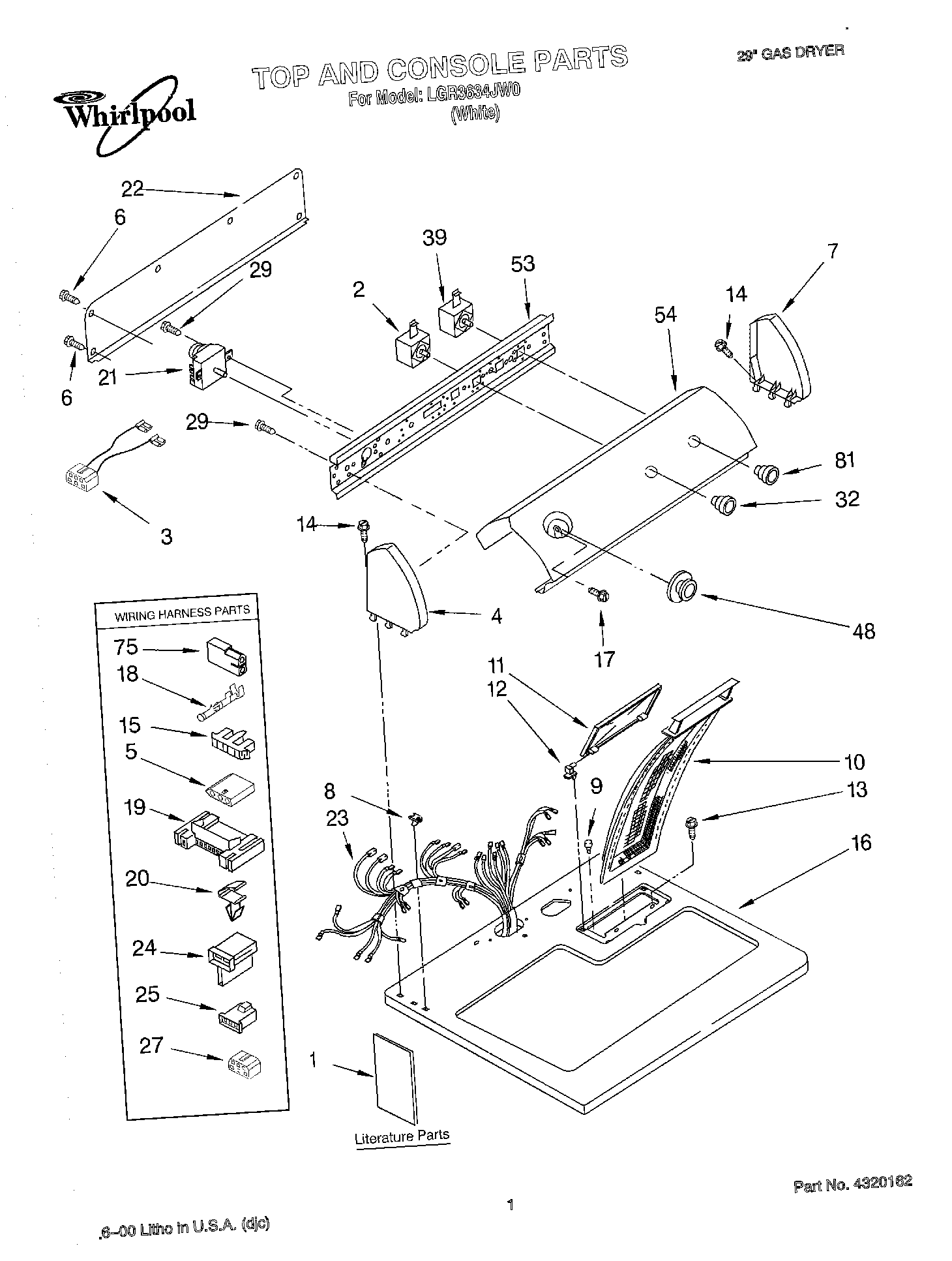

LGR3634JW0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
1Label, Wiring Diagram
1Instructions, Installation
1Literature Parts (Guide, Use & Care)
23399638 Whirlpool Switch
38283286 Whirlpool Wire Harness
4Cap, End (L.H.)
53936144 Whirlpool Connector
6WP693995 Whirlpool Screw
7Cap, End (R.H.)
8WP357213 Whirlpool Hinge Stopper
9Bumper, Lint Lid
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15Connector, Timer
16Top
173400859 Whirlpool Screw
18WP94614 Whirlpool Terminal
193395683 Whirlpool Connector
20WP3394427 Whirlpool Clip
21WP3976575 Whirlpool Timer
22W10103406 Whirlpool Rear Panel
23Harness, Wiring
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
27Block, Disconnect
29WPW10139210 Whirlpool Screw
32KNOB
39WP3395382 Whirlpool Push To Start Switch
48Timer Knob & Dial
53Bracket, Control
54Panel, Control
75Receptacle, Latching (2-Way) (Uses Terminal 94614)
81Knob, Push-To-Start
8172017 Whirlpool Appliance Touch-Up Paint White
81350938 Whirlpool Spray Gun
81350956 Whirlpool Spray Assembly
81799344 Whirlpool Refrigerator Paint
81350930 Whirlpool White Spray Paint
81WP72107 Whirlpool Touchup
81Almond (Uncut)
