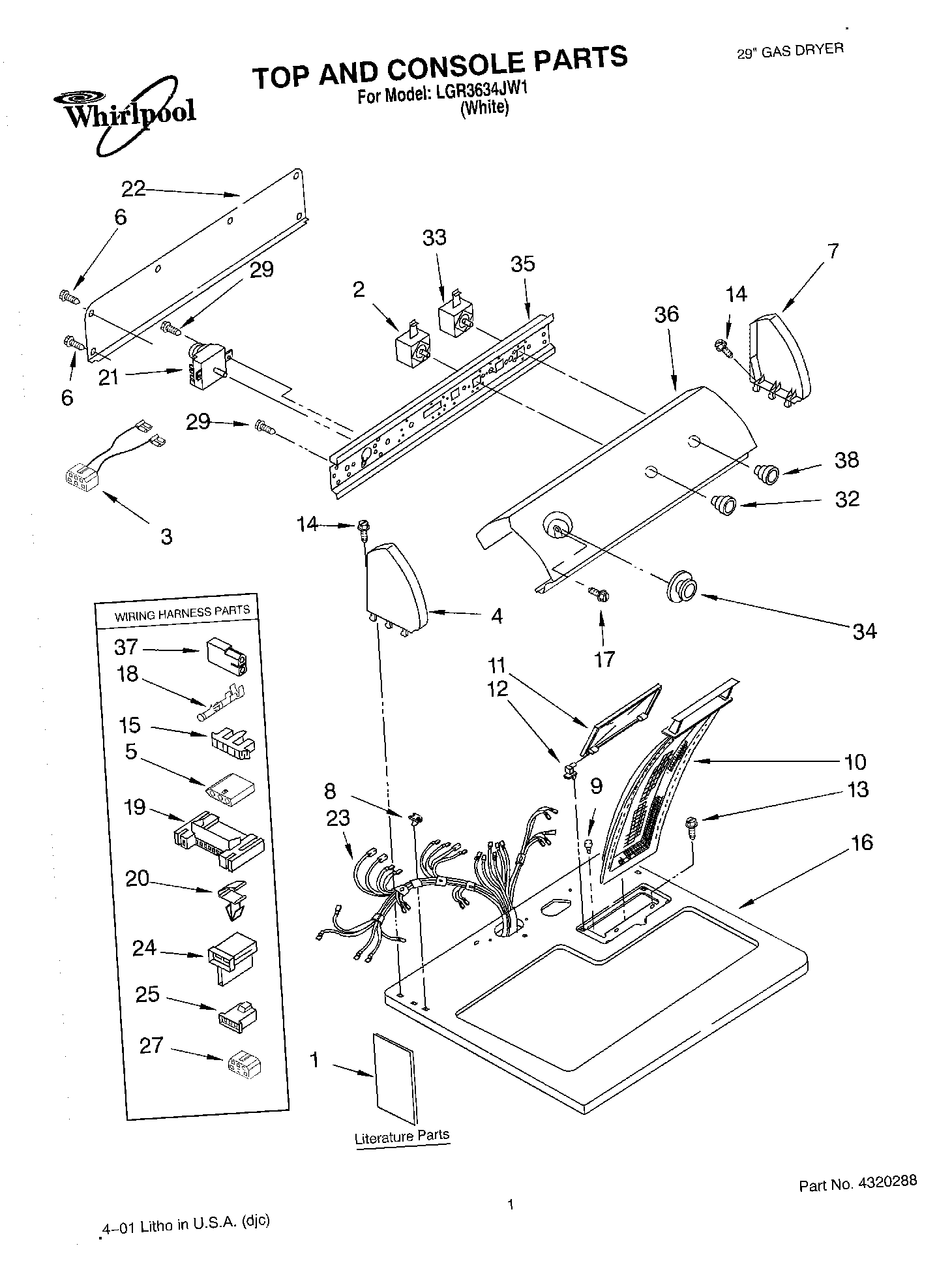

LGR3634JW1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
1	Literature Parts (Guide, Use & Care)
1	Literature Parts (Instructions, Installation)
1	Label, Wiring Diagram
2	3399638 Whirlpool Switch
3	8283286 Whirlpool Wire Harness
4	Cap, End (L.H.)
5	3936144 Whirlpool Connector
6	WP693995 Whirlpool Screw
7	Cap, End (R.H.)
8	WP357213 Whirlpool Hinge Stopper
9	Bumper, Lint Lid
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	Connector, Timer
16	Top
17	3400859 Whirlpool Screw
18	WP94614 Whirlpool Terminal
19	3395683 Whirlpool Connector
20	WP3394427 Whirlpool Clip
21	WP3976575 Whirlpool Timer
22	W10103406 Whirlpool Rear Panel
23	Harness, Wiring
24	WP3403499 Whirlpool Connector
25	WP3403498 Whirlpool Connector
27	Block, Disconnect
29	WPW10139210 Whirlpool Screw
32	KNOB
33	WP3977456 Whirlpool Start Switch
34	Timer Knob & Dial
35	Bracket, Control
36	Panel, Control
37	Receptacle, Latching (2-Way) (Uses Terminal 94614)
38	350930 Whirlpool White Spray Paint
38	350938 Whirlpool Spray Gun
38	72017 Whirlpool Appliance Touch-Up Paint White
38	799344 Whirlpool Refrigerator Paint
38	WP689790 Whirlpool Dryer Rack
38	Knob, Push-To-Start
