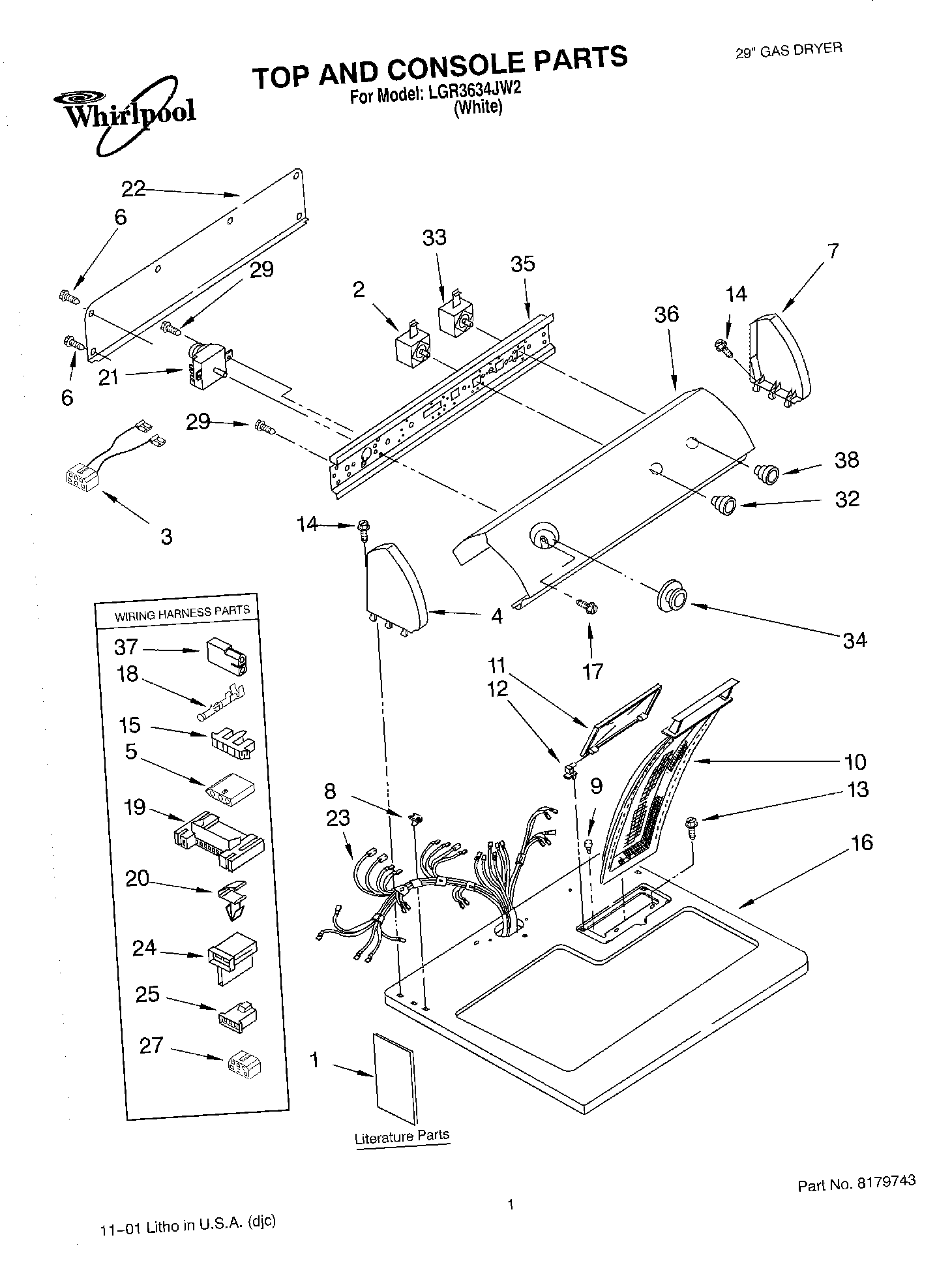

LGR3634JW2 01 – TOP AND CONSOLE, LITERATUREadmin2025-04-26T11:13:21+00:00LGR3634JW2 01 – TOP AND CONSOLE, LITERATURE
Products
| Position | Product |
|---|
| 1 | WPL 677818 |
| 1 | Literature Parts (Label, Wiring Diagram) |
| 1 | Literature Parts (Guide, Use & Care) |
| 1 | Literature Parts (Instructions, Installation) |
| 2 | 3399638 Whirlpool Switch |
| 3 | 8283286 Whirlpool Wire Harness |
| 4 | Cap, End (L.H.) |
| 5 | 3936144 Whirlpool Connector |
| 6 | WP693995 Whirlpool Screw |
| 7 | Cap, End (R.H.) |
| 8 | WP357213 Whirlpool Hinge Stopper |
| 9 | Bumper, Lint Lid |
| 10 | 339392V Whirlpool Dryer Lint Filter Screen |
| 11 | Cover, Lint Screen |
| 12 | WPW10044470 Whirlpool Hinge Assembly |
| 12 | WPW10044480 Whirlpool Hinge Assembly |
| 13 | W11693756 Whirlpool Screw Assembly |
| 14 | WP388326 Whirlpool Screw |
| 15 | Connector, Timer |
| 16 | Top |
| 17 | 3400859 Whirlpool Screw |
| 18 | WP94614 Whirlpool Terminal |
| 19 | 3395683 Whirlpool Connector |
| 20 | WP3394427 Whirlpool Clip |
| 21 | WP3976575 Whirlpool Timer |
| 22 | W10103406 Whirlpool Rear Panel |
| 23 | Harness, Wiring |
| 24 | WP3403499 Whirlpool Connector |
| 25 | WP3403498 Whirlpool Connector |
| 27 | Block, Disconnect |
| 29 | WPW10139210 Whirlpool Screw |
| 32 | KNOB |
| 33 | WP3977456 Whirlpool Start Switch |
| 34 | Timer Knob & Dial |
| 35 | Bracket, Control |
| 36 | Panel, Control |
| 37 | Receptacle, Latching (2-Way) (Uses Terminal 94614) |
| 38 | KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION) |
| 38 | 350938 Whirlpool Spray Gun |
| 38 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 38 | 799344 Whirlpool Refrigerator Paint |
| 38 | 350930 Whirlpool White Spray Paint |
| 38 | Knob, Push-To-Start |
| 38 | 4392065 Whirlpool Dryer Maintenance Kit |
| 38 | WP689790 Whirlpool Dryer Rack |
