LGR3725ADC 01 – BODY

LGR3725ADC 01 – BODY

Written by

in

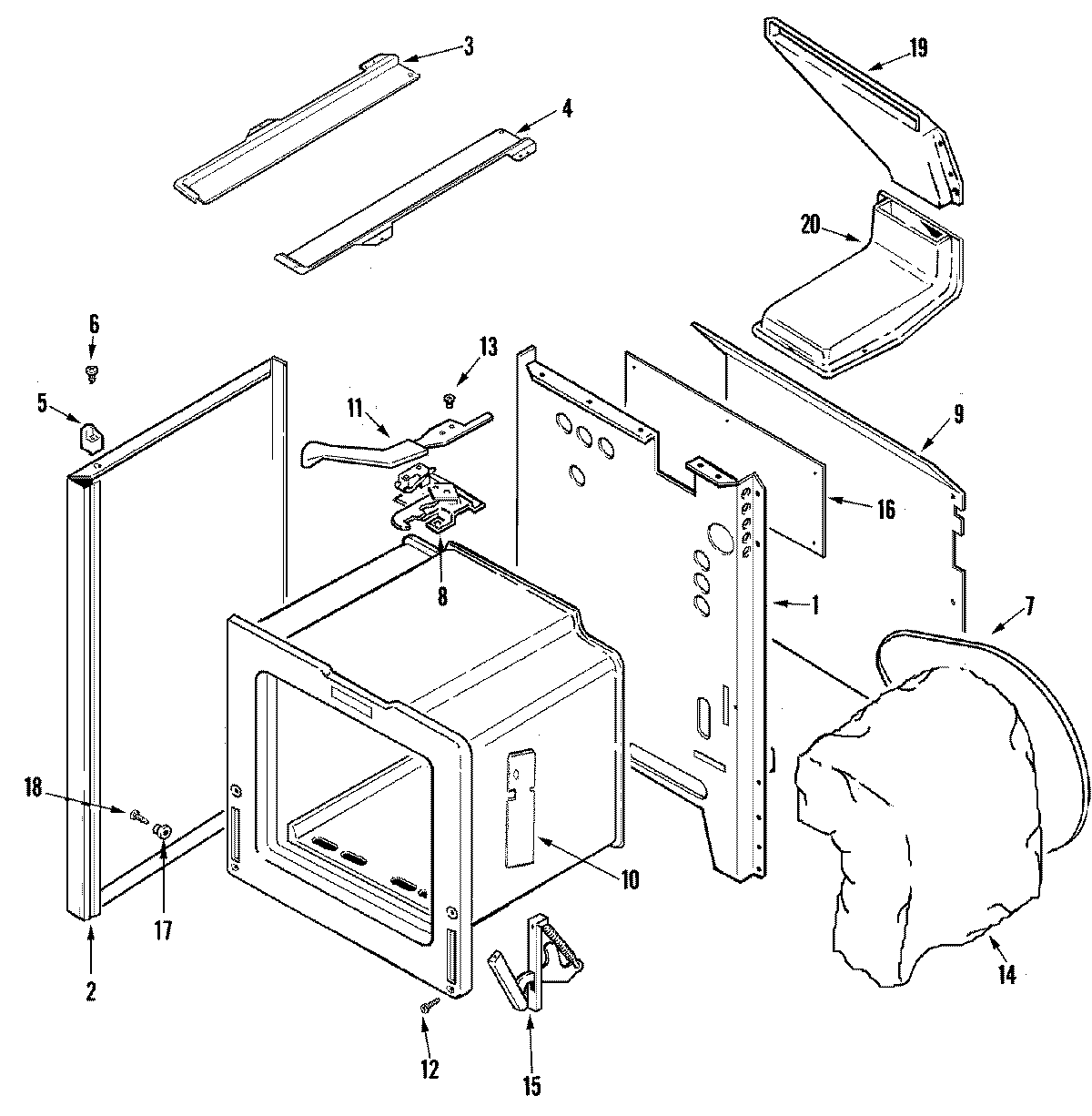

LGR3725ADC 01 – BODY

Products

PositionProduct
1MAY 74006548
1GROMMET
2MAY 74003283
3MAY 74002633
4MAY 74002632
5SPACER, MAIN TOP (LT)
5SPACER, MAIN TOP (RT)
7MAY 74003385
8MAY 12001942
9MAY 74003816
10MAY 74009569
11LEVER, LATCH (BLK)
12SCREW (10-24X5/16-NI)
13SCREW, LEVER
15HINGE-OVEN DOOR
16MAY 3604F165-51
16SCREW
17MAY 8004P024-60
18W11693756 Whirlpool Screw Assembly
19MAY 4022W007-19
19SCREW (8BX3/8-NI)
20MAY 74006420
20WP74003976 Whirlpool Screw
