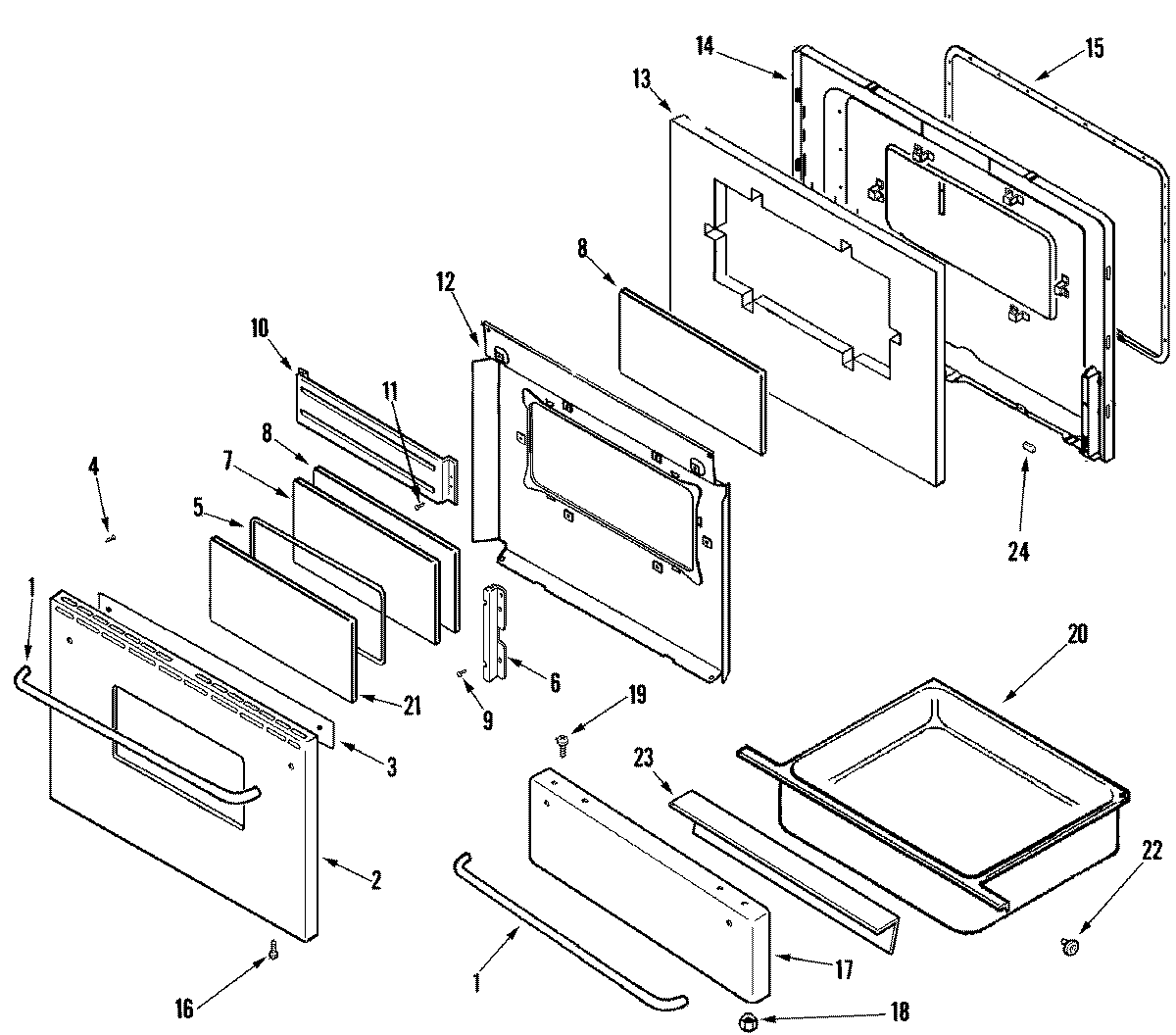

LGR3725ADC 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74006514
2	MAY 74005271
3	MAY 74003146
4	MAY 74001521
4	MAY 74006515
5	GASKET, WINDOW
6	MAY 74003048
7	MAY 74002002
8	GLASS, INNER
10	MAY 74005458
12	MAY 74001843
13	MAY 74001842
14	MAY 74003643
14	LINING, OVEN DOOR
15	GASKT-DOOR OVEN
16	SCREW
17	MAY 74003312
18	WPW10131078 Whirlpool Nut Assembly
20	DRAWER, STORAGE
20	WP3801F813-51 Whirlpool Bracket
21	SHAFT, STORAGE DRAWER ROLLER
21	WP74004078 Whirlpool Door Roller
21	WP488130 Whirlpool Air Conditioner Nut
22	MAY 74001072
23	LINING, DRAWER PANEL
24	WP74005546 Whirlpool RU Spacer
