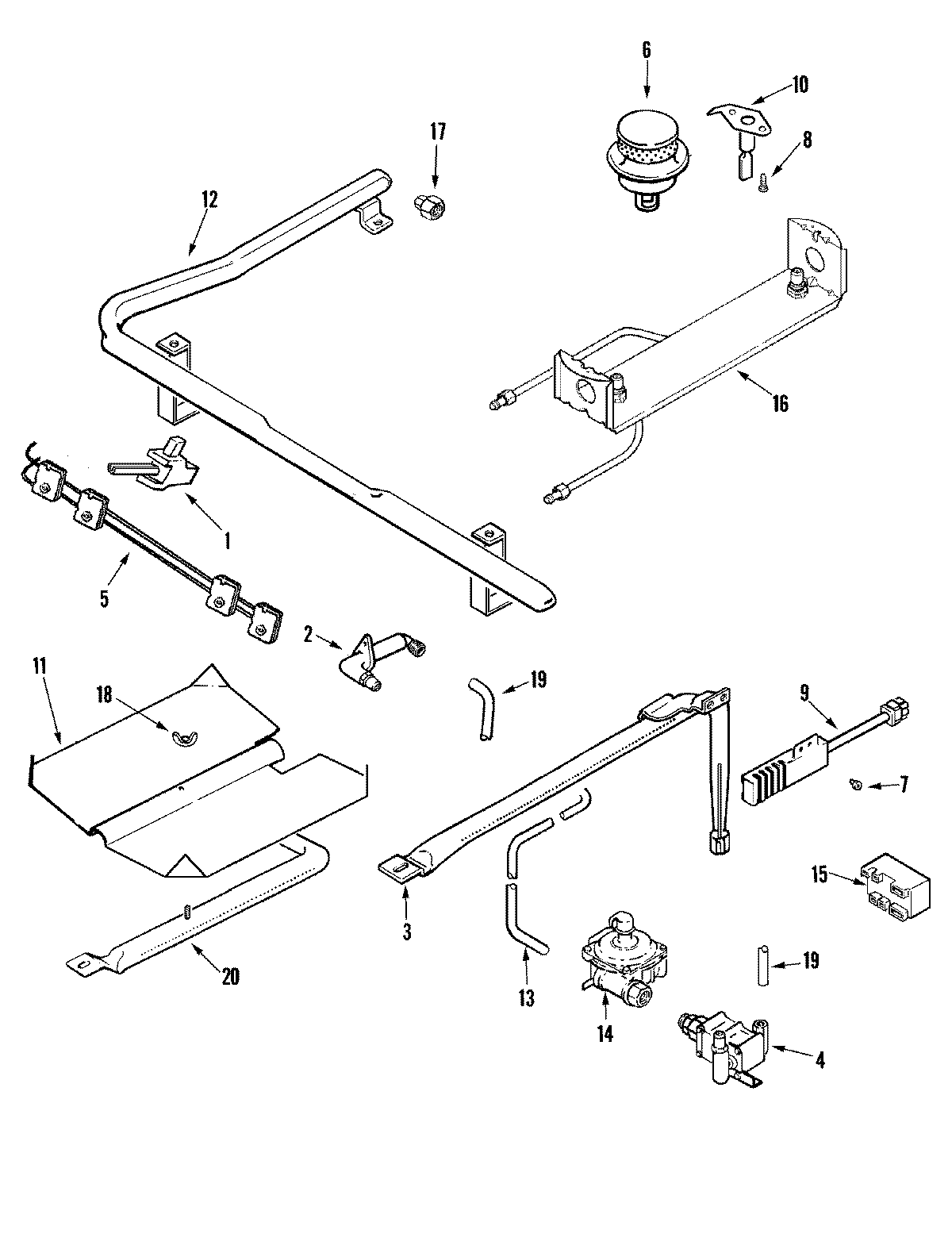

LGR3725ADC 04 – GAS CONTROLS

Products

Position	Product
1	MAY 74003924
1	MAY 74004303
1	MAY 71003231
1	WP8273096 Whirlpool Screw
2	MAY 74004307
2	MAY 74006421
3	MAY 74003960
3	MAY 3807F446-45
4	WP74006427 Whirlpool Oven Valve
5	MAY 74007095
5	WP7403P279-60 Whirlpool Igniter Switch
6	MAY 74003964
7	SCREW (10-24X5/16-NI)
8	MAY Y707113
9	74007498 Whirlpool Range Flat Igniter
9	MAY 74009416
10	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
11	MAY 74009231
12	MAY 74006422
13	MAY 1555258K
13	MAY 74006428
14	WP74006429 Whirlpool Regulator
15	MAY 74007780
15	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
15	MAY 74005266
16	WP5787M052-60 Whirlpool Fitting
16	MAY 74003528
17	NUT, WING
18	MAY 74006430
19	MAY 74004076
20	MAY 74009913
20	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
