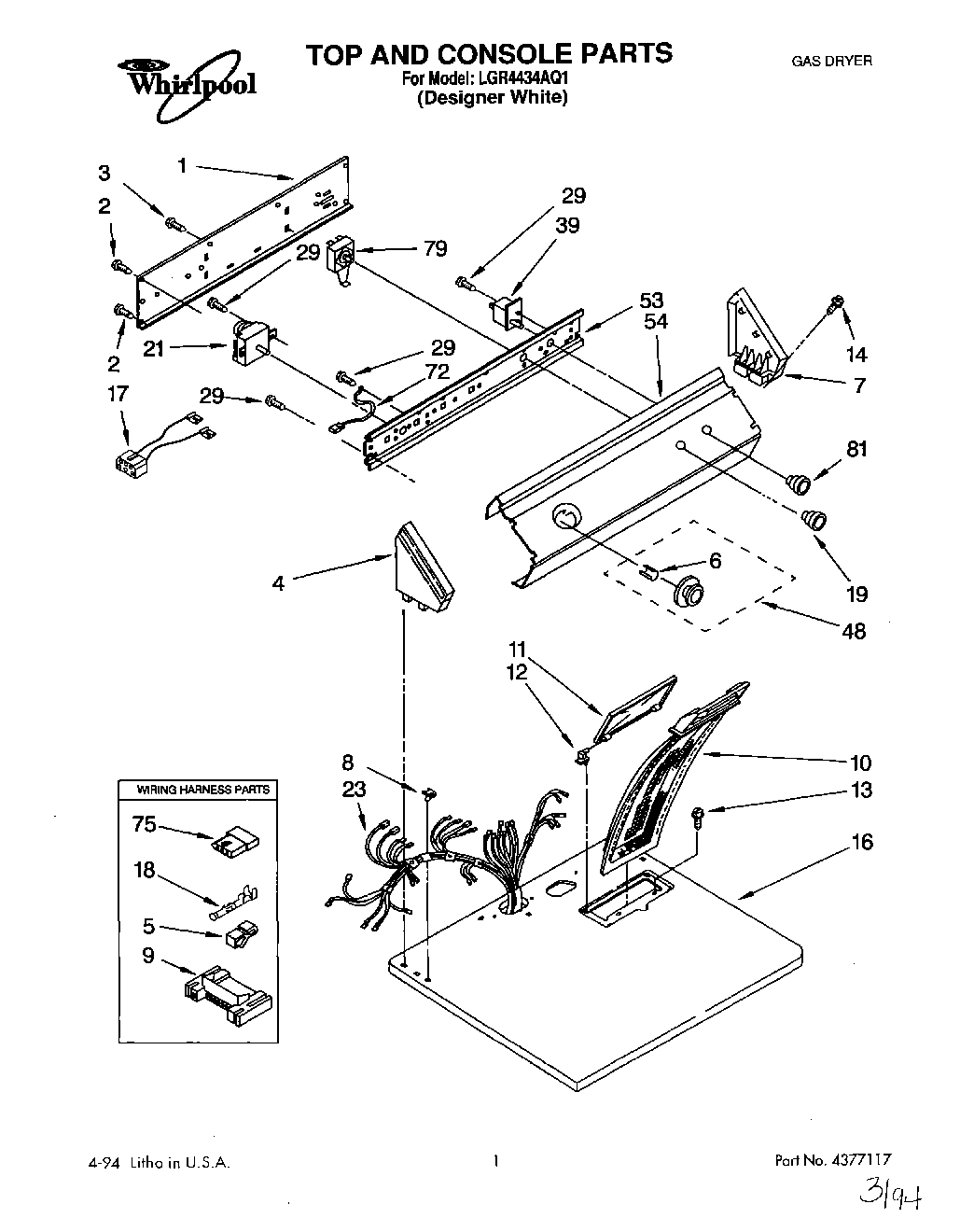

LGR4434AQ1 01 – TOP & CONSOLE, LIT/OPTIONAL

LGR4434AQ1 01 – TOP & CONSOLE, LIT/OPTIONAL

Written by

in

LGR4434AQ1 01 – TOP & CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Dryer
Leveler (Thinner)
Instructions, Installation
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
Use & Care Guide
Label, Wiring Diagram
1Panel, Rear Console
2WP489069 Whirlpool Compactor Screw
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (White)
5Clip, Retainer
6WP688805 Whirlpool Spring Clip
7Cap, End (R.H.) (White)
8WP357213 Whirlpool Hinge Stopper
93395683 Whirlpool Connector
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
16Top (White)
178283286 Whirlpool Wire Harness
18WP94614 Whirlpool Terminal
19WP3957796 Whirlpool Knob
21WP3396215 Whirlpool Timer
23Harness, Wiring
29WPW10139210 Whirlpool Screw
39(Alt.)
39Switch, Push-To-Start
48WP3957752 Whirlpool Knob
53Bracket, Control
54Panel, Control
72Wire, Ground
75Receptacle, 3-Way Terminal (Use W/94614)
79Switch, Temperature
81WP3957800 Whirlpool Knob
