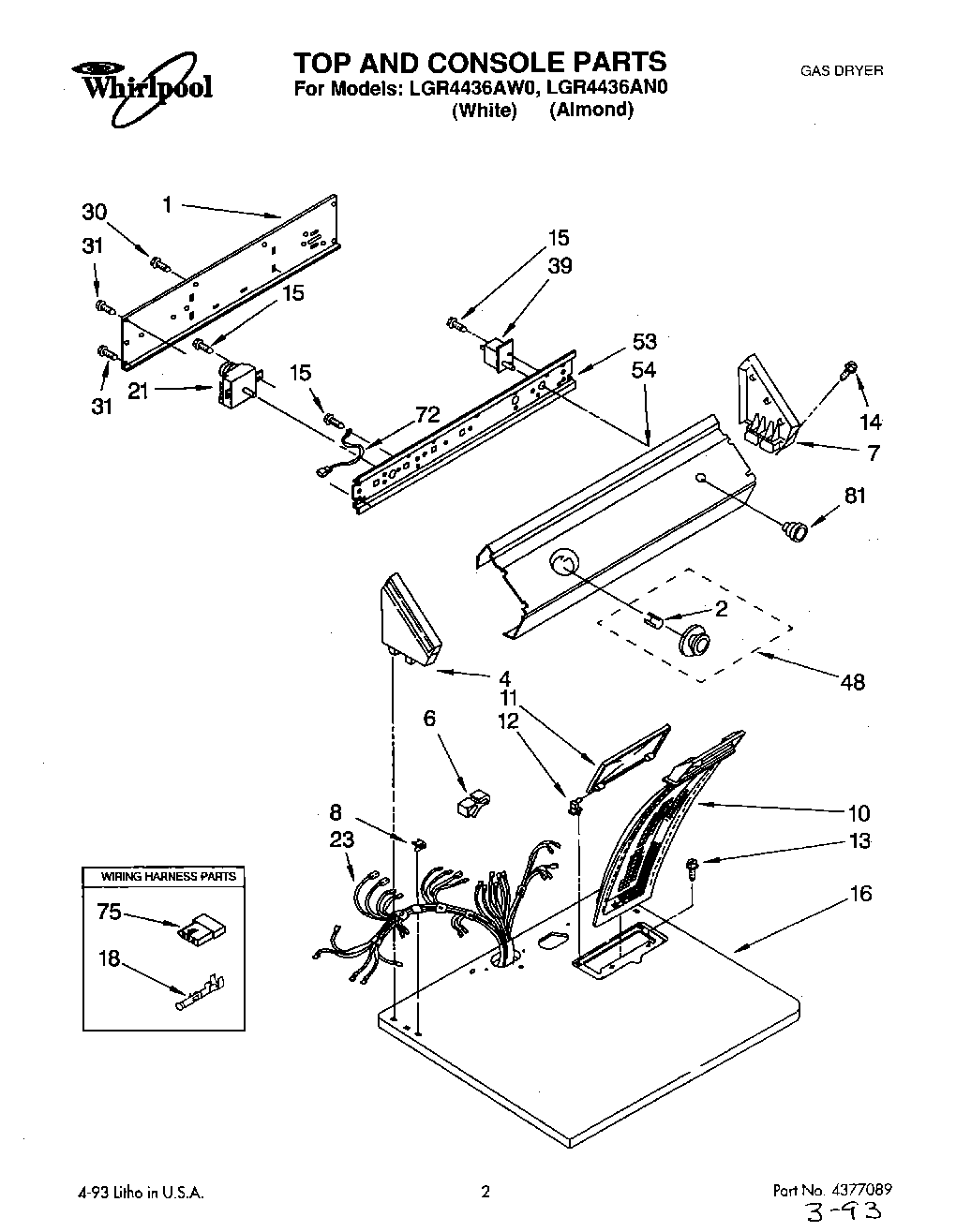

LGR4436AW0 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGR4436AW0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGR4436AW0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Dryer
Use & Care Guide
Almond (Uncut)
Leveler (Thinner)
WP72107 Whirlpool Touchup
Instructions, Installation
799344 Whirlpool Refrigerator Paint
List, Service Parts
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
1Panel, Rear Console
2WP688805 Whirlpool Spring Clip
4Cap, End (L.H.) (Almond)
4Cap, End (L.H.) (White)
6Clip, Retainer
7Cap, End (R.H.) (Almond)
7Cap, End (R.H.) (White)
8WP357213 Whirlpool Hinge Stopper
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15WPW10139210 Whirlpool Screw
16Top (Almond)
16Top (White)
21Timer Assembly, 60 Hz.
23Harness, Wiring
30WP693995 Whirlpool Screw
31WP489069 Whirlpool Compactor Screw
39Switch, Push-To-Start
48WP3957752 Whirlpool Knob
53Bracket, Control
54Panel, Control (White)
54Panel, Control (Almond)
72Wire, Ground
75WP94614 Whirlpool Terminal
75Receptacle, 3-Way Terminal (Use W/94614)
81Knob, Push To Start
