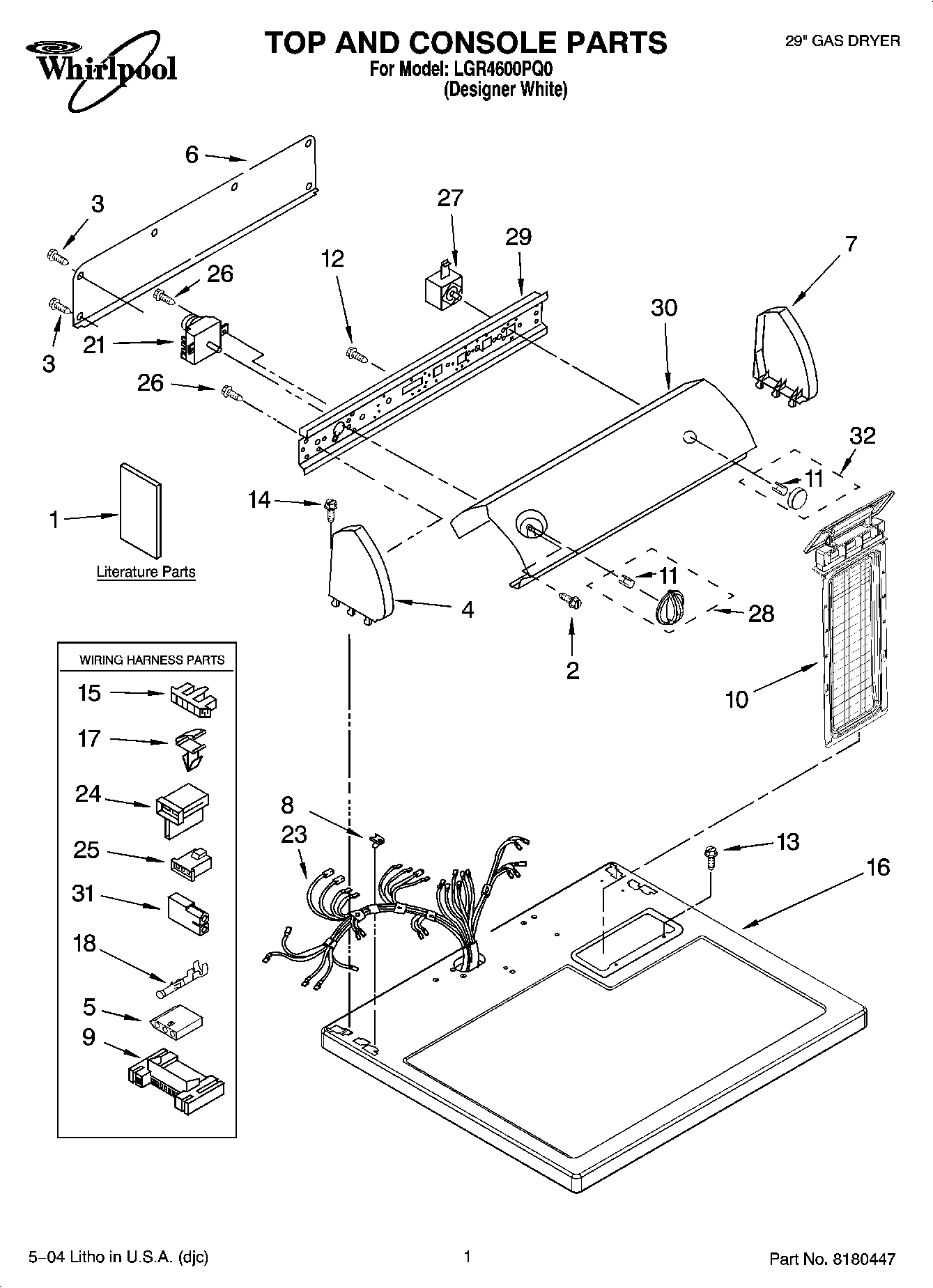

LGR4600PQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Use & Care Guide
1	Wiring Diagram
1	DO-IT-YOURSELF REPAIR MANUALS
1	WPL 677818
1	Following May Be Purchased
1	Sheet, Cycle Feature
1	Instructions, Installation
2	3400859 Whirlpool Screw
3	WP693995 Whirlpool Screw
5	3936144 Whirlpool Connector
6	W10103406 Whirlpool Rear Panel
7	W10820038 Whirlpool Endcap
8	WP357213 Whirlpool Hinge Stopper
9	3395683 Whirlpool Connector
10	W10874409 Whirlpool Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP90767 Whirlpool Screw
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	Connector, Timer
16	Top
17	WP3394427 Whirlpool Clip
18	WP94614 Whirlpool Terminal
21	WP3976584 Whirlpool Timer Assembly
23	Harness, Wiring
24	WP3403499 Whirlpool Connector
25	WP3403498 Whirlpool Connector
26	WPW10139210 Whirlpool Screw
27	WP3977456 Whirlpool Start Switch
28	W10756270 Whirlpool Dryer Timer Knob
29	Bracket, Control
30	Panel, Control
31	Receptacle, Latching (2-Way) (Uses Terminal 94614)
32	WP689790 Whirlpool Dryer Rack
32	350938 Whirlpool Spray Gun
32	72017 Whirlpool Appliance Touch-Up Paint White
32	WP8544939 Whirlpool Knob Assembly
32	KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
32	799344 Whirlpool Refrigerator Paint
32	350930 Whirlpool White Spray Paint
32	4392065 Whirlpool Dryer Maintenance Kit
32	W11224254 Whirlpool Test Kit
32	ACCESSORY PARTS
