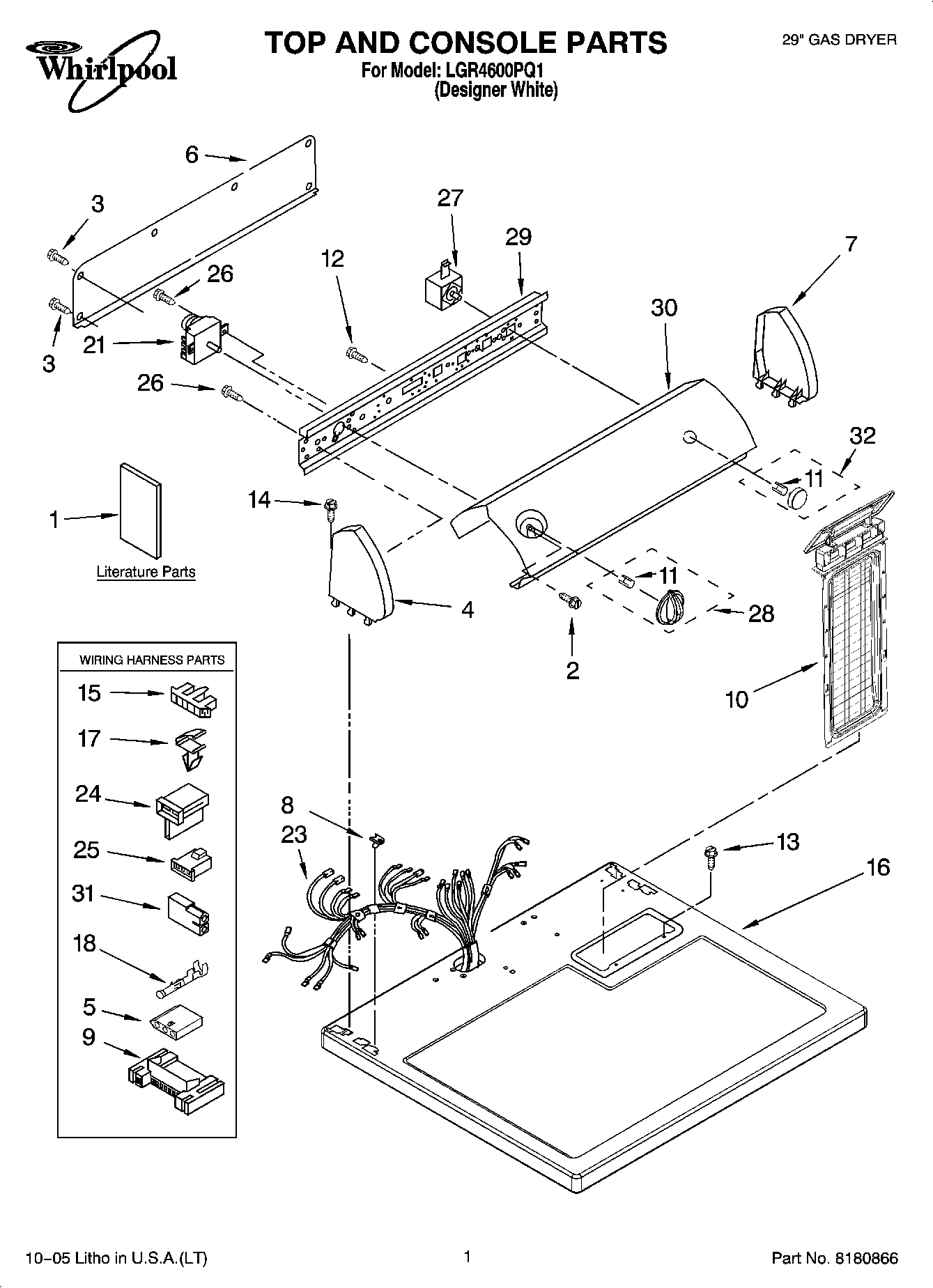

LGR4600PQ1 01 – TOP AND CONSOLE PARTS

LGR4600PQ1 01 – TOP AND CONSOLE PARTS

Written by

in

LGR4600PQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1DO-IT-YOURSELF REPAIR MANUALS
1WPL 677818
1Sheet, Cycle Feature
1Instructions, Installation
1Wiring Diagram
1Following May Be Purchased
1Use & Care Guide
23400859 Whirlpool Screw
3WP693995 Whirlpool Screw
53936144 Whirlpool Connector
6W10103406 Whirlpool Rear Panel
7W10820038 Whirlpool Endcap
8WP357213 Whirlpool Hinge Stopper
93395683 Whirlpool Connector
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15Connector, Timer
16Top
17WP3394427 Whirlpool Clip
18WP94614 Whirlpool Terminal
21WP3976584 Whirlpool Timer Assembly
23Harness, Wiring
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
26WP90767 Whirlpool Screw
27WP3977456 Whirlpool Start Switch
28W10756270 Whirlpool Dryer Timer Knob
29Bracket, Control
30Panel, Control
31Receptacle, Latching (2-Way) (Uses Terminal 94614)
32WP8544939 Whirlpool Knob Assembly
