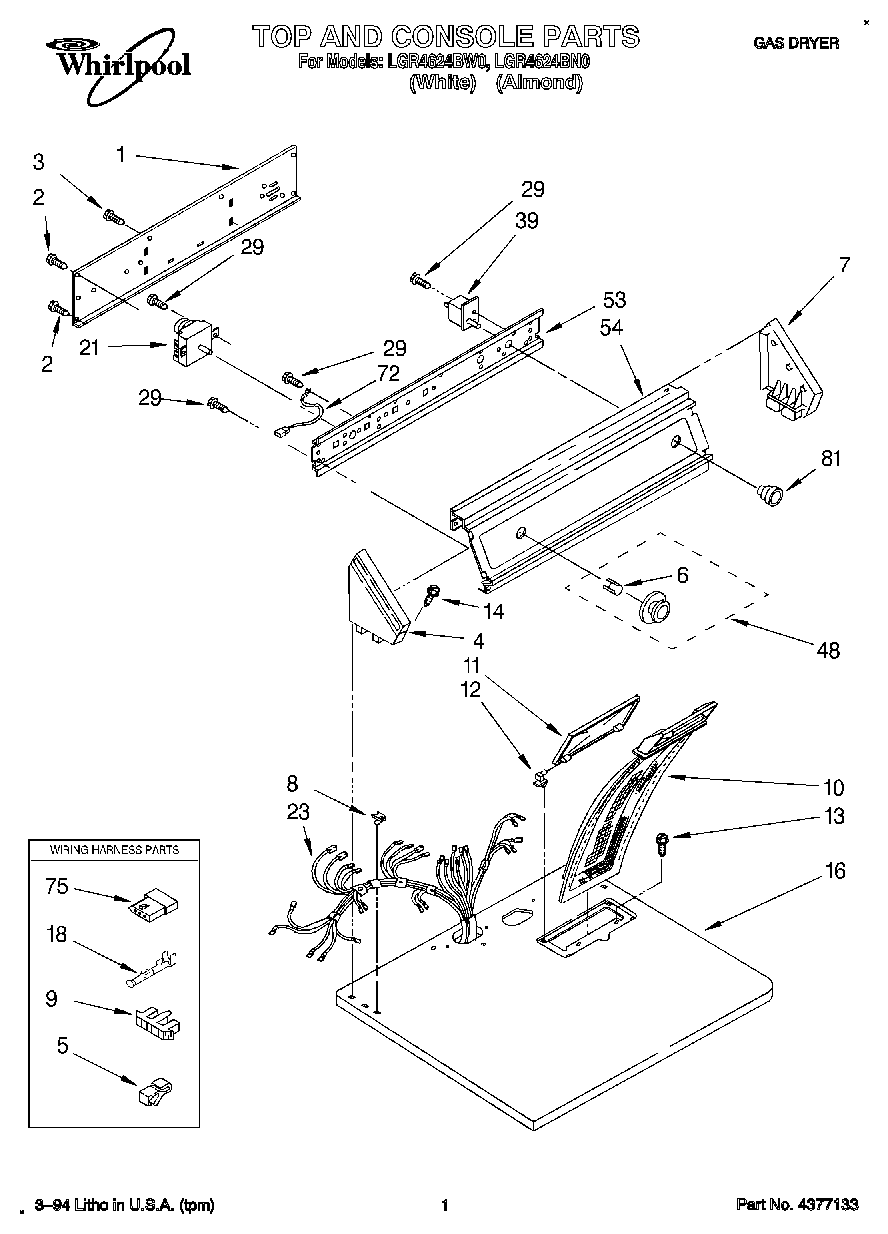

LGR4624BN0 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGR4624BN0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGR4624BN0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Label, Wiring Diagram
Guide, Use & Care
Instructions, Installation
Almond (Uncut)
Leveler (Thinner)
Dryer
799344 Whirlpool Refrigerator Paint
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
WP72107 Whirlpool Touchup
1Panel, Rear Console
2WP489069 Whirlpool Compactor Screw
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Almond)
5Clip, Retainer
6WP688805 Whirlpool Spring Clip
7Cap, End (R.H.) (White)
7Cap, End (R.H.) (Almond)
8WP357213 Whirlpool Hinge Stopper
9Connector, Timer
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
16Top (Almond)
16Top (White)
18WP94614 Whirlpool Terminal
21WP3976568 Whirlpool Timer
23Harness, Wiring
29WPW10139210 Whirlpool Screw
39Switch, Push-To-Start
39(Alt.)
48WP3957752 Whirlpool Knob
53Bracket, Control
54Panel, Control (White)
54Panel, Control (Almond)
72Wire, Ground
75Receptacle, 3-Way Terminal (Use W/94614)
81Knob, Push To Start
