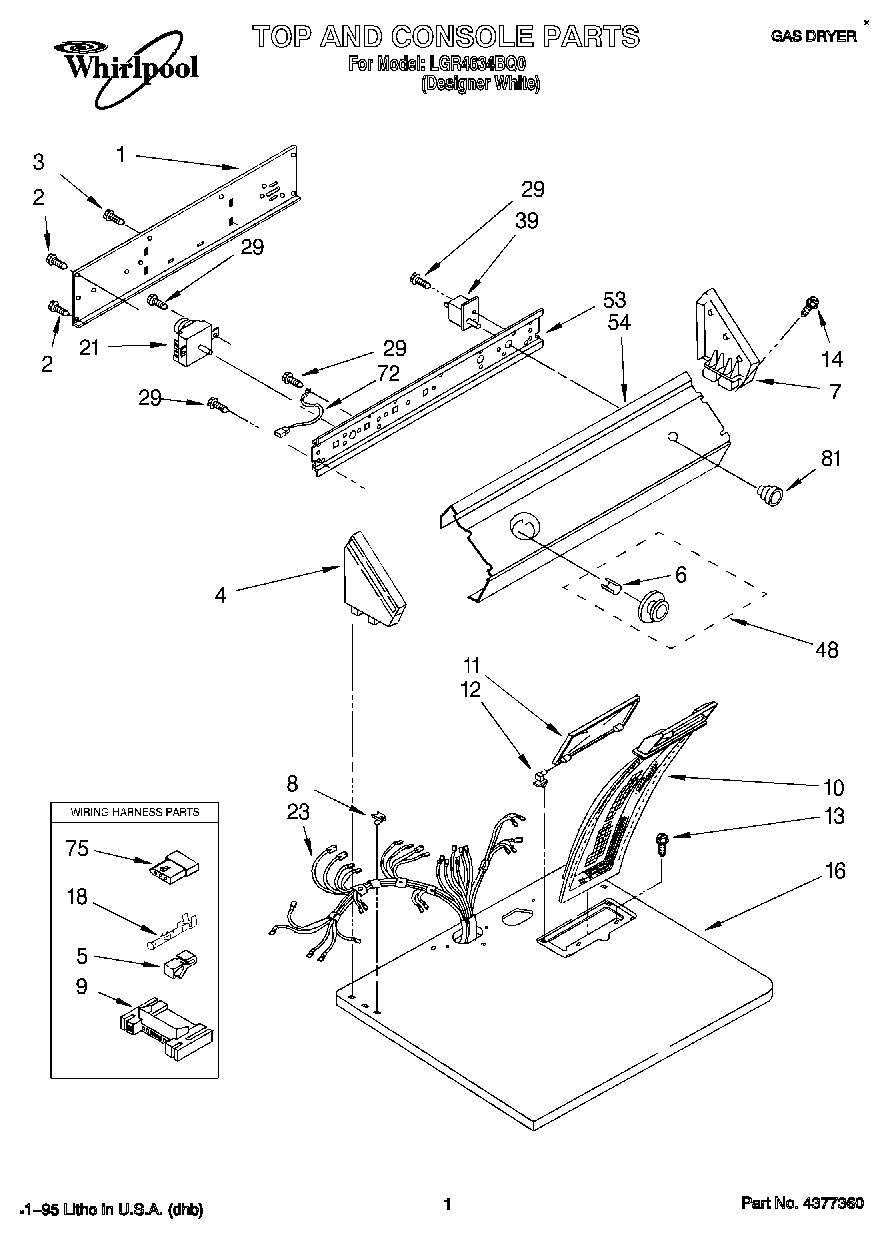

LGR4634BQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGR4634BQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGR4634BQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Dryer
Instructions, Installation
Label, Wiring Diagram
Leveler (Thinner)
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
Guide, Use & Care
1Panel, Rear Console
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (White)
5Clip, Retainer
6WP688805 Whirlpool Spring Clip
7Cap, End (R.H.) (White)
8WP357213 Whirlpool Hinge Stopper
93395683 Whirlpool Connector
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
16Top (White)
18WP94614 Whirlpool Terminal
21WP3976569 Whirlpool Timer
23Harness, Wiring
29WPW10139210 Whirlpool Screw
39(Alt.)
39WP3395382 Whirlpool Push To Start Switch
48WP3957752 Whirlpool Knob
53Bracket, Control
54Panel, Control
72Wire, Ground
75Receptacle, 3-Way Terminal (Use W/94614)
81WP3957800 Whirlpool Knob
