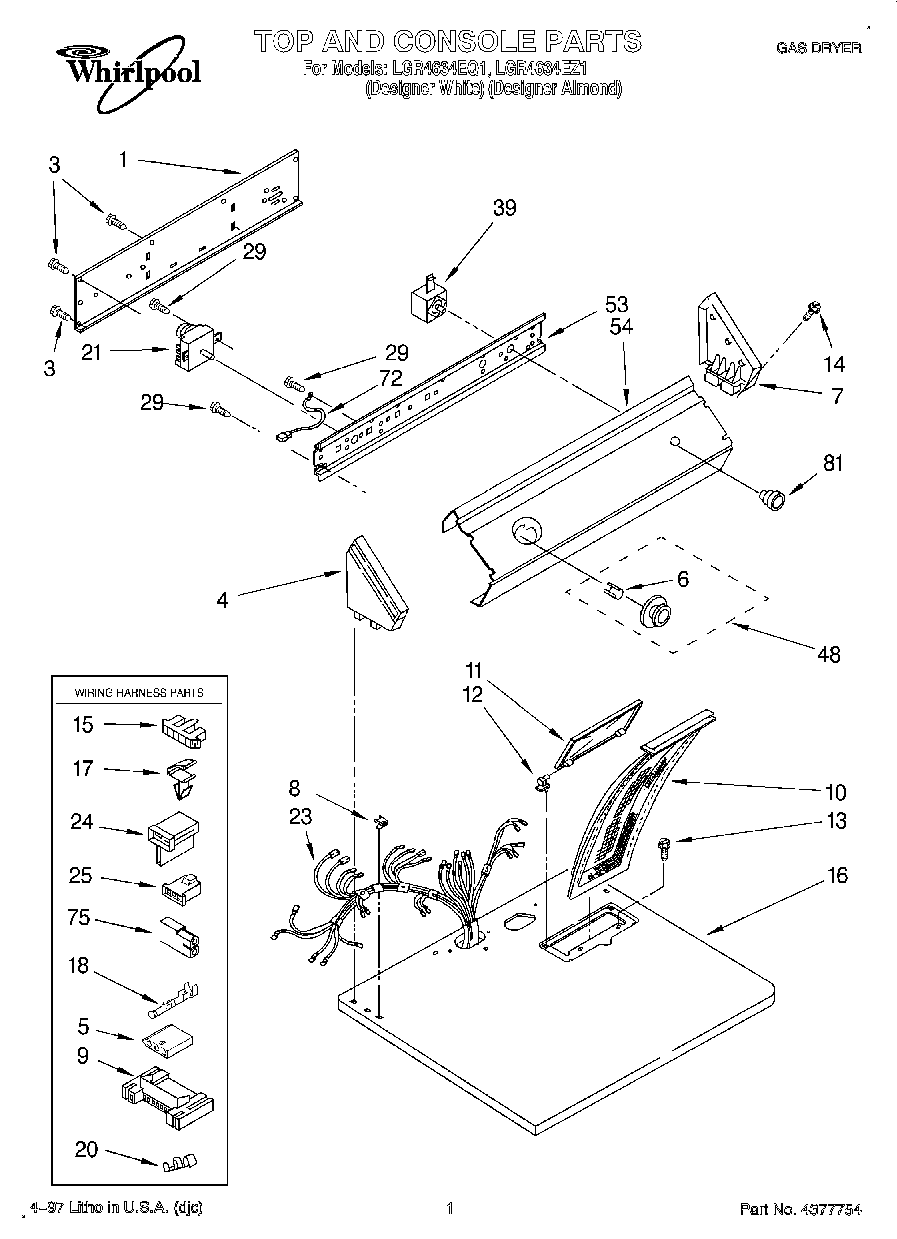

LGR4634EQ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Instructions, Door Reversing
	WPL LIT3406071
	Dryer
	Instructions, Installation
	Label, Warning
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	350938 Whirlpool Spray Gun
	Label, Wiring Diagram
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
1	Panel, Rear Console
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.)
4	Cap, End (L.H.) (Almond)
5	Connector (Door Switch)
6	WP688805 Whirlpool Spring Clip
7	Cap, End (R.H.)
7	Cap, End (R.H.) (Almond)
8	WP357213 Whirlpool Hinge Stopper
9	3395683 Whirlpool Connector
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	Connector, Timer
16	Top (Almond)
16	Top (White)
17	WP3394427 Whirlpool Clip
18	WP94614 Whirlpool Terminal
20	W10113937 Whirlpool Clamp
21	WP3976569 Whirlpool Timer
23	Harness, Wiring
24	WP3403499 Whirlpool Connector
25	WP3403498 Whirlpool Connector
29	WPW10139210 Whirlpool Screw
39	WP3395382 Whirlpool Push To Start Switch
48	WP3957752 Whirlpool Knob
48	3957753 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
72	Wire, Ground
75	Receptacle, Latching (2-Way) (Uses Terminal 94614)
81	WP3957800 Whirlpool Knob
