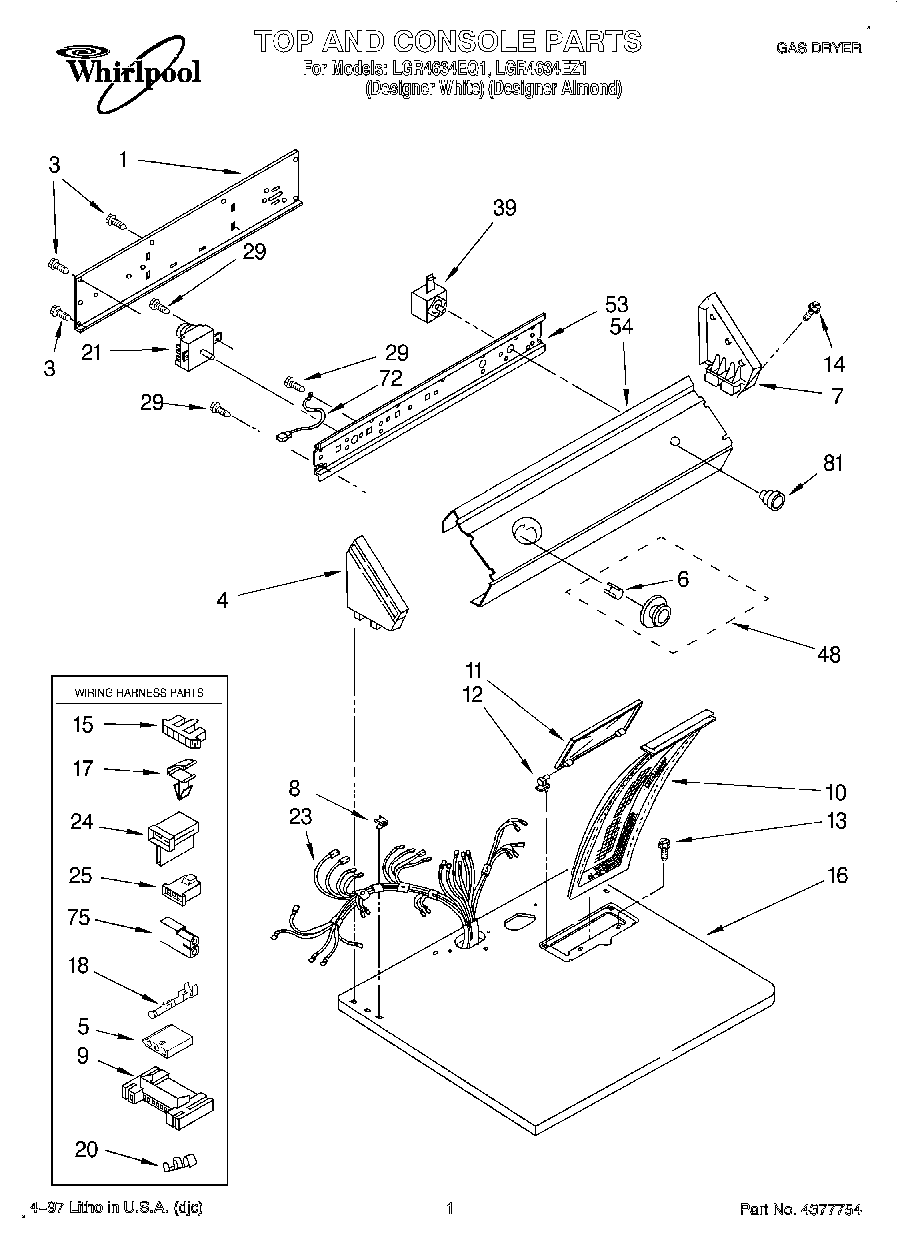

LGR4634EZ1 01 – TOP AND CONSOLE, LIT/OPTIONALadmin2025-04-26T11:13:55+00:00LGR4634EZ1 01 – TOP AND CONSOLE, LIT/OPTIONAL
Products
| Position | Product |
|---|
| 350930 Whirlpool White Spray Paint |
| Instructions, Door Reversing |
| WPL LIT3406071 |
| Dryer |
| Instructions, Installation |
| Label, Warning |
| Almond (Uncut) |
| WP72107 Whirlpool Touchup |
| 799344 Whirlpool Refrigerator Paint |
| 350938 Whirlpool Spray Gun |
| Label, Wiring Diagram |
| 350956 Whirlpool Spray Assembly |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| 1 | Panel, Rear Console |
| 3 | WP693995 Whirlpool Screw |
| 4 | Cap, End (L.H.) |
| 4 | Cap, End (L.H.) (Almond) |
| 5 | Connector (Door Switch) |
| 6 | WP688805 Whirlpool Spring Clip |
| 7 | Cap, End (R.H.) |
| 7 | Cap, End (R.H.) (Almond) |
| 8 | WP357213 Whirlpool Hinge Stopper |
| 9 | 3395683 Whirlpool Connector |
| 10 | 339392V Whirlpool Dryer Lint Filter Screen |
| 11 | Cover, Lint Screen (Almond) |
| 11 | Cover, Lint Screen (White) |
| 12 | WPW10044470 Whirlpool Hinge Assembly |
| 12 | WPW10044480 Whirlpool Hinge Assembly |
| 13 | W11693756 Whirlpool Screw Assembly |
| 14 | WP388326 Whirlpool Screw |
| 15 | Connector, Timer |
| 16 | Top (Almond) |
| 16 | Top (White) |
| 17 | WP3394427 Whirlpool Clip |
| 18 | WP94614 Whirlpool Terminal |
| 20 | W10113937 Whirlpool Clamp |
| 21 | WP3976569 Whirlpool Timer |
| 23 | Harness, Wiring |
| 24 | WP3403499 Whirlpool Connector |
| 25 | WP3403498 Whirlpool Connector |
| 29 | WPW10139210 Whirlpool Screw |
| 39 | WP3395382 Whirlpool Push To Start Switch |
| 48 | WP3957752 Whirlpool Knob |
| 48 | 3957753 Whirlpool Knob |
| 53 | Bracket, Control |
| 54 | Panel, Control (White) |
| 54 | Panel, Control (Almond) |
| 72 | Wire, Ground |
| 75 | Receptacle, Latching (2-Way) (Uses Terminal 94614) |
| 81 | WP3957800 Whirlpool Knob |
