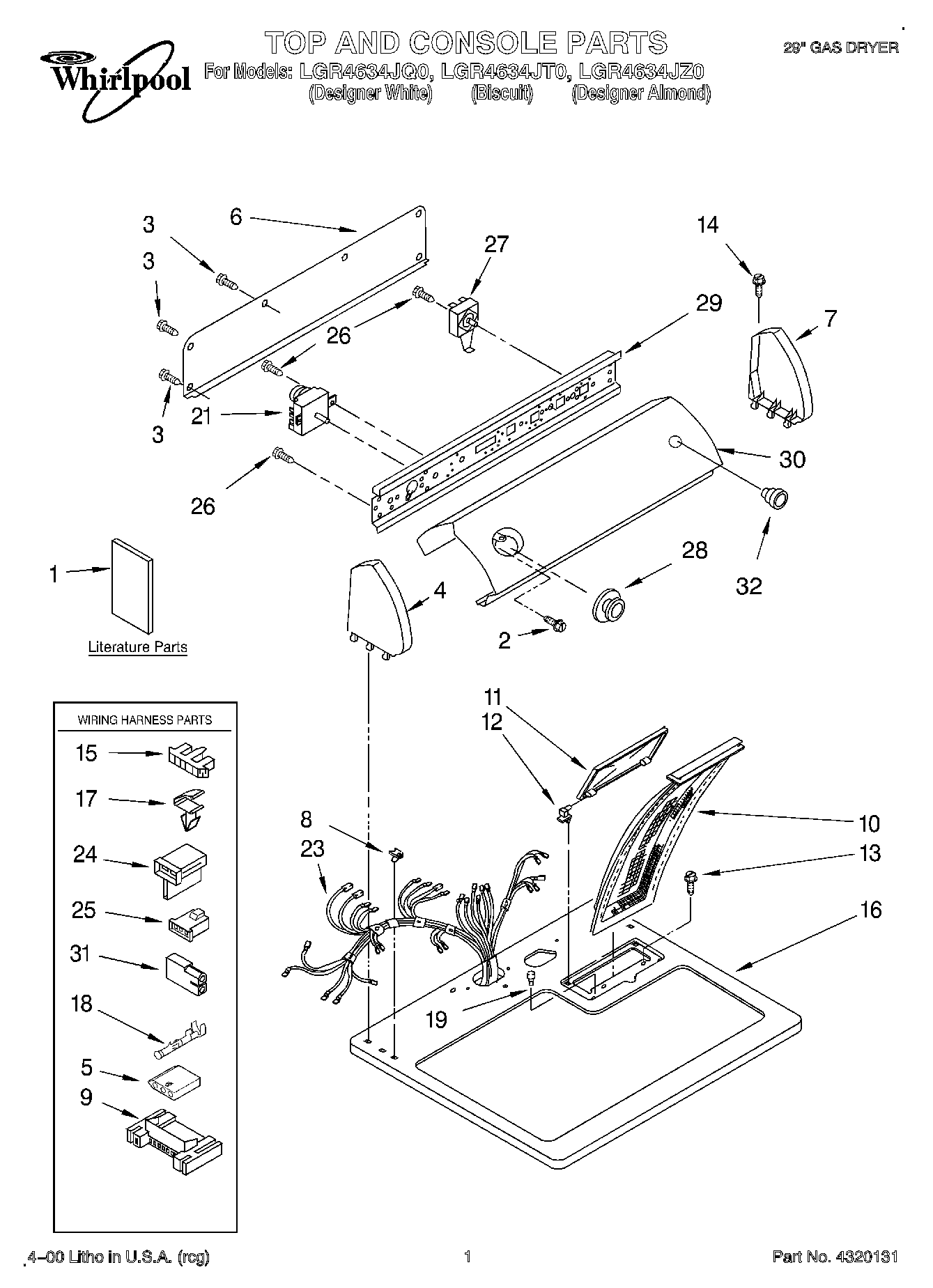

LGR4634JZ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGR4634JZ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGR4634JZ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
Dryer
1Literature Parts (Use And care Guide)
1Literature Parts (Wiring Diagram)
1Literature Parts (Installation Instructions)
23400859 Whirlpool Screw
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (Almond)
4Cap, End (L.H.) (BIscuit)
53936144 Whirlpool Connector
6W10103406 Whirlpool Rear Panel
7W10820038 Whirlpool Endcap
7WPL 8271362
7Cap, End (R.H.) (Almond)
8WP357213 Whirlpool Hinge Stopper
93395683 Whirlpool Connector
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Biscuit)
11Cover, Lint Screen
11Cover, Lint Screen (Almond)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15Connector, Timer
16Top
16Top (Almond)
16Top (Biscuit)
17WP3394427 Whirlpool Clip
18WP94614 Whirlpool Terminal
19Bumper, Lint Lid
21WP3976584 Whirlpool Timer Assembly
23Harness, Wiring
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
26WPW10139210 Whirlpool Screw
27WP3395382 Whirlpool Push To Start Switch
28WP3957754 Whirlpool Knob Assembly
28WP3957755 Whirlpool Knob
29Bracket, Control
30Panel, Control (White)
30Panel, Control (Almond)
30Panel, Control (Biscuit)
31Receptacle, Latching (2-Way) (Uses Terminal 94614)
32350938 Whirlpool Spray Gun
32350956 Whirlpool Spray Assembly
3272017 Whirlpool Appliance Touch-Up Paint White
32WP72107 Whirlpool Touchup
32Almond (Uncut)
32350930 Whirlpool White Spray Paint
32799344 Whirlpool Refrigerator Paint
324392899 Whirlpool Biscuit Touch-Up Paint
324392901 Whirlpool Biscuit Spray Paint
32PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
32WPL 8271349
323957804 Whirlpool Knob
32WPL 8271342
