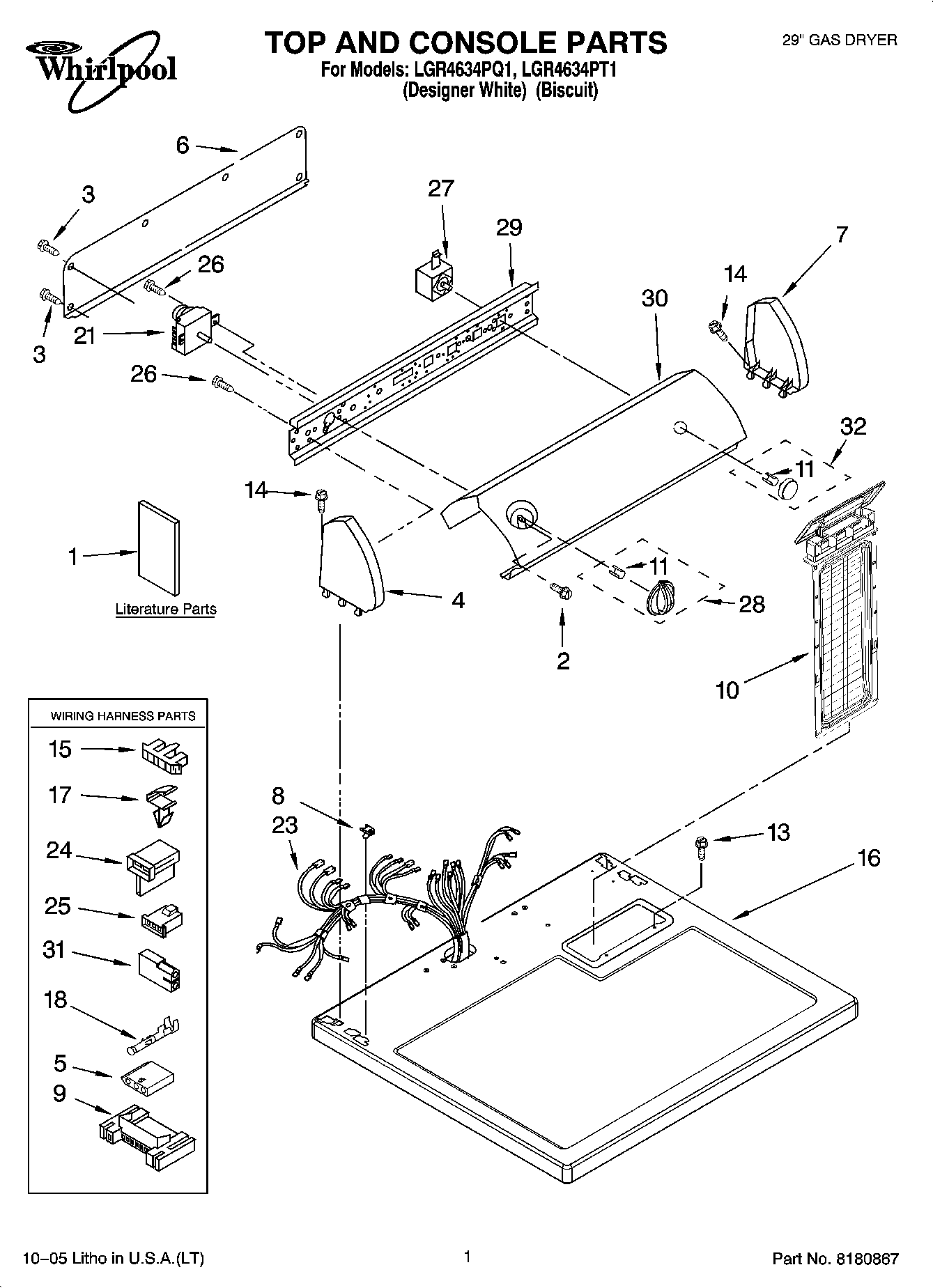

LGR4634PQ1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	DO-IT-YOURSELF REPAIR MANUALS
1	Instructions, Installation
1	WPL 677818
1	Wiring Diagram
1	Use & Care Guide
1	Sheet, Cycle Feature
1	Following May Be Purchased
2	3400859 Whirlpool Screw
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.) (BIscuit)
5	3936144 Whirlpool Connector
6	W10103406 Whirlpool Rear Panel
7	WPL 8271362
7	W10820038 Whirlpool Endcap
8	WP357213 Whirlpool Hinge Stopper
9	3395683 Whirlpool Connector
10	W10874409 Whirlpool Lint Screen Filter
10	WP8557862 Whirlpool Screen
11	WP8536939 Whirlpool Spring Clip
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	Connector, Timer
16	Top
16	Top
17	WP3394427 Whirlpool Clip
18	WP94614 Whirlpool Terminal
21	WP3976584 Whirlpool Timer Assembly
23	Harness, Wiring
24	WP3403499 Whirlpool Connector
25	WP3403498 Whirlpool Connector
26	WP90767 Whirlpool Screw
27	WP3977456 Whirlpool Start Switch
28	W10756270 Whirlpool Dryer Timer Knob
28	Timer Knob Assembly (Biscuit)
29	Bracket, Control
30	Panel, Control (Biscuit)
30	Panel, Control (White)
31	Receptacle, Latching (2-Way) (Uses Terminal 94614)
32	WP8544939 Whirlpool Knob Assembly
32	WP8544941 Whirlpool Knob
