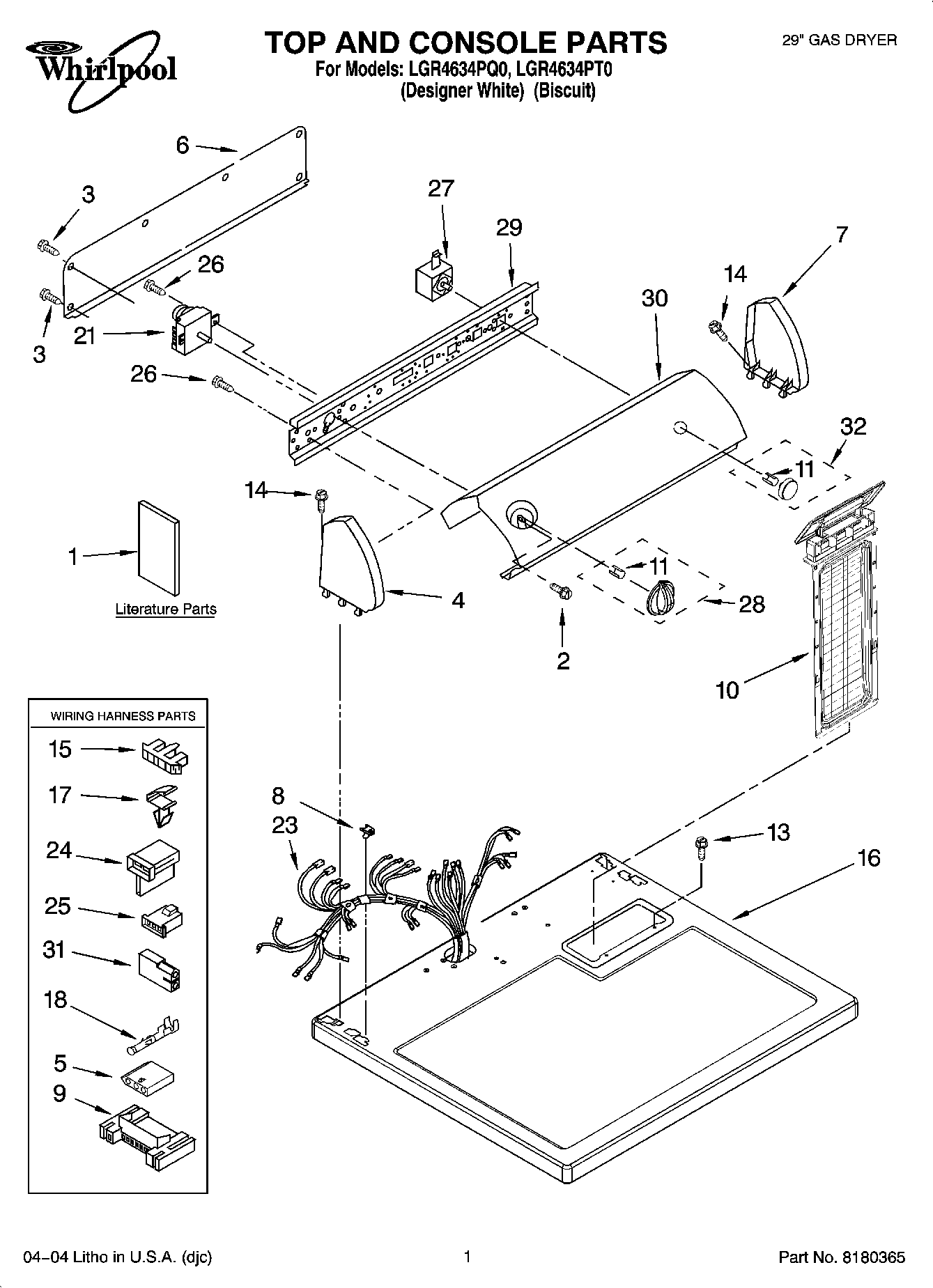

LGR4634PT0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Literature Parts (Installation Instructions)
1Literature Parts (Wiring Diagram)
1Literature Parts (Sheet, Cycle Feature)
1Literature Parts (Use & Care Guide)
1Dryer
1Following May Be Purchased
1DO-IT-YOURSELF REPAIR MANUALS
23400859 Whirlpool Screw
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (BIscuit)
53936144 Whirlpool Connector
6W10103406 Whirlpool Rear Panel
7W10820038 Whirlpool Endcap
7WPL 8271362
8WP357213 Whirlpool Hinge Stopper
93395683 Whirlpool Connector
10WP8557862 Whirlpool Screen
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15Connector, Timer
16Top
16Top
17WP3394427 Whirlpool Clip
18WP94614 Whirlpool Terminal
21WP3976584 Whirlpool Timer Assembly
23Harness, Wiring
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
26WPW10139210 Whirlpool Screw
27WP3977456 Whirlpool Start Switch
28Timer Knob Assembly (Biscuit)
28W10756270 Whirlpool Dryer Timer Knob
29Bracket, Control
30Panel, Control (Biscuit)
30Panel, Control (White)
31Receptacle, Latching (2-Way) (Uses Terminal 94614)
32350938 Whirlpool Spray Gun
3272017 Whirlpool Appliance Touch-Up Paint White
32WP8544941 Whirlpool Knob
32WP8544939 Whirlpool Knob Assembly
32350930 Whirlpool White Spray Paint
32799344 Whirlpool Refrigerator Paint
32KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
324392899 Whirlpool Biscuit Touch-Up Paint
324392901 Whirlpool Biscuit Spray Paint
32PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
324392065 Whirlpool Dryer Maintenance Kit
32W11224254 Whirlpool Test Kit
32WP689790 Whirlpool Dryer Rack
32WPL ARI156940A
