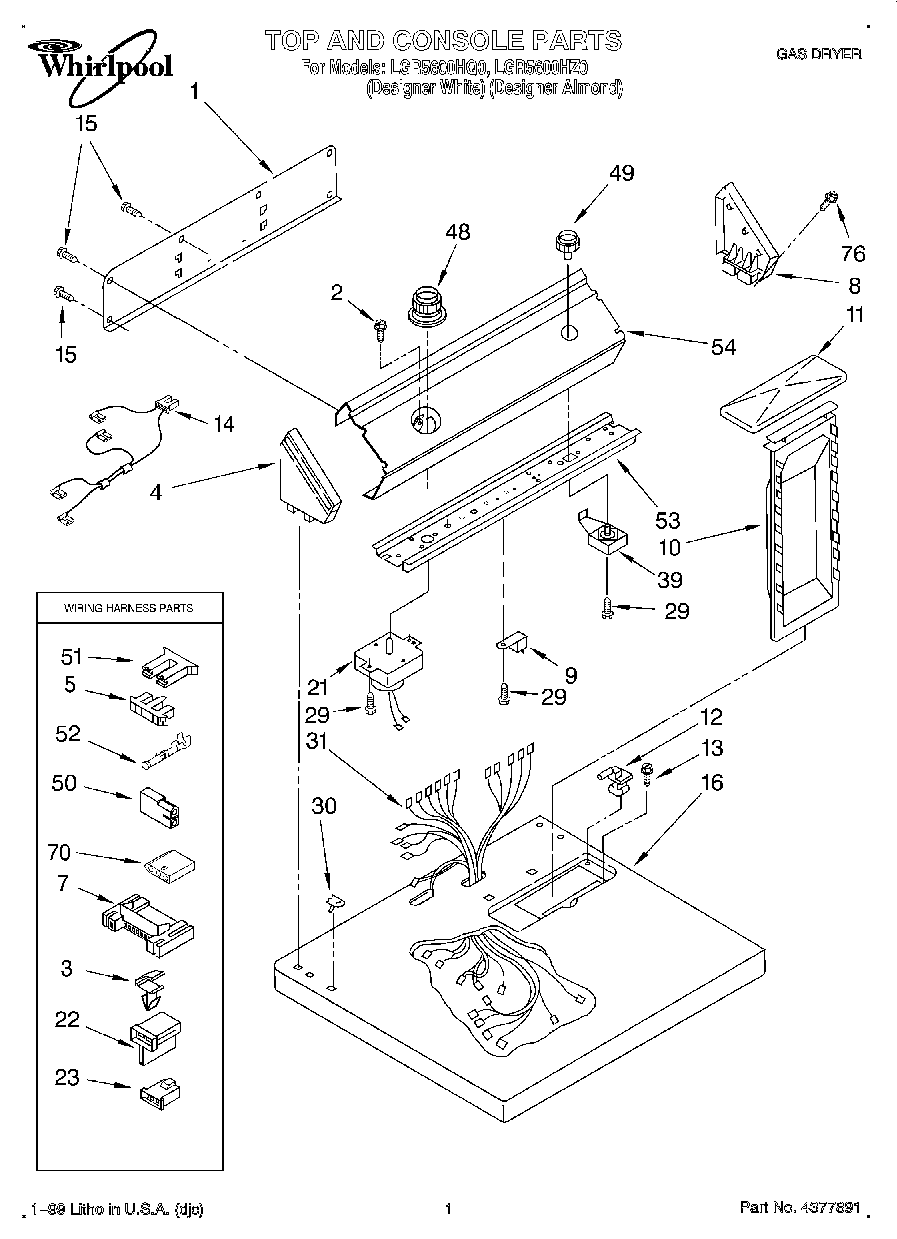

LGR5600HQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	WPL LIT3406071
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	Instructions, Installation
	Label, Wiring Diagram
	Dryer
1	Panel, Rear Console
2	3400859 Whirlpool Screw
3	WP3394427 Whirlpool Clip
4	Cap, End (L.H.)
4	Cap, End (L.H.) (Almond)
5	Connector, Timer
7	3395683 Whirlpool Connector
8	Cap, End (R.H.) (Almond)
8	Cap, End (R.H.)
9	WP694419 Whirlpool Buzzer Adjuster
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Wire, Jumper
15	WP693995 Whirlpool Screw
16	Top (Almond)
16	Top (White)
21	WP3976569 Whirlpool Timer
22	WP3403499 Whirlpool Connector
23	WP3403498 Whirlpool Connector
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	Switch, Push-To-Start
48	3957753 Whirlpool Knob
48	WP3957752 Whirlpool Knob
49	WP3957796 Whirlpool Knob
49	3957797 Whirlpool Knob
50	Receptacle, Latching (2-Way) (Uses Terminal 94614)
51	3354925 Whirlpool Connector
52	WP94614 Whirlpool Terminal
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
70	3936144 Whirlpool Connector
76	WP388326 Whirlpool Screw
