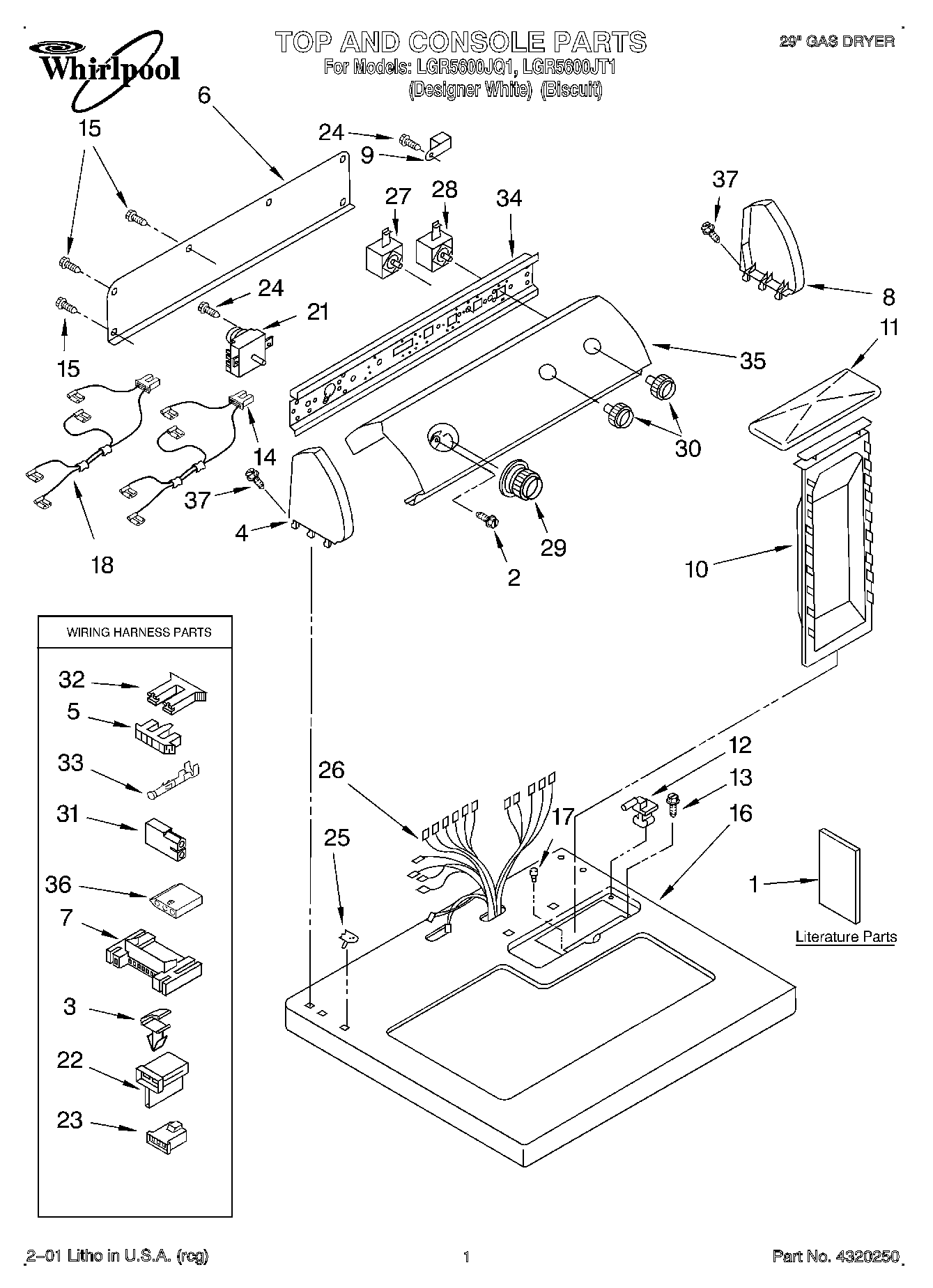

LGR5600JQ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGR5600JQ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGR5600JQ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
Dryer
1Literature Parts (Guide, Use & Care)
1Label, Wiring Diagram
1Literature Parts (Instructions, Installation)
23400859 Whirlpool Screw
3WP3394427 Whirlpool Clip
4Cap, End (L.H.) (BIscuit)
5Connector, Timer
6W10103406 Whirlpool Rear Panel
73395683 Whirlpool Connector
8W10820038 Whirlpool Endcap
8WPL 8271362
9WP694419 Whirlpool Buzzer Adjuster
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Biscuit)
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Wire, Jumper
15WP693995 Whirlpool Screw
16Top (Biscuit)
16Top
17Bumper, Lint Lid
188283286 Whirlpool Wire Harness
21WP3976575 Whirlpool Timer
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
24WPW10139210 Whirlpool Screw
25WP357213 Whirlpool Hinge Stopper
26Harness, Wiring
273399638 Whirlpool Switch
28Switch, Push-To-Start
29WP3957754 Whirlpool Knob Assembly
29WP3957755 Whirlpool Knob
30WP3957799 Whirlpool Knob
303957797 Whirlpool Knob
31Receptacle, Latching (2-Way) (Uses Terminal 94614)
323354925 Whirlpool Connector
33WP94614 Whirlpool Terminal
34Bracket, Control
35Panel, Control (White)
35Panel, Control (Biscuit)
363936144 Whirlpool Connector
374392899 Whirlpool Biscuit Touch-Up Paint
37PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
37350938 Whirlpool Spray Gun
3772017 Whirlpool Appliance Touch-Up Paint White
37350930 Whirlpool White Spray Paint
37799344 Whirlpool Refrigerator Paint
373404351 Whirlpool Dryer Rack
374392901 Whirlpool Biscuit Spray Paint
37WP388326 Whirlpool Screw
