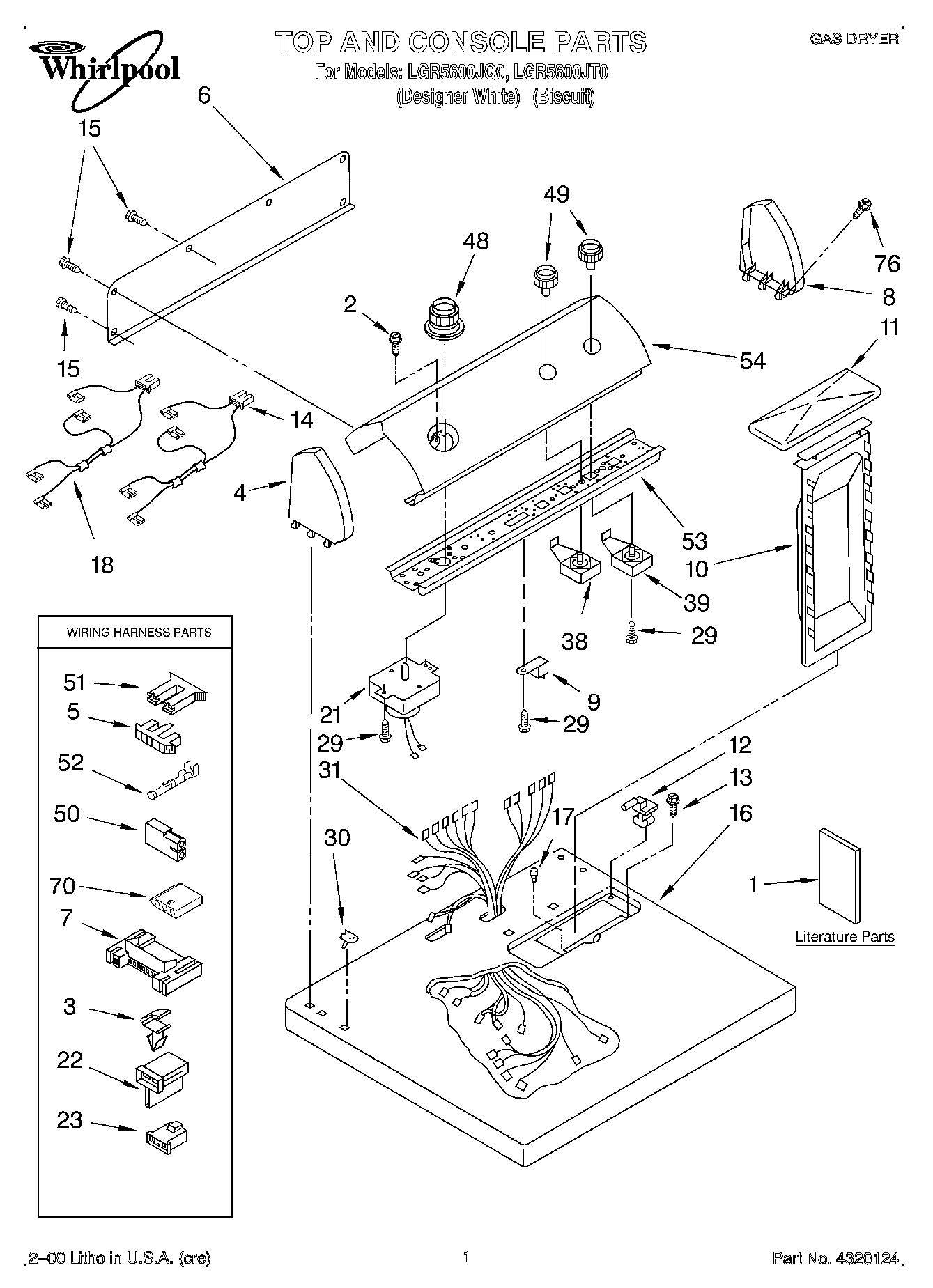

LGR5600JT0 01 – TOP AND CONSOLE, LITERATURE

Products

PositionProduct
Dryer
1Label, Wiring Diagram
1Instructions, Installation
1Literature Parts (Guide, Use & Care)
23400859 Whirlpool Screw
3WP3394427 Whirlpool Clip
4Cap, End (L.H.) (BIscuit)
5Connector, Timer
6W10103406 Whirlpool Rear Panel
73395683 Whirlpool Connector
8WPL 8271362
8W10820038 Whirlpool Endcap
9WP694419 Whirlpool Buzzer Adjuster
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Biscuit)
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Wire, Jumper
15WP693995 Whirlpool Screw
16Top
16Top (Biscuit)
17Bumper, Lint Lid
188283286 Whirlpool Wire Harness
21WP3976575 Whirlpool Timer
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
383399638 Whirlpool Switch
39Switch, Push-To-Start
48WP3957754 Whirlpool Knob Assembly
48WP3957755 Whirlpool Knob
49WP3957799 Whirlpool Knob
493957797 Whirlpool Knob
50Receptacle, Latching (2-Way) (Uses Terminal 94614)
513354925 Whirlpool Connector
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control (White)
54Panel, Control (Biscuit)
703936144 Whirlpool Connector
7672017 Whirlpool Appliance Touch-Up Paint White
764392901 Whirlpool Biscuit Spray Paint
764392899 Whirlpool Biscuit Touch-Up Paint
76WP388326 Whirlpool Screw
76350930 Whirlpool White Spray Paint
76350938 Whirlpool Spray Gun
76799344 Whirlpool Refrigerator Paint
76PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
