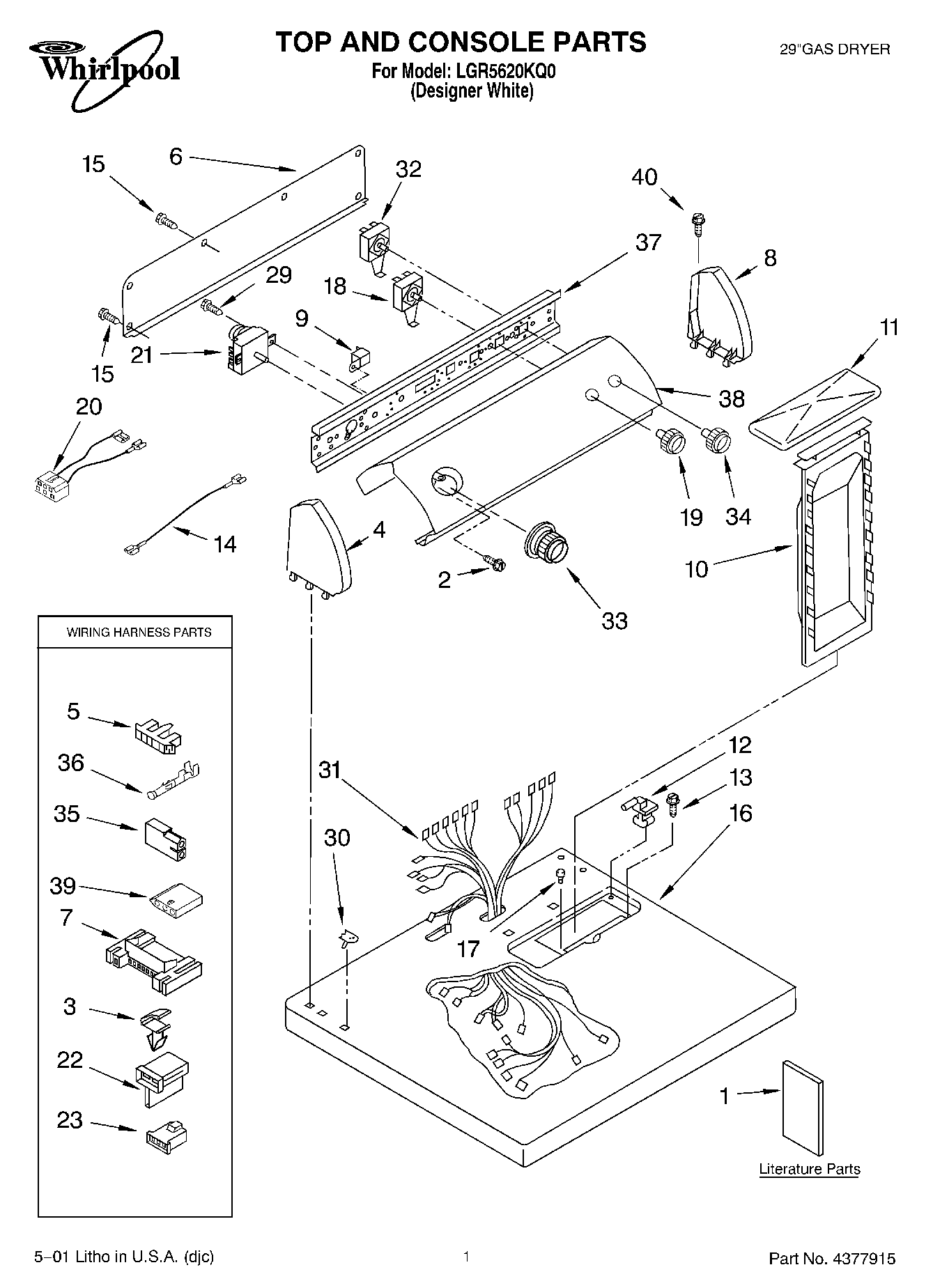

LGR5620KQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	Dryer
1	Label, Wiring Diagram
1	Literature Parts (Guide, Use & Care)
1	Literature Parts (Instructions, Installation)
2	3400859 Whirlpool Screw
3	WP3394427 Whirlpool Clip
5	Connector, Timer
6	W10103406 Whirlpool Rear Panel
7	3395683 Whirlpool Connector
8	W10820038 Whirlpool Endcap
9	WP694419 Whirlpool Buzzer Adjuster
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Wire, Jumper (Black)
15	WP693995 Whirlpool Screw
16	Top
17	Bumper, Lint Lid
18	3405152 Whirlpool Switch Assembly
19	WP3957799 Whirlpool Knob
20	Wire, Jumper (Guard On/Off)
21	WP3976584 Whirlpool Timer Assembly
22	WP3403499 Whirlpool Connector
23	WP3403498 Whirlpool Connector
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	WP3977456 Whirlpool Start Switch
33	WP3957754 Whirlpool Knob Assembly
34	3957804 Whirlpool Knob
35	Receptacle, Latching (2-Way) (Uses Terminal 94614)
36	WP94614 Whirlpool Terminal
37	Bracket, Control
38	Panel, Control
39	3936144 Whirlpool Connector
40	3404351 Whirlpool Dryer Rack
40	350938 Whirlpool Spray Gun
40	72017 Whirlpool Appliance Touch-Up Paint White
40	799344 Whirlpool Refrigerator Paint
40	350930 Whirlpool White Spray Paint
40	WP388326 Whirlpool Screw
