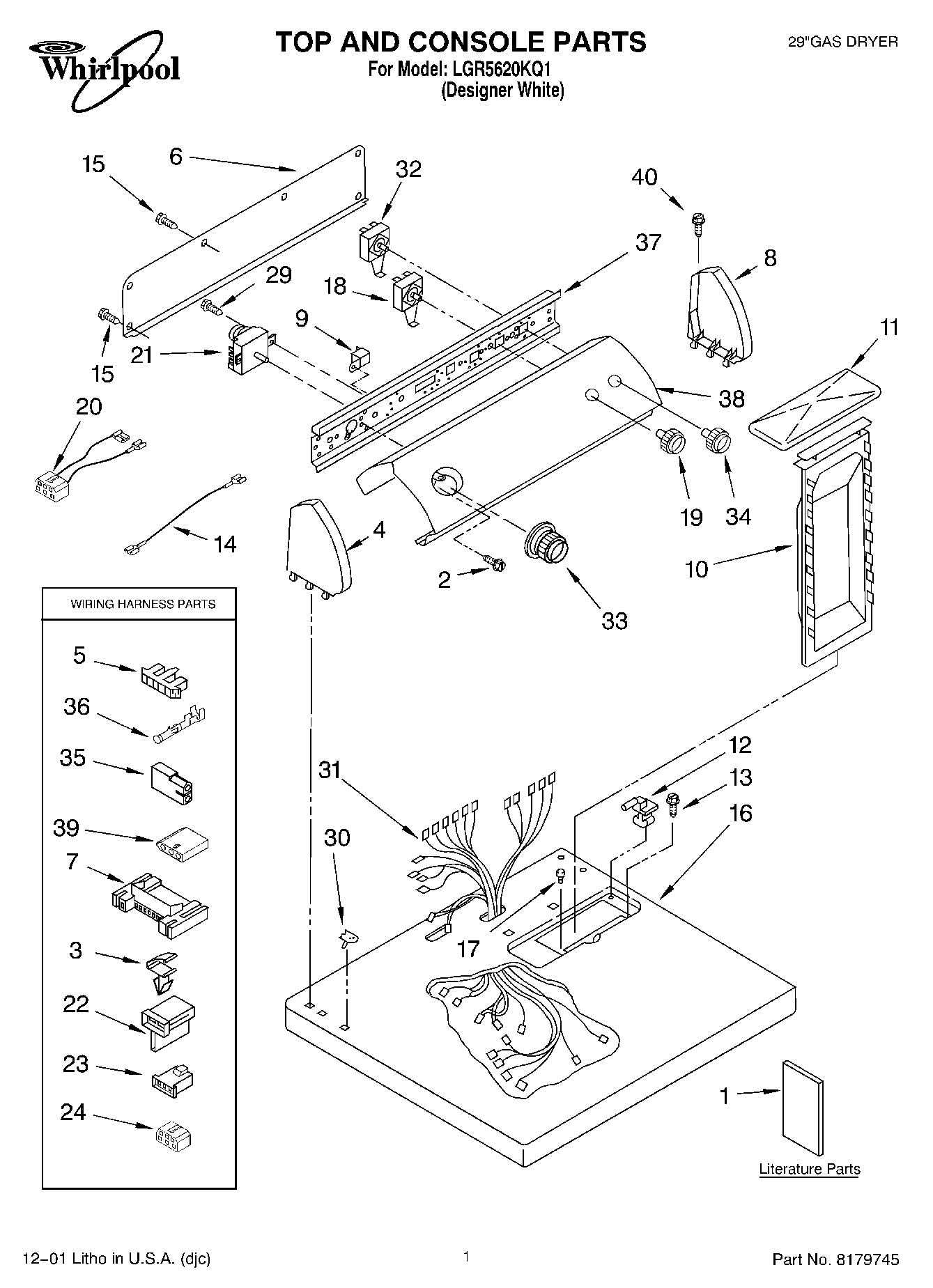

LGR5620KQ1 01 – TOP AND CONSOLE, LITERATURE

Products

Position	Product
	Dryer
1	Literature Parts (Guide, Use & Care)
1	Literature Parts (Instructions, Installation)
1	Literature Parts (Label, Wiring Diagram)
2	3400859 Whirlpool Screw
3	WP3394427 Whirlpool Clip
5	Connector, Timer
6	W10103406 Whirlpool Rear Panel
7	3395683 Whirlpool Connector
8	W10820038 Whirlpool Endcap
9	WP694419 Whirlpool Buzzer Adjuster
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Wire, Jumper (Black)
15	WP693995 Whirlpool Screw
16	Top
17	Bumper, Lint Lid
18	3405152 Whirlpool Switch Assembly
19	WP3957799 Whirlpool Knob
20	Wire, Jumper (Guard On/Off)
21	WP3976584 Whirlpool Timer Assembly
22	WP3403499 Whirlpool Connector
23	WP3403498 Whirlpool Connector
24	Block, Disconnect
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	8299877 Whirlpool Wire Harness
32	WP3977456 Whirlpool Start Switch
33	WP3957754 Whirlpool Knob Assembly
34	3957804 Whirlpool Knob
35	Receptacle, Latching (2-Way) (Uses Terminal 94614)
36	WP94614 Whirlpool Terminal
37	Bracket, Control
38	Panel, Control
39	3936144 Whirlpool Connector
40	WP388326 Whirlpool Screw
40	KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
40	3404351 Whirlpool Dryer Rack
40	799344 Whirlpool Refrigerator Paint
40	72017 Whirlpool Appliance Touch-Up Paint White
40	350930 Whirlpool White Spray Paint
40	350938 Whirlpool Spray Gun
40	4392065 Whirlpool Dryer Maintenance Kit
