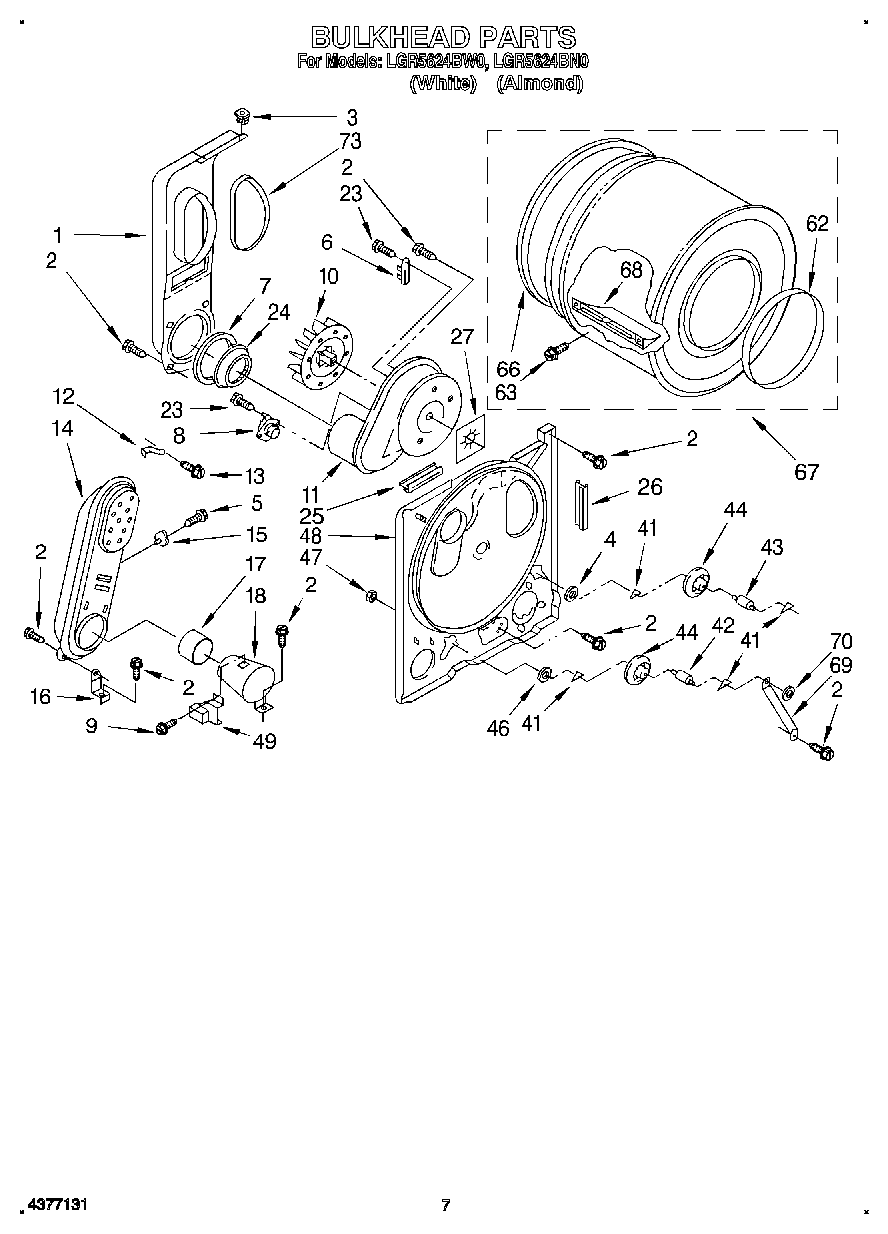

LGR5624BW0 04 – BULTKHEAD

Products

Position	Product
1	279505 Whirlpool Chute
2	SCREW
3	98460 Whirlpool Nut
4	WP3388703 Whirlpool Washer
5	WP90767 Whirlpool Screw
6	WP3392519 Whirlpool Dryer Thermal Fuse
7	W11415783 Whirlpool Seal
8	WP694674 Whirlpool Cycling Thermostat
9	WP3390631 Whirlpool Screw
10	WP694089 Whirlpool Dryer Blower Wheel
11	Housing, Blower
12	279771 Whirlpool Clip
15	W11568973 Whirlpool Thermostat Fix
16	Support, Heater Box (2)
17	279900 Whirlpool Box O/S1
23	WP965173 Whirlpool Dishwasher Screw
24	W11233063 Whirlpool Shield Assembly
26	686889 Whirlpool Pad
27	Seal, Blower
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	349241T Whirlpool Dryer Drum Support Roller Kit
46	WP348197 Whirlpool Washer Assembly
47	WP3359452 Whirlpool Nut
48	Bulkhead
49	WP338906 Whirlpool Dryer Gas Sensor
62	WP3394508 Whirlpool Bearing Ring
63	WPW10109200 Whirlpool Screw
66	239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67	3396775 Whirlpool Drum Assembly
68	WP342847 Whirlpool Drum Baffle
69	Bracket, Support
70	WP90296 Whirlpool Clip
73	SEAL
