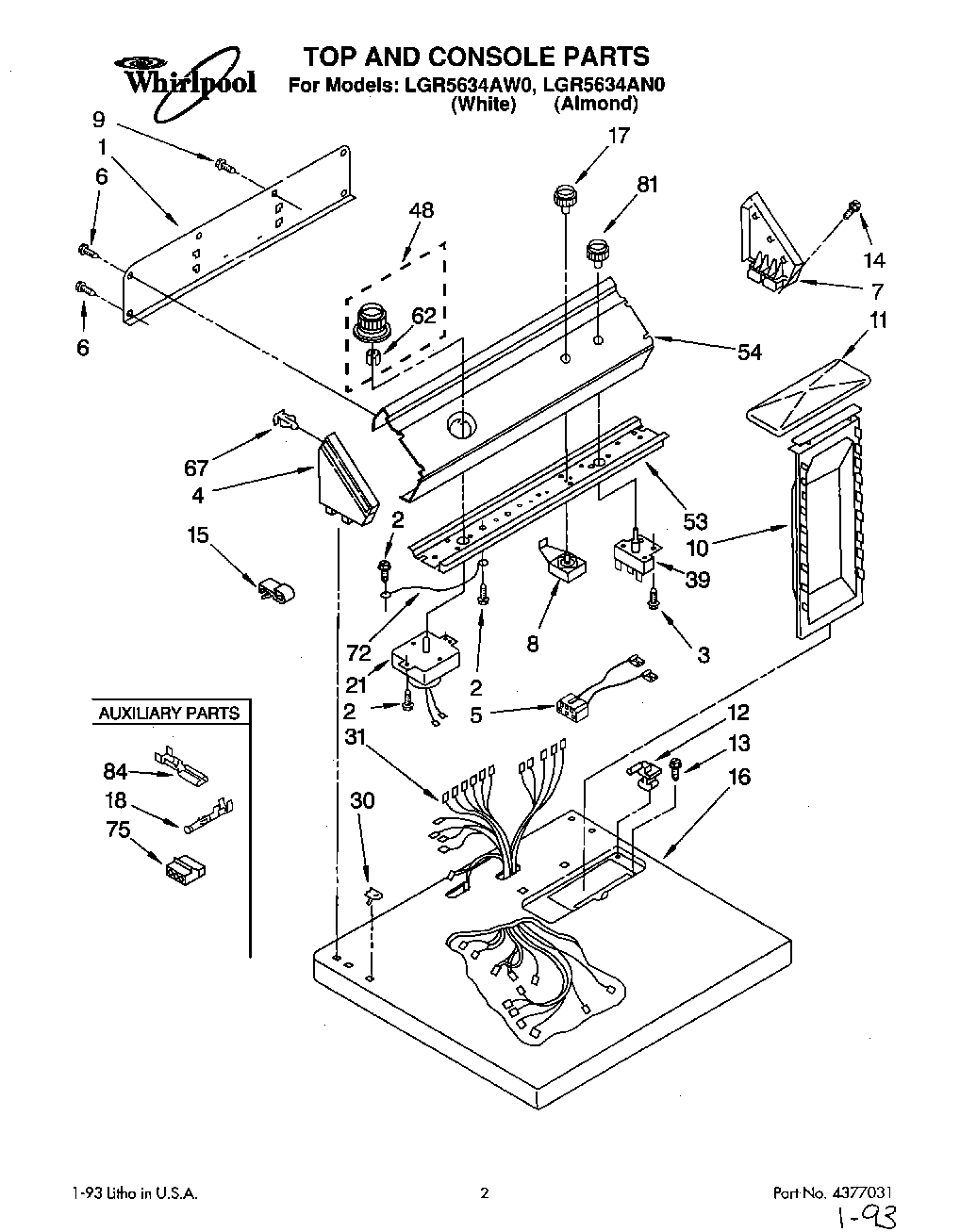

LGR5634AN0 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	Guide, Use & Care
	Instructions, Installation
	799344 Whirlpool Refrigerator Paint
	Leveler (Thinner)
	72017 Whirlpool Appliance Touch-Up Paint White
	WPL LIT4377031
	Dryer
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	Label, Operating Instructions
1	Panel, Rear Console
2	WPW10139210 Whirlpool Screw
3	WP488729 Whirlpool Refrigerator Door Screw
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.) (Almond)
5	8283286 Whirlpool Wire Harness
6	WP489069 Whirlpool Compactor Screw
7	Cap, End (R.H.) (White)
7	Cap, End (R.H.) (Almond)
8	Switch, Temperature
9	WP693995 Whirlpool Screw
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	Clip, Retainer
16	Top (Almond)
16	Top (White)
17	KNOB
18	WP94614 Whirlpool Terminal
21	WP3976568 Whirlpool Timer
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	(Alt.)
39	Switch, Push-To-Start
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
75	Receptacle, 3-Way Terminal (Use W/94614)
81	Knob, Push To Start
84	WP596797 Whirlpool Terminal
