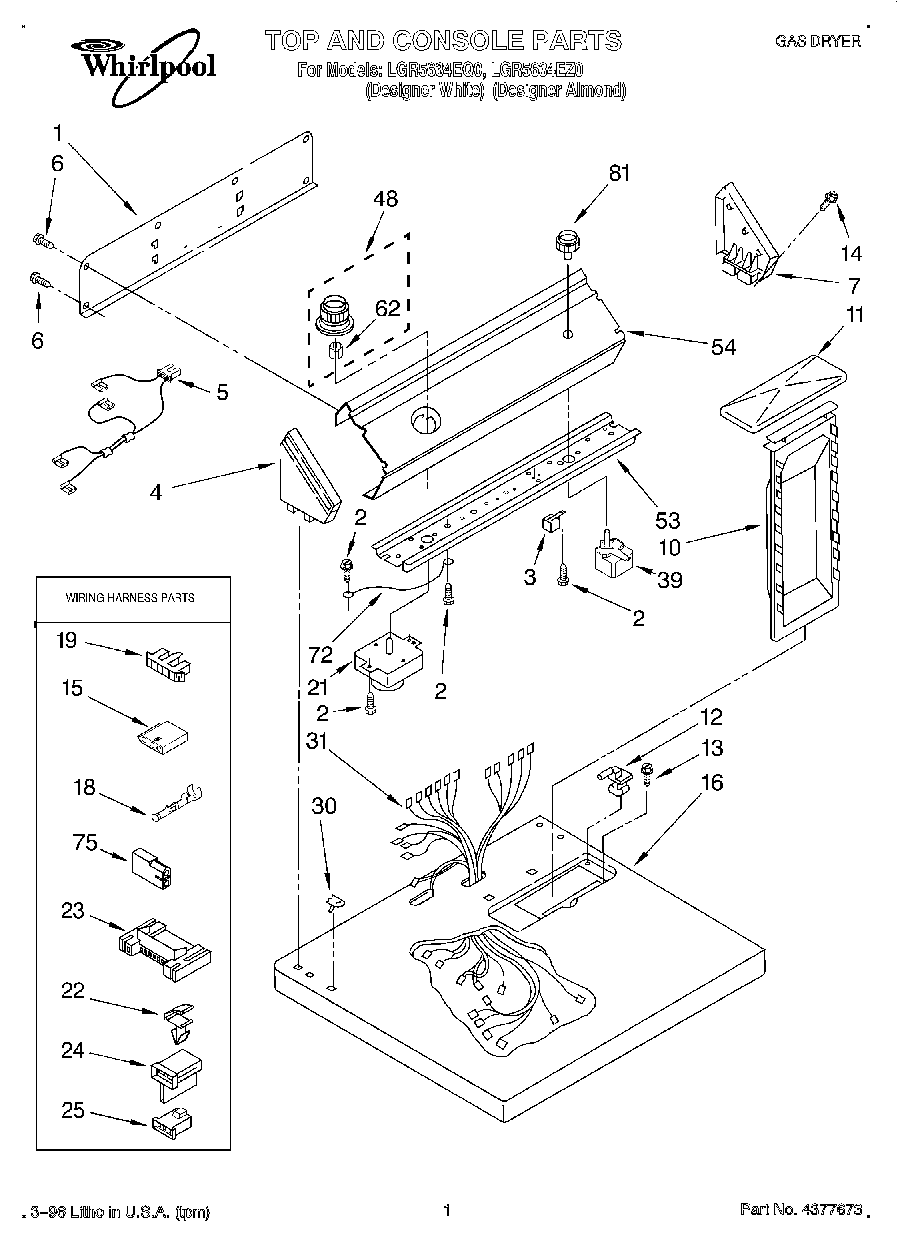

LGR5634EZ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Dryer
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	Label, Wiring Diagram
	350938 Whirlpool Spray Gun
	WPL LIT3405517
	WPL LIT3405339
	Almond (Uncut)
1	Panel, Rear Console
2	WPW10139210 Whirlpool Screw
3	WP694419 Whirlpool Buzzer Adjuster
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.)
5	Wire, Jumper
6	WP693995 Whirlpool Screw
7	Cap, End (R.H.)
7	Cap, End (R.H.) (Almond)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	Connector (Door Switch)
16	Top (Almond)
16	Top (White)
18	WP94614 Whirlpool Terminal
19	Connector, Timer
21	WP3976569 Whirlpool Timer
22	WP3394427 Whirlpool Clip
23	3395683 Whirlpool Connector
24	WP3403499 Whirlpool Connector
25	WP3403498 Whirlpool Connector
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	Switch, Push-To-Start
48	3957753 Whirlpool Knob
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (LGR5636EQ0)
54	Panel, Control (LGR5636EZ0)
62	WP688805 Whirlpool Spring Clip
72	Wire, Ground
75	Receptacle, Latching (2-Way) (Uses Terminal 94614)
81	WP3957796 Whirlpool Knob
81	3957797 Whirlpool Knob
