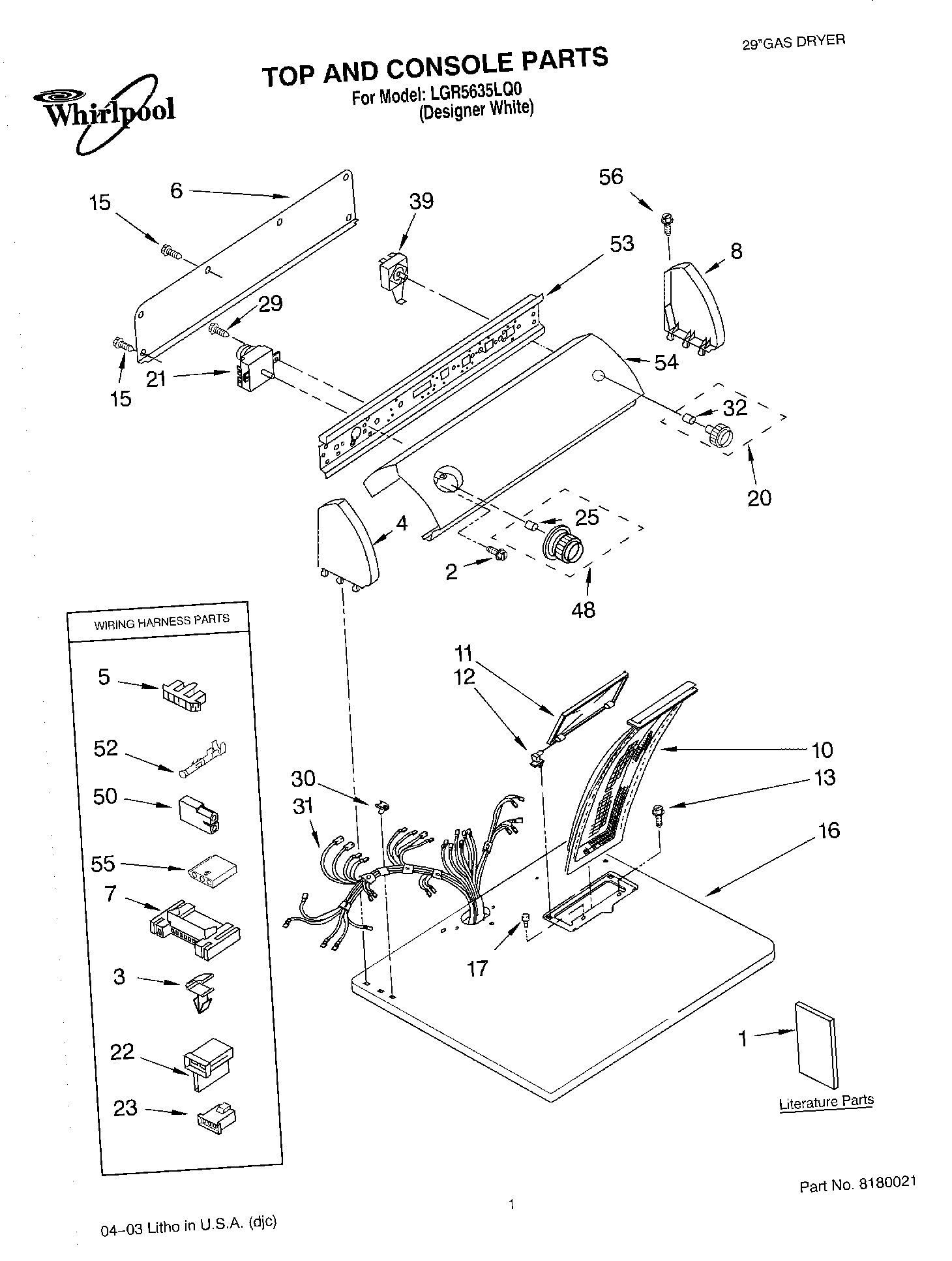

LGR5635LQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Literature Parts (Use & Care Guide)
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Literature Parts (Label, Wiring Diagram)
1Literature Parts (Installation Instructions)
1Dryer
1Literature Parts (Sheet, Cycle Feature)
23400859 Whirlpool Screw
3WP3394427 Whirlpool Clip
5Connector, Timer
6W10103406 Whirlpool Rear Panel
73395683 Whirlpool Connector
8W10820038 Whirlpool Endcap
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
15WP693995 Whirlpool Screw
16Top
17Bumper, Lint Lid
203957804 Whirlpool Knob
21WP3976584 Whirlpool Timer Assembly
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
25WP688805 Whirlpool Spring Clip
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
32WP8536939 Whirlpool Spring Clip
39WP3977456 Whirlpool Start Switch
48WP3957754 Whirlpool Knob Assembly
50Receptacle, Latching (2-Way) (Uses Terminal 94614)
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
553936144 Whirlpool Connector
56WP388326 Whirlpool Screw
