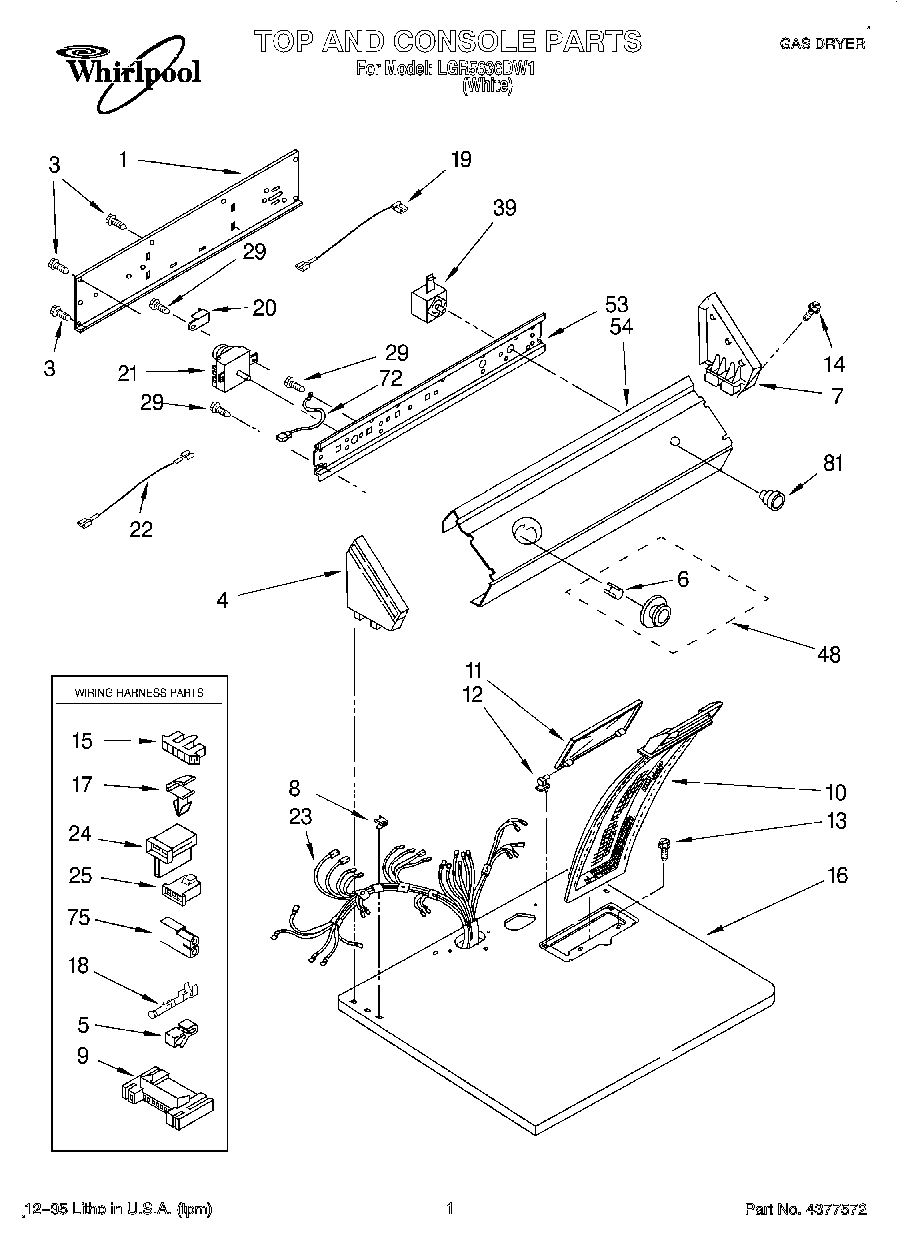

LGR5636DW1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Dryer
	799344 Whirlpool Refrigerator Paint
	Instructions, Installation
	72017 Whirlpool Appliance Touch-Up Paint White
	Guide, Use & Care
	350938 Whirlpool Spray Gun
	Label, Wiring Diagram
1	Panel, Rear Console
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.) (White)
5	Clip, Retainer
6	WP688805 Whirlpool Spring Clip
7	Cap, End (R.H.) (White)
8	WP357213 Whirlpool Hinge Stopper
9	3395683 Whirlpool Connector
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	Connector, Timer
16	Top (White)
17	WP3394427 Whirlpool Clip
18	WP94614 Whirlpool Terminal
19	Wire, Jumper (Blue)
19	Wire, Jumper (Black)
20	WP694419 Whirlpool Buzzer Adjuster
21	WP3976569 Whirlpool Timer
22	Wire, Jumper (Lt. Blue/Black)
23	Harness, Wiring
24	WP3403499 Whirlpool Connector
25	WP3403498 Whirlpool Connector
29	WPW10139210 Whirlpool Screw
39	WP3404233 Whirlpool Dryer Starter Switch
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control
72	Wire, Ground
75	Receptacle, Latching (2-Way) (Uses Terminal 94614)
81	Knob, Push To Start
