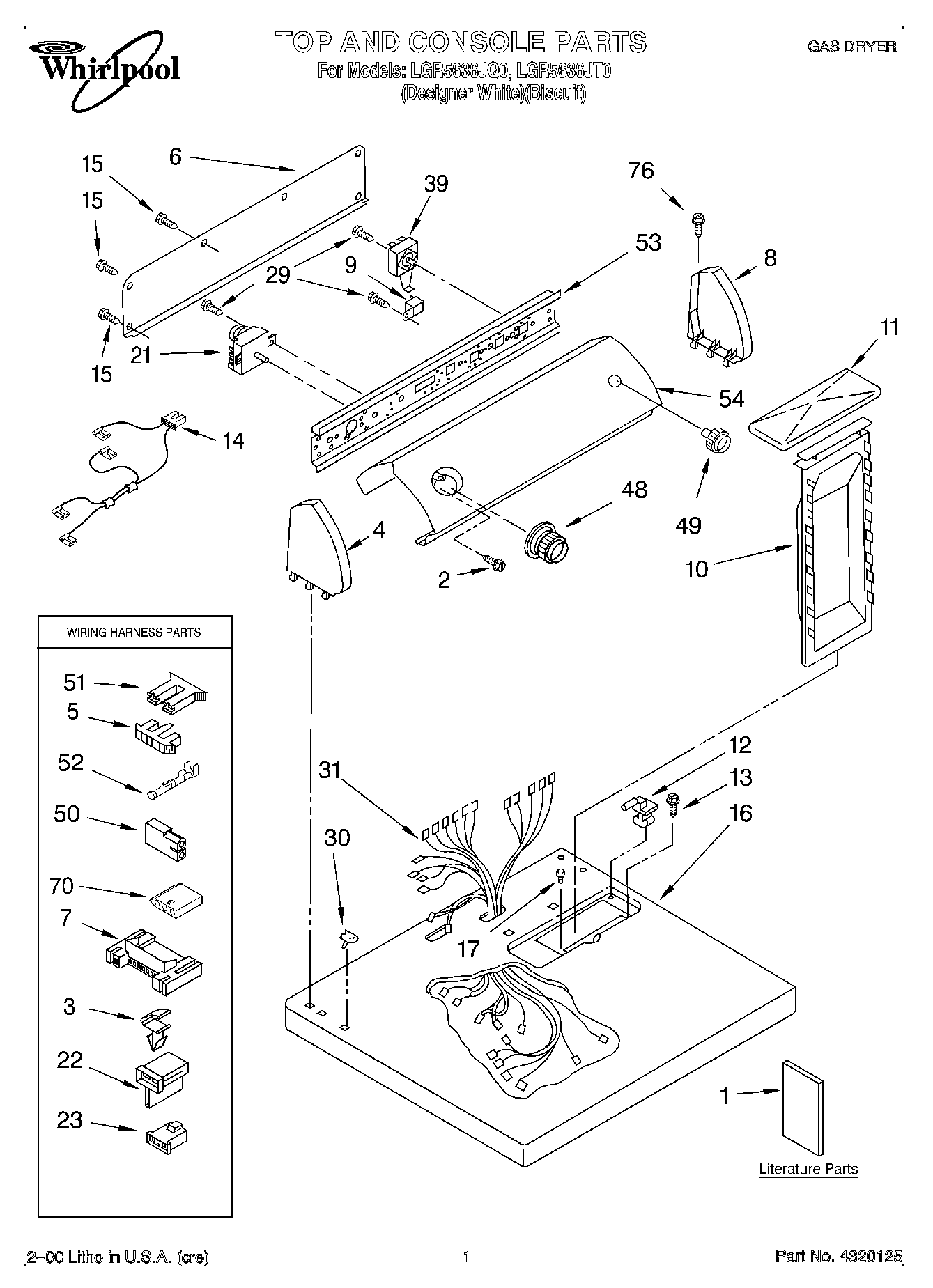

LGR5636JQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGR5636JQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGR5636JQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
Dryer
1Instructions, Installation
1Literature Parts (Guide, Use & Care)
1Label, Wiring Diagram
23400859 Whirlpool Screw
3WP3394427 Whirlpool Clip
4Cap, End (L.H.) (BIscuit)
5Connector, Timer
6W10103406 Whirlpool Rear Panel
73395683 Whirlpool Connector
8WPL 8271362
8W10820038 Whirlpool Endcap
9WP694419 Whirlpool Buzzer Adjuster
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Biscuit)
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Wire, Jumper
15WP693995 Whirlpool Screw
16Top (Biscuit)
16Top
17Bumper, Lint Lid
21WP3976584 Whirlpool Timer Assembly
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39Switch, Push-To-Start
48WP3957754 Whirlpool Knob Assembly
48WP3957755 Whirlpool Knob
493957797 Whirlpool Knob
49WP3957799 Whirlpool Knob
50Receptacle, Latching (2-Way) (Uses Terminal 94614)
513354925 Whirlpool Connector
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
54Panel, Control (Biscuit)
703936144 Whirlpool Connector
76350938 Whirlpool Spray Gun
764392899 Whirlpool Biscuit Touch-Up Paint
764392901 Whirlpool Biscuit Spray Paint
76PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
76350930 Whirlpool White Spray Paint
76799344 Whirlpool Refrigerator Paint
7672017 Whirlpool Appliance Touch-Up Paint White
76WP388326 Whirlpool Screw
