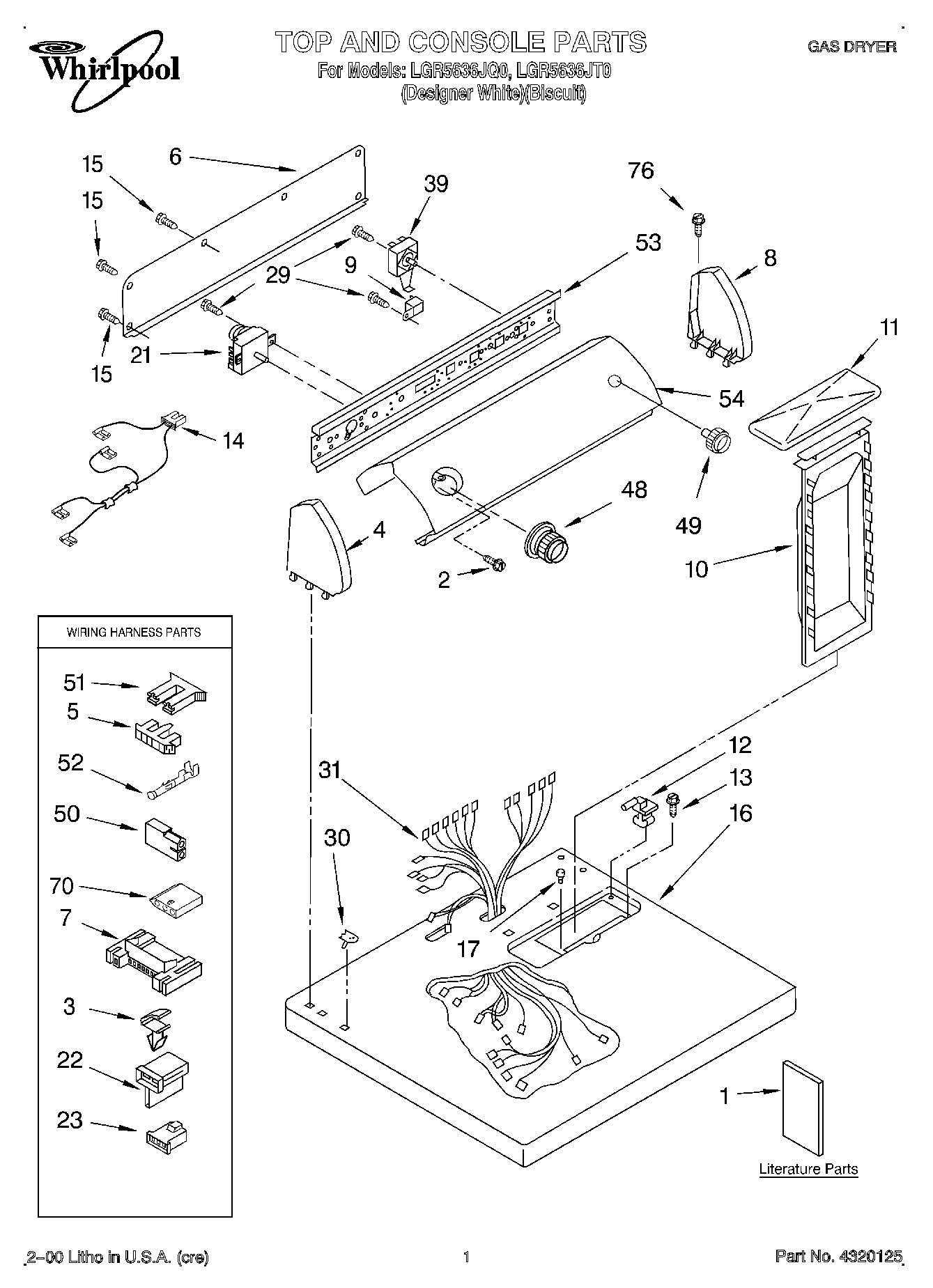

LGR5636JT0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	Dryer
1	Instructions, Installation
1	Literature Parts (Guide, Use & Care)
1	Label, Wiring Diagram
2	3400859 Whirlpool Screw
3	WP3394427 Whirlpool Clip
4	Cap, End (L.H.) (BIscuit)
5	Connector, Timer
6	W10103406 Whirlpool Rear Panel
7	3395683 Whirlpool Connector
8	WPL 8271362
8	W10820038 Whirlpool Endcap
9	WP694419 Whirlpool Buzzer Adjuster
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Biscuit)
11	Cover, Lint Screen
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Wire, Jumper
15	WP693995 Whirlpool Screw
16	Top (Biscuit)
16	Top
17	Bumper, Lint Lid
21	WP3976584 Whirlpool Timer Assembly
22	WP3403499 Whirlpool Connector
23	WP3403498 Whirlpool Connector
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	Switch, Push-To-Start
48	WP3957754 Whirlpool Knob Assembly
48	WP3957755 Whirlpool Knob
49	3957797 Whirlpool Knob
49	WP3957799 Whirlpool Knob
50	Receptacle, Latching (2-Way) (Uses Terminal 94614)
51	3354925 Whirlpool Connector
52	WP94614 Whirlpool Terminal
53	Bracket, Control
54	Panel, Control
54	Panel, Control (Biscuit)
70	3936144 Whirlpool Connector
76	350938 Whirlpool Spray Gun
76	4392899 Whirlpool Biscuit Touch-Up Paint
76	4392901 Whirlpool Biscuit Spray Paint
76	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
76	350930 Whirlpool White Spray Paint
76	799344 Whirlpool Refrigerator Paint
76	72017 Whirlpool Appliance Touch-Up Paint White
76	WP388326 Whirlpool Screw
