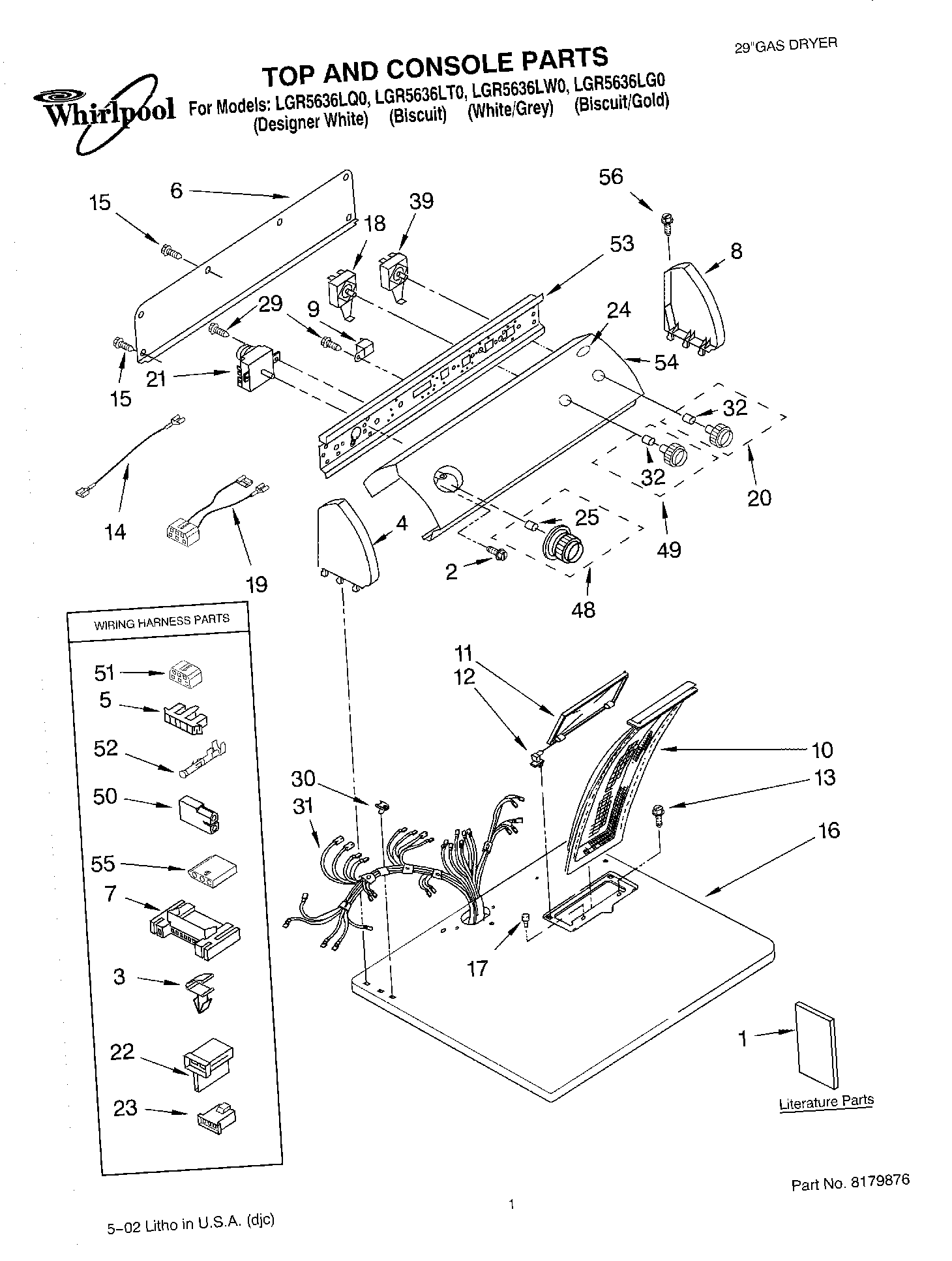

LGR5636LT0 01 – TOP AND CONSOLE, LITERATURE

LGR5636LT0 01 – TOP AND CONSOLE, LITERATURE

Written by

in

LGR5636LT0 01 – TOP AND CONSOLE, LITERATURE

Products

PositionProduct
Dryer
1Literature Parts (Installation Instructions)
1Literature Parts (Label, Wiring Diagram)
1Literature Parts (Use & Care Guide)
23400859 Whirlpool Screw
3WP3394427 Whirlpool Clip
4Cap, End (L.H.) (BIscuit)
5Connector, Timer
6W10103406 Whirlpool Rear Panel
73395683 Whirlpool Connector
8W10820038 Whirlpool Endcap
8WPL 8271362
9WP694419 Whirlpool Buzzer Adjuster
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Biscuit)
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Wire, Jumper (Black)
15WP693995 Whirlpool Screw
16Top
16Top (Biscuit)
17Bumper, Lint Lid
183405152 Whirlpool Switch Assembly
19Wire, Jumper (Guard On/Off)
20WPL 8271349
20Knob, Push-To-Start (LGR5636LW0)
20Knob, Push-To-Start (LGR5636LG0)
203957804 Whirlpool Knob
21WP3976584 Whirlpool Timer Assembly
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
24Medallion
25WP688805 Whirlpool Spring Clip
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
318299877 Whirlpool Wire Harness
32WP8536939 Whirlpool Spring Clip
39WP3977456 Whirlpool Start Switch
48WPL 8316549
48WP3957754 Whirlpool Knob Assembly
48WP3957755 Whirlpool Knob
48WP8557455 Whirlpool Knob Timer
49WP3957799 Whirlpool Knob
49KNOB
49WPL 8316545
493957797 Whirlpool Knob
50Receptacle, Latching (2-Way) (Uses Terminal 94614)
51Block, Disconnect
52WP94614 Whirlpool Terminal
53Bracket, Control
54WPL 8532636
54WPL 8532635
54WPL 8532637
54WPL 8532638
553936144 Whirlpool Connector
56WP388326 Whirlpool Screw
