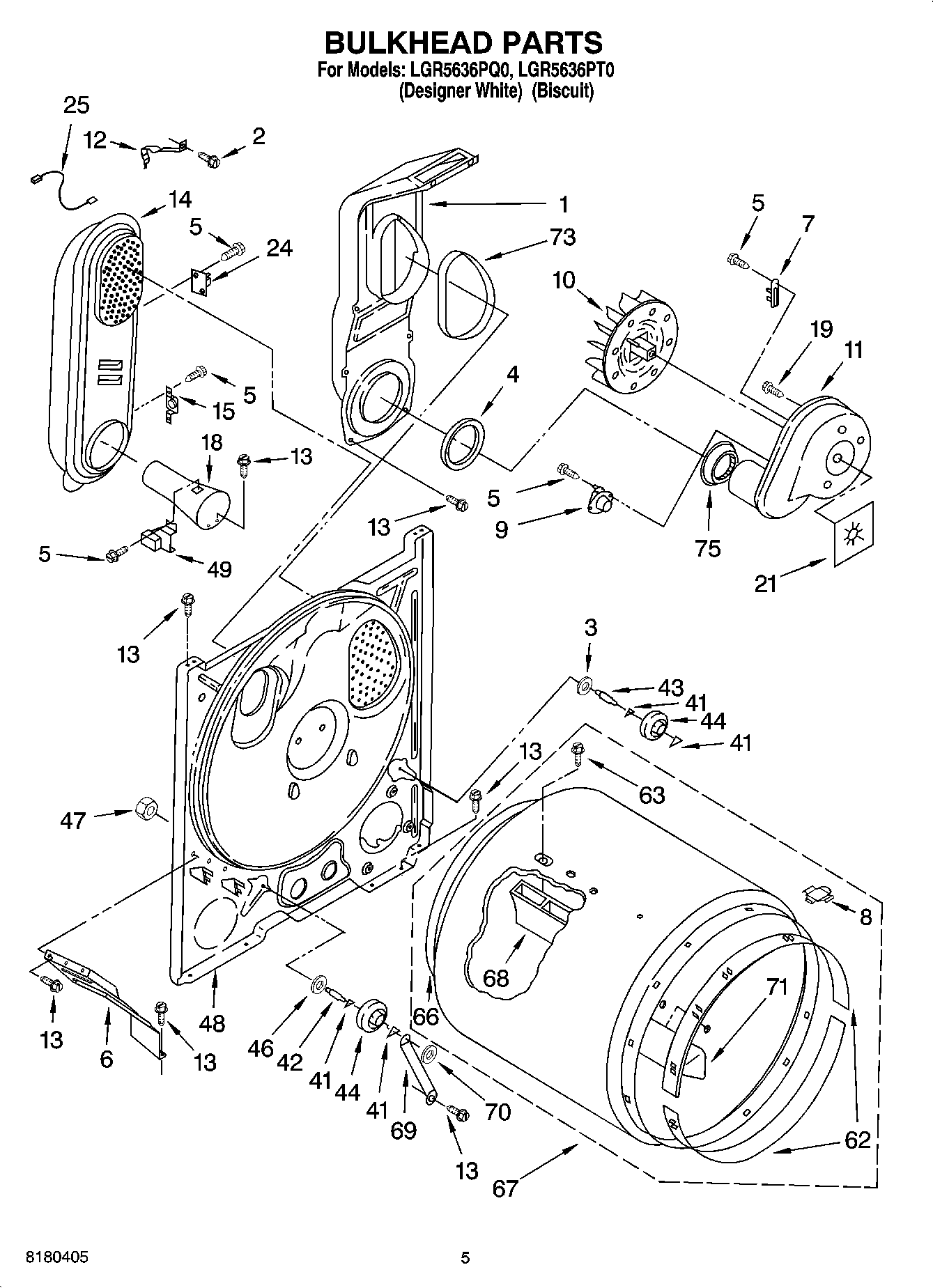

LGR5636PT0 03 – BULKHEAD PARTS

LGR5636PT0 03 – BULKHEAD PARTS

Written by

in

LGR5636PT0 03 – BULKHEAD PARTS

Products

PositionProduct
1W11117429 Whirlpool Chute Assembly
2WP489463 Whirlpool Refrigerator Screw
3WP3388703 Whirlpool Washer
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6W11398682 Whirlpool Bracket
7WP3392519 Whirlpool Dryer Thermal Fuse
88066086 Whirlpool Plug
9WP3387134 Whirlpool Dryer Cycling Thermostat
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12CLIP, HEATER BOX
13SCREW
14279980 Whirlpool Box
18WP8066049 Whirlpool Funnel Assembly
19WP488729 Whirlpool Refrigerator Door Screw
21Seal, Blower
24W11050897 Whirlpool Dryer High Limit Thermostat
25WP3401707 Whirlpool Wire Assembly
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP3359452 Whirlpool Nut
48W11178667 Whirlpool Bulkhead Assembly
49WP338906 Whirlpool Dryer Gas Sensor
62279441 Whirlpool Front Bearing Ring
63WPW10109200 Whirlpool Screw
66W10612022 Whirlpool Felt Seal
67W10899578 Whirlpool Dryer Drum Assembly
68BAFFLE-DRM
69W11684613 Whirlpool Bracket
70WP90296 Whirlpool Clip
71WP3403636 Whirlpool Drum Baffle
73SEAL
75KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
753404351 Whirlpool Dryer Rack
75350938 Whirlpool Spray Gun
7572017 Whirlpool Appliance Touch-Up Paint White
75799344 Whirlpool Refrigerator Paint
75PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
754392065 Whirlpool Dryer Maintenance Kit
75350930 Whirlpool White Spray Paint
754392899 Whirlpool Biscuit Touch-Up Paint
75W11224254 Whirlpool Test Kit
754392901 Whirlpool Biscuit Spray Paint
75W11233063 Whirlpool Shield Assembly
75ACCESSORY PARTS
