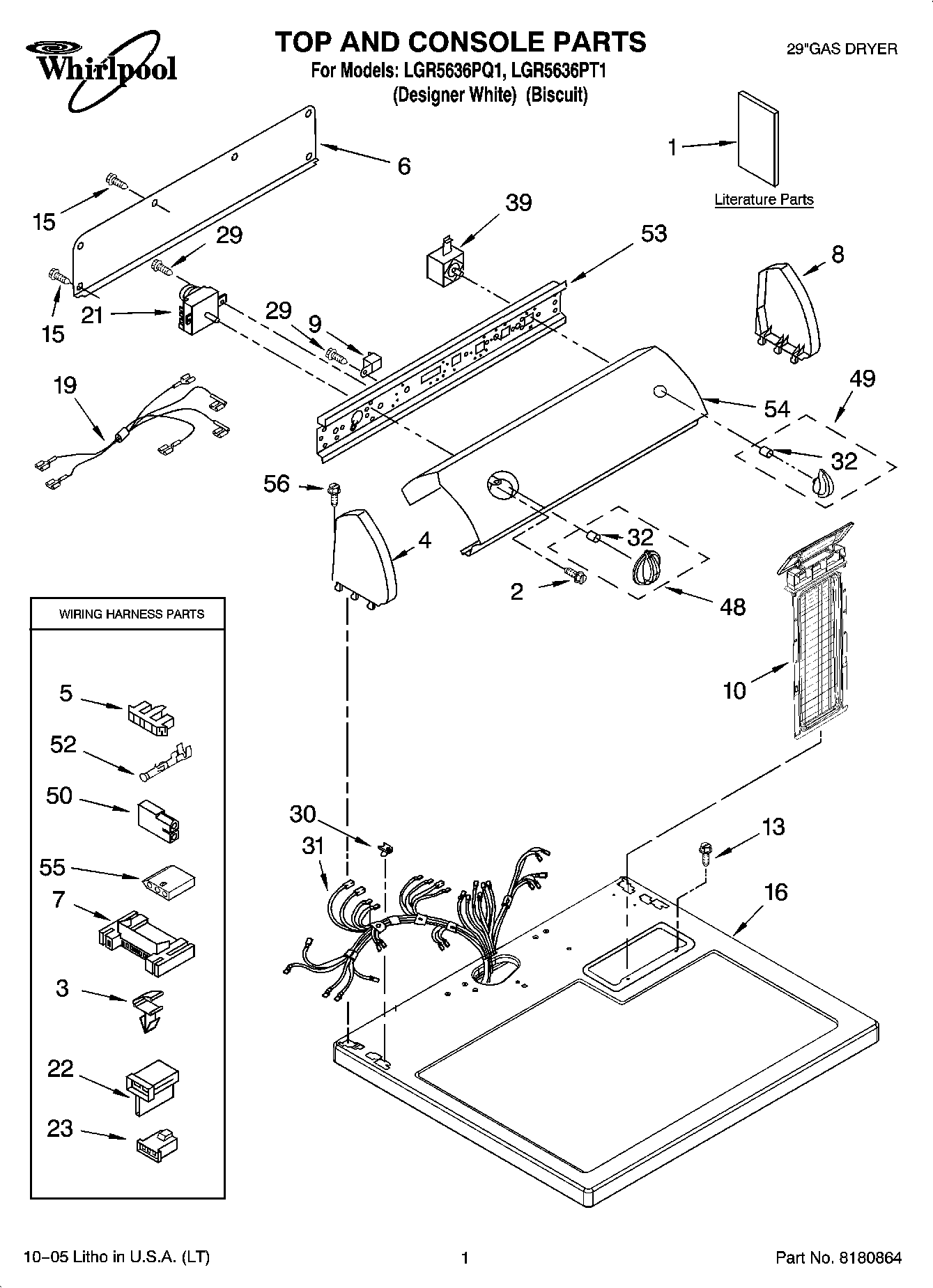

LGR5636PT1 01 – TOP AND CONSOLE PARTS

LGR5636PT1 01 – TOP AND CONSOLE PARTS

Written by

in

LGR5636PT1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WPL 677818
1Wiring Diagram
1Use & Care Guide
1Instructions, Installation
1Sheet, Cycle Feature
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
23400859 Whirlpool Screw
3WP3394427 Whirlpool Clip
4Cap, End (L.H.) (BIscuit)
5Connector, Timer
6W10103406 Whirlpool Rear Panel
73395683 Whirlpool Connector
8W10820038 Whirlpool Endcap
8WPL 8271362
9WP694419 Whirlpool Buzzer Adjuster
10WPW10717210 Whirlpool Dryer Lint Screen Filter
10Screen, Lint (Biscuit)
13W11693756 Whirlpool Screw Assembly
15WP693995 Whirlpool Screw
16Top
16Top
19Wire, Jumper (PTS to Buzzer)
21WP3976584 Whirlpool Timer Assembly
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
29WP90767 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
32WP8536939 Whirlpool Spring Clip
39WP8543274 Whirlpool PTS Switch
48Timer Knob Assembly (Biscuit)
48W10756270 Whirlpool Dryer Timer Knob
49WPL 8544935
49WPL 8544936
50Receptacle, Latching (2-Way) (Uses Terminal 94614)
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
54Panel, Control (Biscuit)
553936144 Whirlpool Connector
56WP388326 Whirlpool Screw
