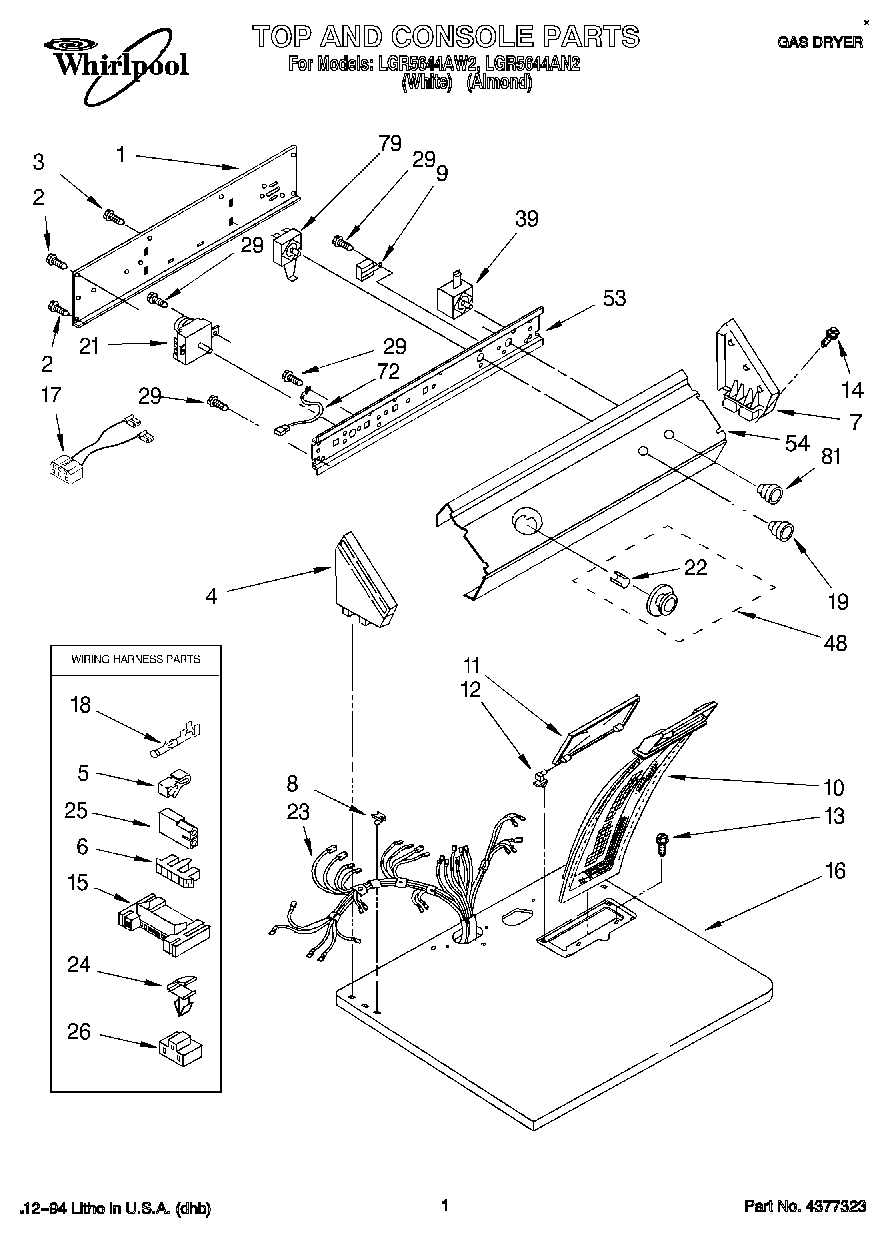

LGR5644AN2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Dryer
	Almond (Uncut)
	Label, Wiring Diagram
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Instructions, Installation
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	Guide, Use & Care
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	WP489069 Whirlpool Compactor Screw
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.) (Almond)
5	Clip, Retainer
6	Connector, Timer
7	Cap, End (R.H.) (Almond)
7	Cap, End (R.H.) (White)
8	WP357213 Whirlpool Hinge Stopper
9	WP694419 Whirlpool Buzzer Adjuster
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	3395683 Whirlpool Connector
16	Top (Almond)
16	Top (White)
17	8539893 Whirlpool Wire Harness
18	WP94614 Whirlpool Terminal
19	KNOB
21	WP3976574 Whirlpool Timer
22	WP688805 Whirlpool Spring Clip
23	Harness, Wiring
24	WP3394427 Whirlpool Clip
25	Receptacle, Latching (2-Way) (Uses Terminal 94614)
26	3401144 Whirlpool Connector
29	WPW10139210 Whirlpool Screw
39	Relay, Push-To-Start
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
72	Wire, Ground
75	Receptacle, 3-Way Terminal (Use W/94614)
79	WP3399639 Whirlpool Switch
81	Knob, Push To Start
