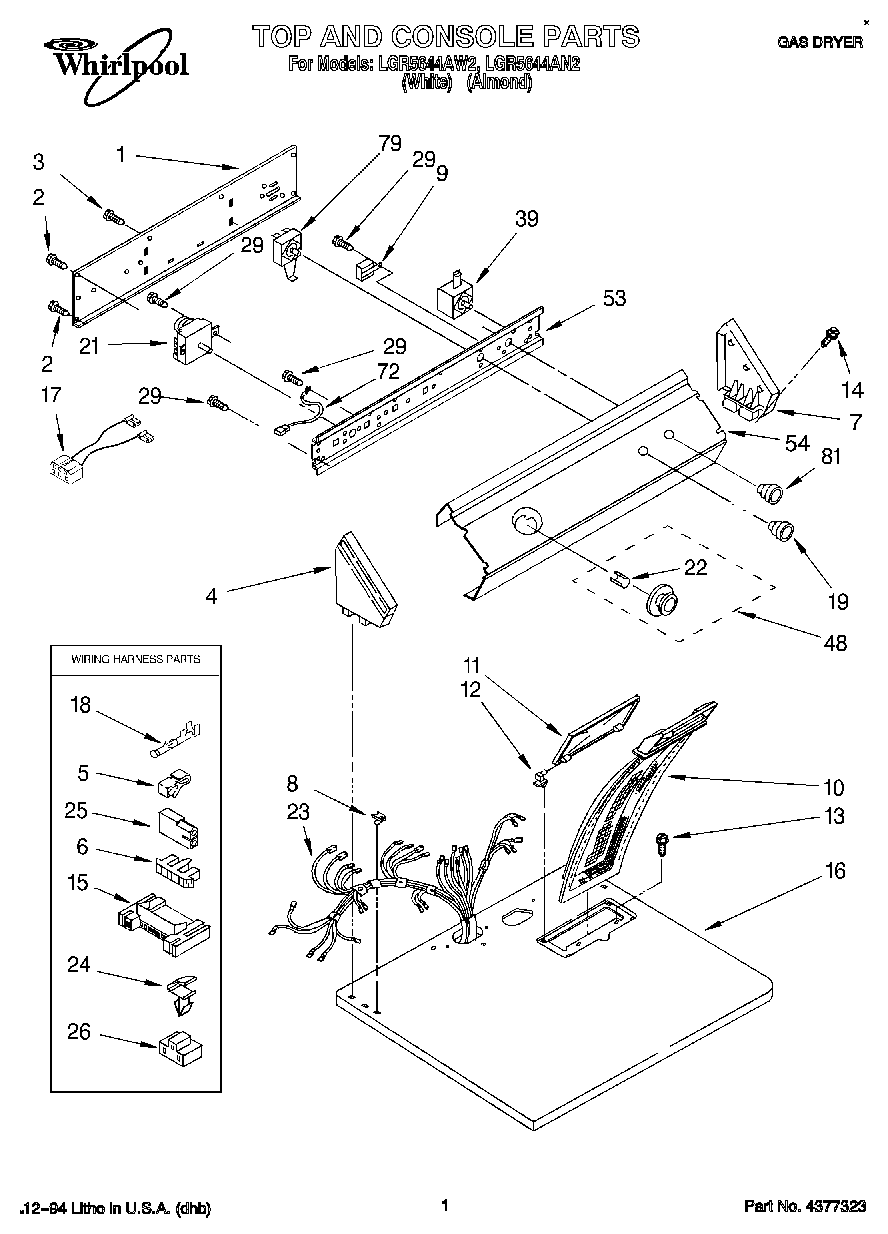

LGR5644AW2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Dryer
Almond (Uncut)
Label, Wiring Diagram
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
Instructions, Installation
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
Guide, Use & Care
350938 Whirlpool Spray Gun
1Panel, Rear Console
2WP489069 Whirlpool Compactor Screw
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Almond)
5Clip, Retainer
6Connector, Timer
7Cap, End (R.H.) (Almond)
7Cap, End (R.H.) (White)
8WP357213 Whirlpool Hinge Stopper
9WP694419 Whirlpool Buzzer Adjuster
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
153395683 Whirlpool Connector
16Top (Almond)
16Top (White)
178539893 Whirlpool Wire Harness
18WP94614 Whirlpool Terminal
19KNOB
21WP3976574 Whirlpool Timer
22WP688805 Whirlpool Spring Clip
23Harness, Wiring
24WP3394427 Whirlpool Clip
25Receptacle, Latching (2-Way) (Uses Terminal 94614)
263401144 Whirlpool Connector
29WPW10139210 Whirlpool Screw
39Relay, Push-To-Start
48WP3957752 Whirlpool Knob
53Bracket, Control
54Panel, Control (White)
54Panel, Control (Almond)
72Wire, Ground
75Receptacle, 3-Way Terminal (Use W/94614)
79WP3399639 Whirlpool Switch
81Knob, Push To Start
