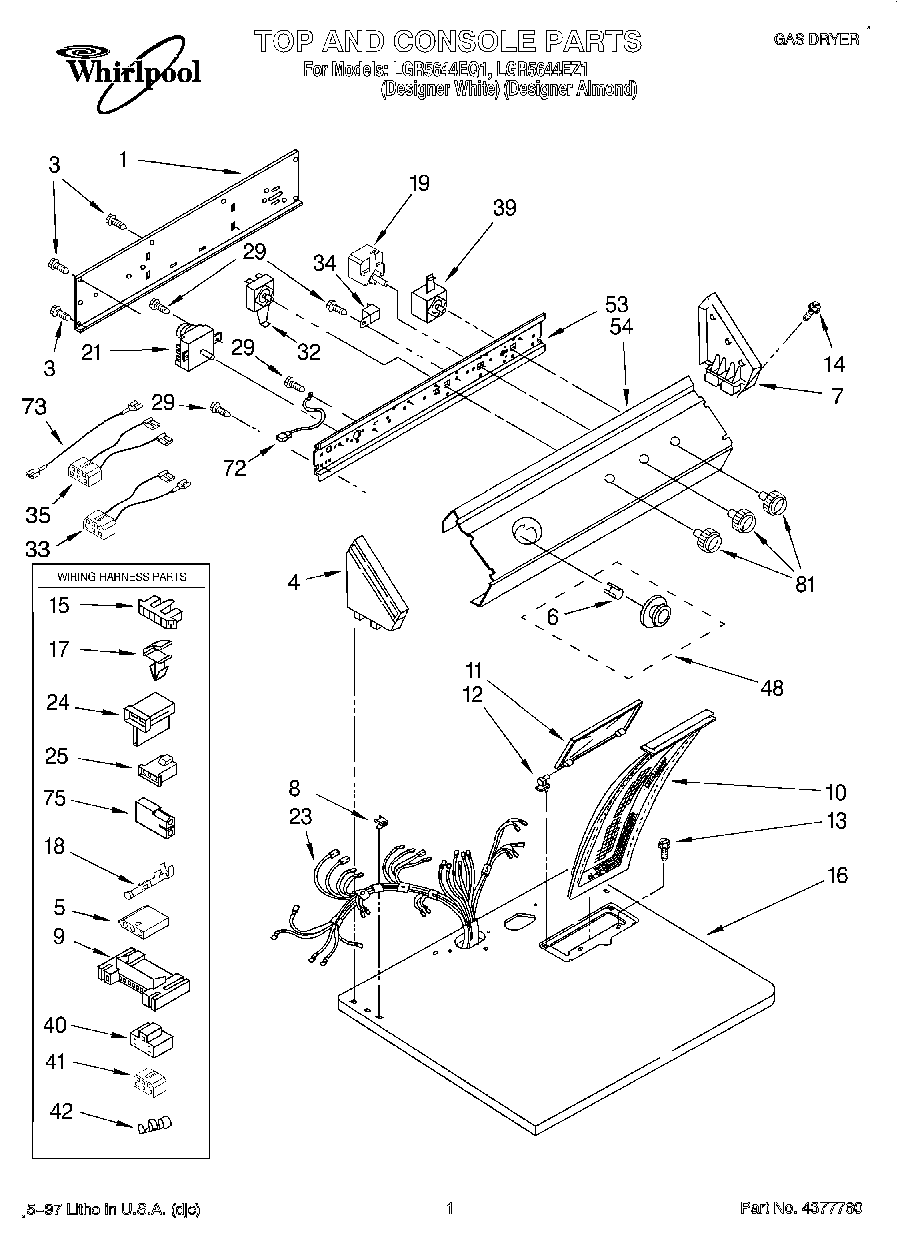

LGR5644EQ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGR5644EQ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGR5644EQ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Label, Warning
WPL LIT3406071
Instructions, Installation
Dryer
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
WPL LIT3406692
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
1Panel, Rear Console
3WP693995 Whirlpool Screw
4Cap, End (L.H.)
4Cap, End (L.H.) (Almond)
5Connector (Door Switch)
6WP688805 Whirlpool Spring Clip
7Cap, End (R.H.) (Almond)
7Cap, End (R.H.)
8WP357213 Whirlpool Hinge Stopper
93395683 Whirlpool Connector
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15Connector, Timer
16Top (Almond)
16Top (White)
17WP3394427 Whirlpool Clip
18WP94614 Whirlpool Terminal
19WP3405156 Whirlpool Switch
21WP3976580 Whirlpool Timer
23Harness, Wiring
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
32WP3399639 Whirlpool Switch
333397695 Whirlpool Wire Harness
34WP694419 Whirlpool Buzzer Adjuster
358539893 Whirlpool Wire Harness
39WP3398095 Whirlpool Dryer Start Relay
403401144 Whirlpool Connector
41Block, Disconnect
42W10113937 Whirlpool Clamp
483957753 Whirlpool Knob
48WP3957752 Whirlpool Knob
53Bracket, Control
54Panel, Control (White)
54Panel, Control (Almond)
72Wire, Ground
73Wire, Jumper (Black)
75Receptacle, Latching (2-Way) (Uses Terminal 94614)
81WP3957796 Whirlpool Knob
813957797 Whirlpool Knob
