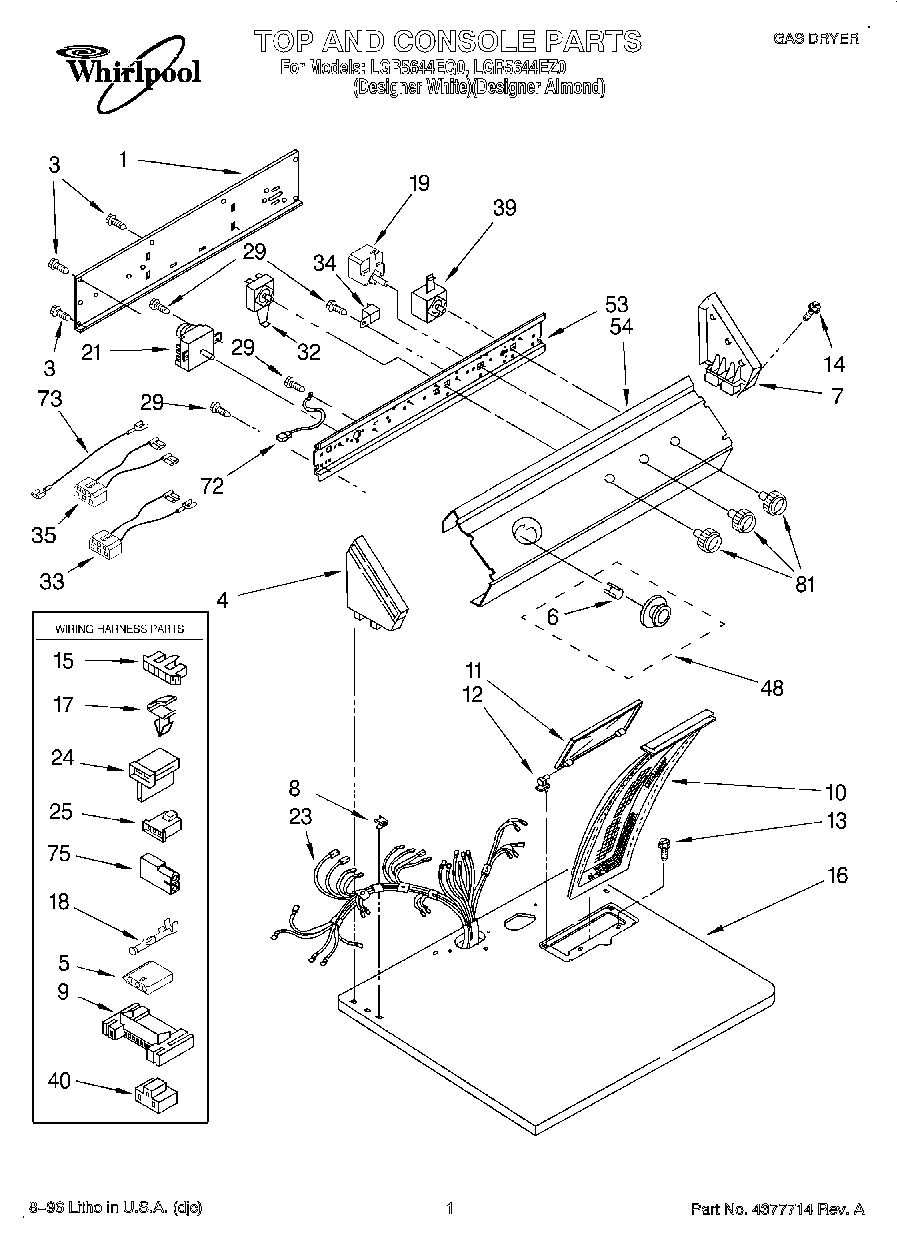

LGR5644EZ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Dryer
	Almond (Uncut)
	WPL LIT3405515
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	Instructions, Installation
	350938 Whirlpool Spray Gun
	WPL LIT3401735
1	Panel, Rear Console
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.)
4	Cap, End (L.H.) (Almond)
5	Connector (Door Switch)
6	WP688805 Whirlpool Spring Clip
7	Cap, End (R.H.)
7	Cap, End (R.H.) (Almond)
8	WP357213 Whirlpool Hinge Stopper
9	3395683 Whirlpool Connector
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	Connector, Timer
16	Top (White)
16	Top (Almond)
17	WP3394427 Whirlpool Clip
18	WP94614 Whirlpool Terminal
19	WP3405156 Whirlpool Switch
21	WP3976580 Whirlpool Timer
23	Harness, Wiring
24	WP3403499 Whirlpool Connector
25	WP3403498 Whirlpool Connector
29	WPW10139210 Whirlpool Screw
32	WP3399639 Whirlpool Switch
33	3397695 Whirlpool Wire Harness
34	WP694419 Whirlpool Buzzer Adjuster
35	8539893 Whirlpool Wire Harness
39	WP3398095 Whirlpool Dryer Start Relay
40	3401144 Whirlpool Connector
48	WP3957752 Whirlpool Knob
48	3957753 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
72	Wire, Ground
73	Wire, Jumper (Black)
75	Receptacle, Latching (2-Way) (Uses Terminal 94614)
81	3957797 Whirlpool Knob
81	WP3957796 Whirlpool Knob
