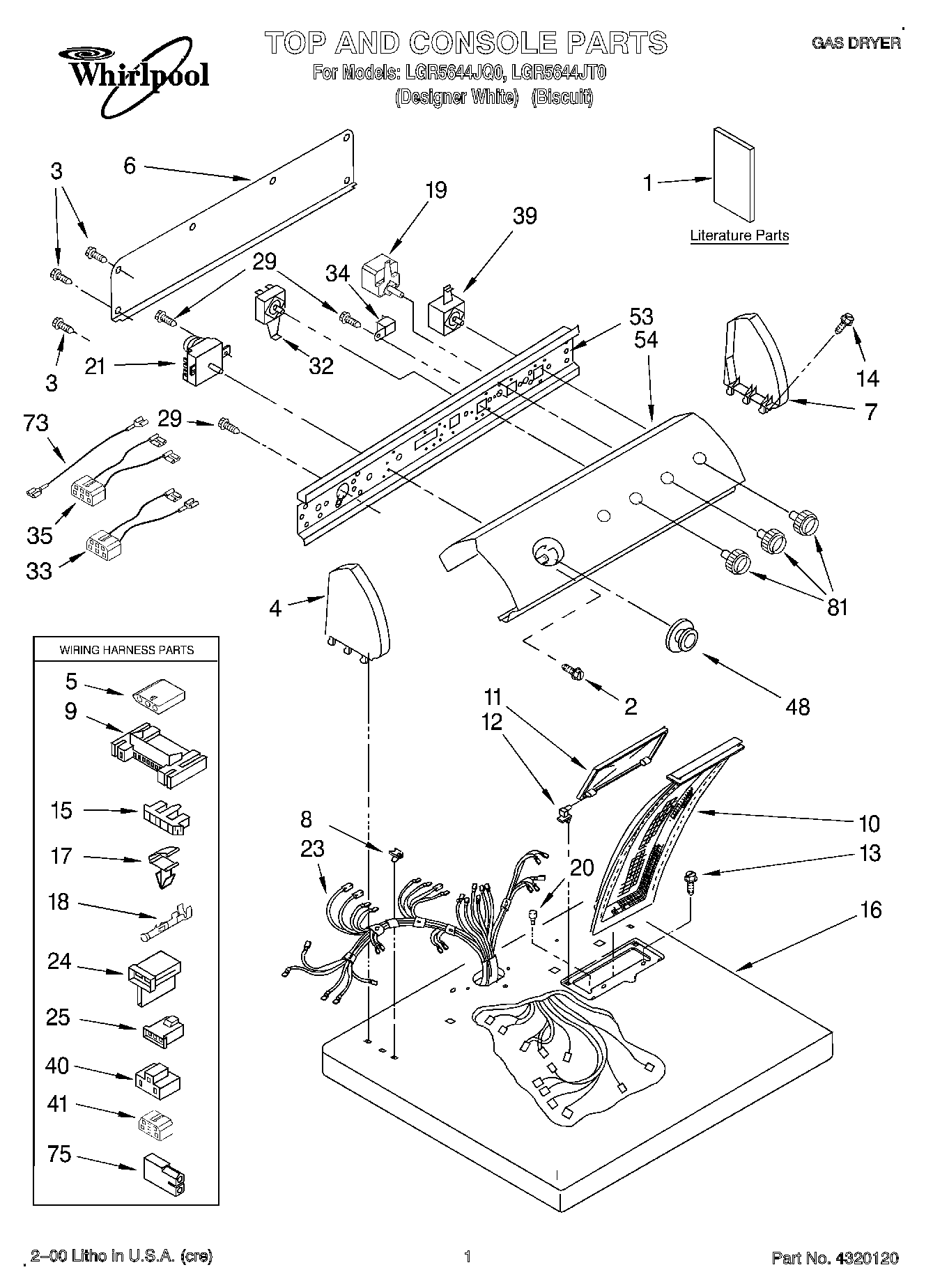

LGR5644JT0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
Dryer
1Literature Parts (Guide, Use & Care)
1Instructions, Installation
1WPL LIT3406692
23400859 Whirlpool Screw
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (BIscuit)
53936144 Whirlpool Connector
6W10103406 Whirlpool Rear Panel
7W10820038 Whirlpool Endcap
7WPL 8271362
8WP357213 Whirlpool Hinge Stopper
93395683 Whirlpool Connector
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Biscuit)
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15Connector, Timer
16Top (Biscuit)
16Top
17WP3394427 Whirlpool Clip
18WP94614 Whirlpool Terminal
19WP3405156 Whirlpool Switch
20Bumper, Lint Lid
21WP8299766 Whirlpool Timer Assembly
23Harness, Wiring
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
32WP3399639 Whirlpool Switch
333397695 Whirlpool Wire Harness
34WP694419 Whirlpool Buzzer Adjuster
358539893 Whirlpool Wire Harness
39WP3398095 Whirlpool Dryer Start Relay
403401144 Whirlpool Connector
41Block, Disconnect
48WP3957755 Whirlpool Knob
48WP3957754 Whirlpool Knob Assembly
53Bracket, Control
54Panel, Control (White)
54Panel, Control (Biscuit)
73Wire, Jumper (Black)
75Receptacle, Latching (2-Way) (Uses Terminal 94614)
81WP3957799 Whirlpool Knob
8172017 Whirlpool Appliance Touch-Up Paint White
81350930 Whirlpool White Spray Paint
814392899 Whirlpool Biscuit Touch-Up Paint
814392901 Whirlpool Biscuit Spray Paint
81PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
81799344 Whirlpool Refrigerator Paint
813957797 Whirlpool Knob
81350938 Whirlpool Spray Gun
