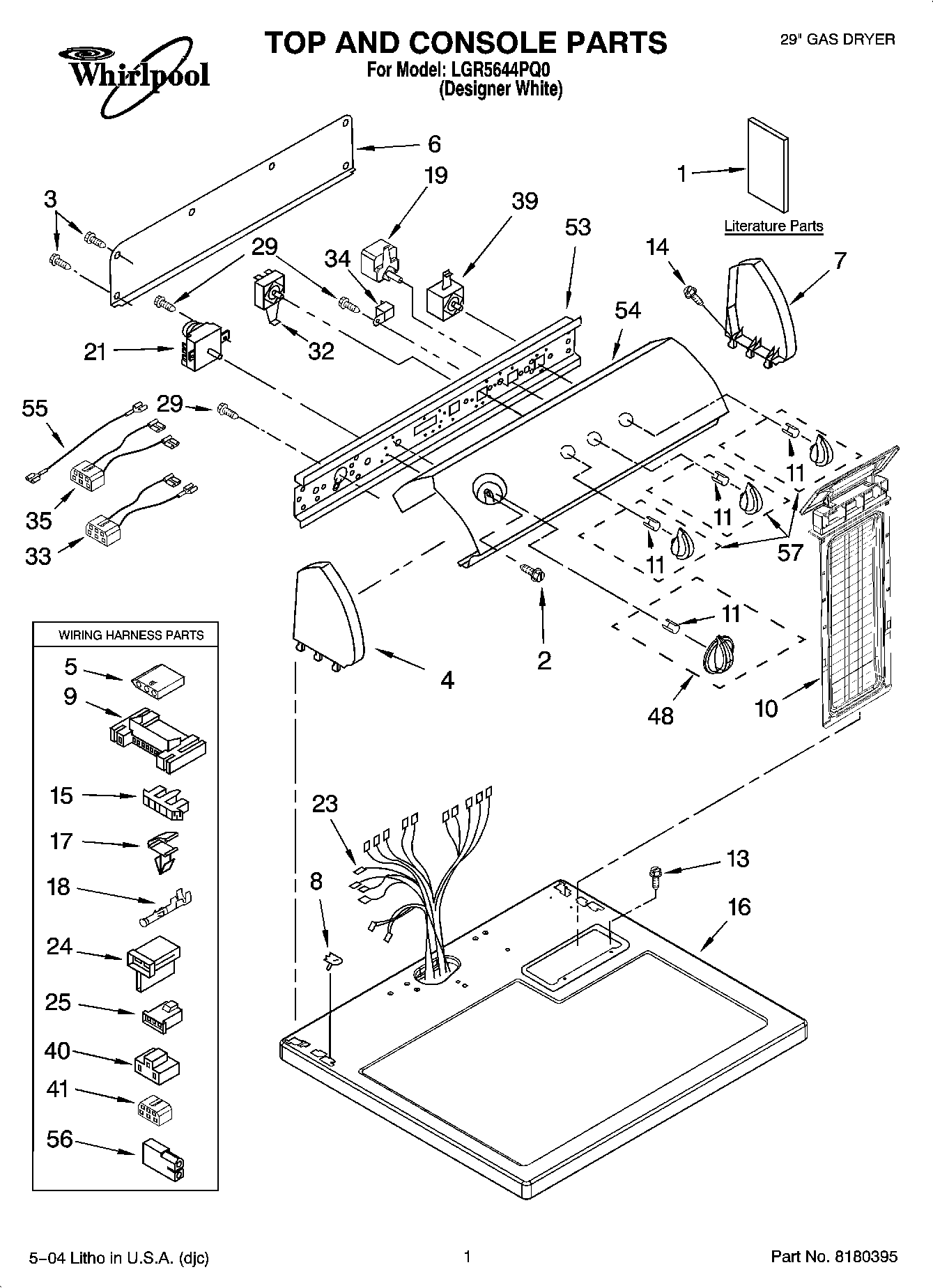

LGR5644PQ0 01 – TOP AND CONSOLE PARTS

LGR5644PQ0 01 – TOP AND CONSOLE PARTS

Written by

in

LGR5644PQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Sheet, Cycle Feature
1Installation Instructions
1DO-IT-YOURSELF REPAIR MANUALS
1Following May Be Purchased
1Wiring Diagram
1WPL 677818
1Use & Care Guide
23400859 Whirlpool Screw
3WP693995 Whirlpool Screw
53936144 Whirlpool Connector
6W10103406 Whirlpool Rear Panel
7W10820038 Whirlpool Endcap
8WP357213 Whirlpool Hinge Stopper
93395683 Whirlpool Connector
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15Connector, Timer
16Top
17WP3394427 Whirlpool Clip
18WP94614 Whirlpool Terminal
19WP3405156 Whirlpool Switch
21WP8299766 Whirlpool Timer Assembly
238299878 Whirlpool Wire Harness
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
32WP3399639 Whirlpool Switch
333397695 Whirlpool Wire Harness
34WP694419 Whirlpool Buzzer Adjuster
358539893 Whirlpool Wire Harness
39WP3398095 Whirlpool Dryer Start Relay
403401144 Whirlpool Connector
41Block, Disconnect
48W10756270 Whirlpool Dryer Timer Knob
53Bracket, Control
54Panel, Control
55Wire, Jumper (Black)
56Receptacle, Latching (2-Way) (Uses Terminal 94614)
57350938 Whirlpool Spray Gun
5772017 Whirlpool Appliance Touch-Up Paint White
57W11224254 Whirlpool Test Kit
57799344 Whirlpool Refrigerator Paint
57350930 Whirlpool White Spray Paint
57KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
57WP689790 Whirlpool Dryer Rack
57WPL 8544935
574392065 Whirlpool Dryer Maintenance Kit
57WPL ARI156985A
