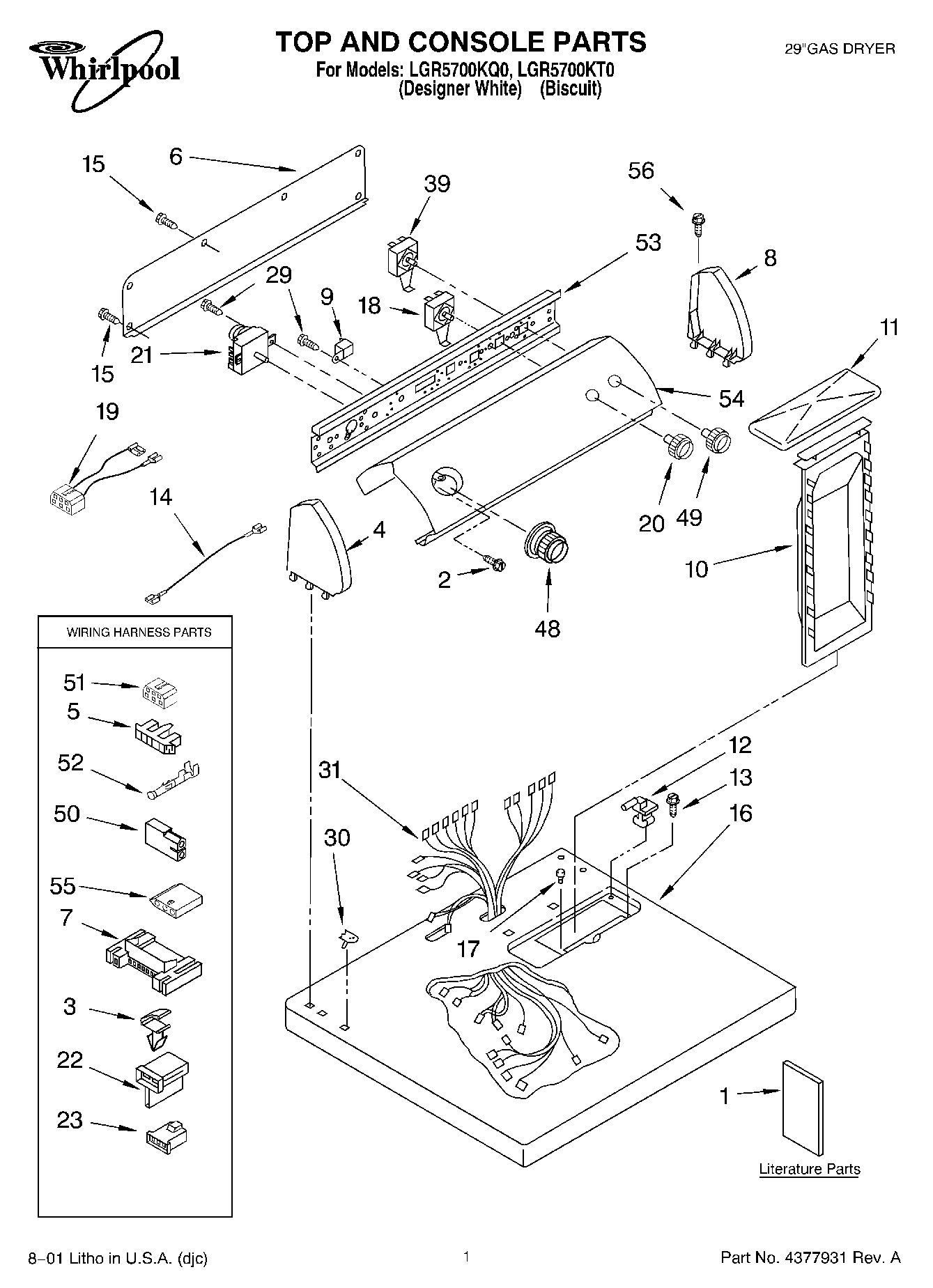

LGR5700KQ0 01 – TOP AND CONSOLE, LITERATURE

LGR5700KQ0 01 – TOP AND CONSOLE, LITERATURE

Written by

in

LGR5700KQ0 01 – TOP AND CONSOLE, LITERATURE

Products

PositionProduct
Dryer
1Literature Parts (Guide, Use & Care)
1Literature Parts (Instructions, Installation)
1Label, Wiring Diagram
23400859 Whirlpool Screw
3WP3394427 Whirlpool Clip
4Cap, End (L.H.) (BIscuit)
5Connector, Timer
6W10103406 Whirlpool Rear Panel
73395683 Whirlpool Connector
8WPL 8271362
8W10820038 Whirlpool Endcap
9WP694419 Whirlpool Buzzer Adjuster
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Biscuit)
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Wire, Jumper (Black)
15WP693995 Whirlpool Screw
16Top
16Top (Biscuit)
17Bumper, Lint Lid
183405152 Whirlpool Switch Assembly
19Wire, Jumper (Guard On/Off)
203957797 Whirlpool Knob
20WP3957799 Whirlpool Knob
21WP3976584 Whirlpool Timer Assembly
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39WP3977456 Whirlpool Start Switch
48WP3957754 Whirlpool Knob Assembly
48WP3957755 Whirlpool Knob
493957804 Whirlpool Knob
49WPL 8271349
50Receptacle, Latching (2-Way) (Uses Terminal 94614)
51Block, Disconnect
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control (White)
54Panel, Control (Biscu
553936144 Whirlpool Connector
56799344 Whirlpool Refrigerator Paint
56PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
564392899 Whirlpool Biscuit Touch-Up Paint
564392065 Whirlpool Dryer Maintenance Kit
56KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
56WP388326 Whirlpool Screw
563404351 Whirlpool Dryer Rack
56350938 Whirlpool Spray Gun
56350930 Whirlpool White Spray Paint
5672017 Whirlpool Appliance Touch-Up Paint White
564392901 Whirlpool Biscuit Spray Paint
