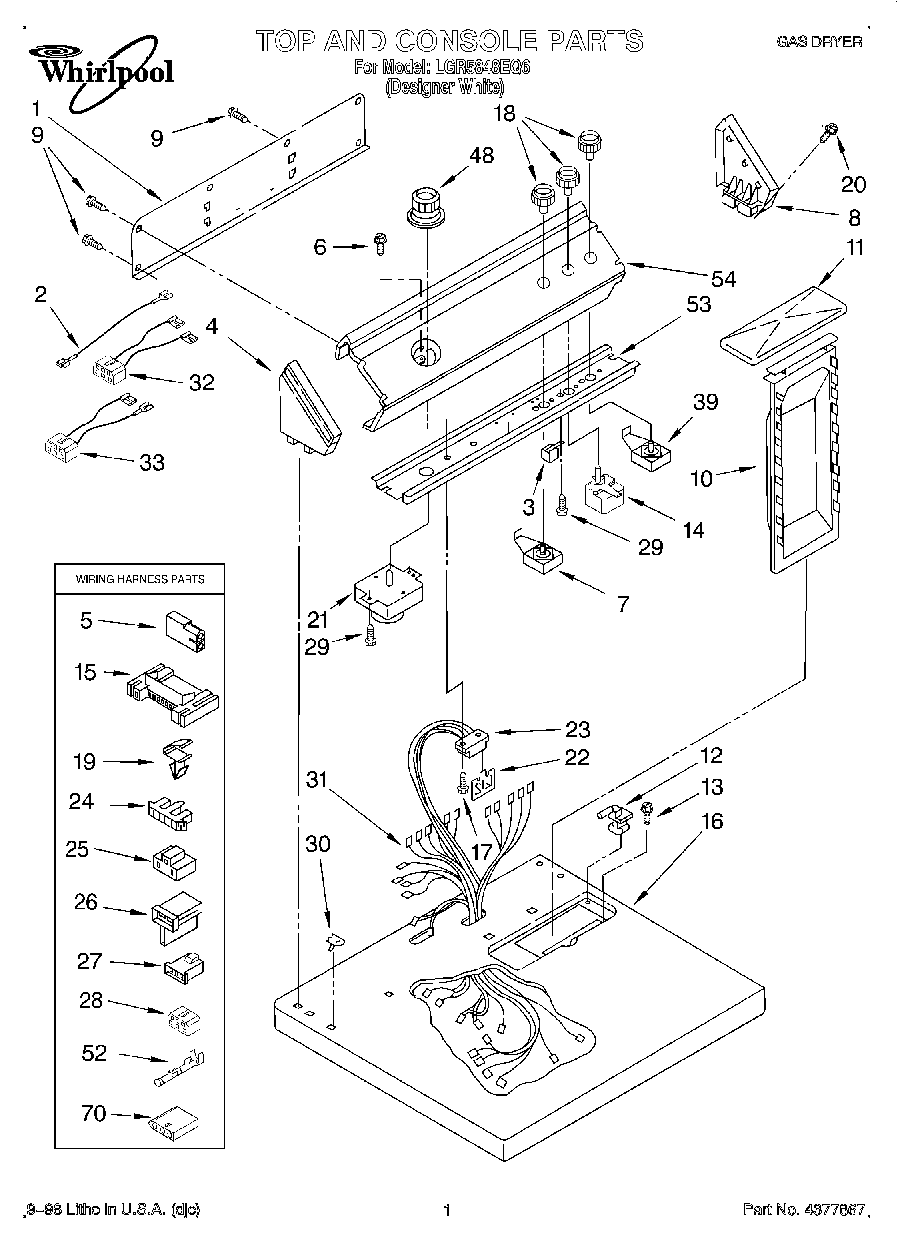

LGR5848EQ6 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Dryer
	Almond (Uncut)
	Guide, Use &
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	WPL LIT3406699
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	Instructions, Installation
1	Panel, Rear Console
2	Wire, Jumper (Black)
3	WP694419 Whirlpool Buzzer Adjuster
4	Cap, End (L.H.)
5	Receptacle, Latching (2-Way) (Uses Terminal 94614)
6	3400859 Whirlpool Screw
7	W10168169 Whirlpool Switch
8	Cap, End (R.H.)
9	WP693995 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP3405156 Whirlpool Switch
15	3395683 Whirlpool Connector
16	Top (White)
17	SCREW
18	WP3957796 Whirlpool Knob
19	WP3394427 Whirlpool Clip
20	WP388326 Whirlpool Screw
21	Timer Assembly (60 Hz.)
22	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
23	3391885 Whirlpool Connector
24	Connector, Timer
25	3401144 Whirlpool Connector
26	WP3403499 Whirlpool Connector
27	WP3403498 Whirlpool Connector
28	Block, Disconnect
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	8539893 Whirlpool Wire Harness
33	3397695 Whirlpool Wire Harness
39	WP3398095 Whirlpool Dryer Start Relay
48	WP3957752 Whirlpool Knob
52	WP94614 Whirlpool Terminal
53	Bracket, Control
54	Panel, Control
70	3936144 Whirlpool Connector
