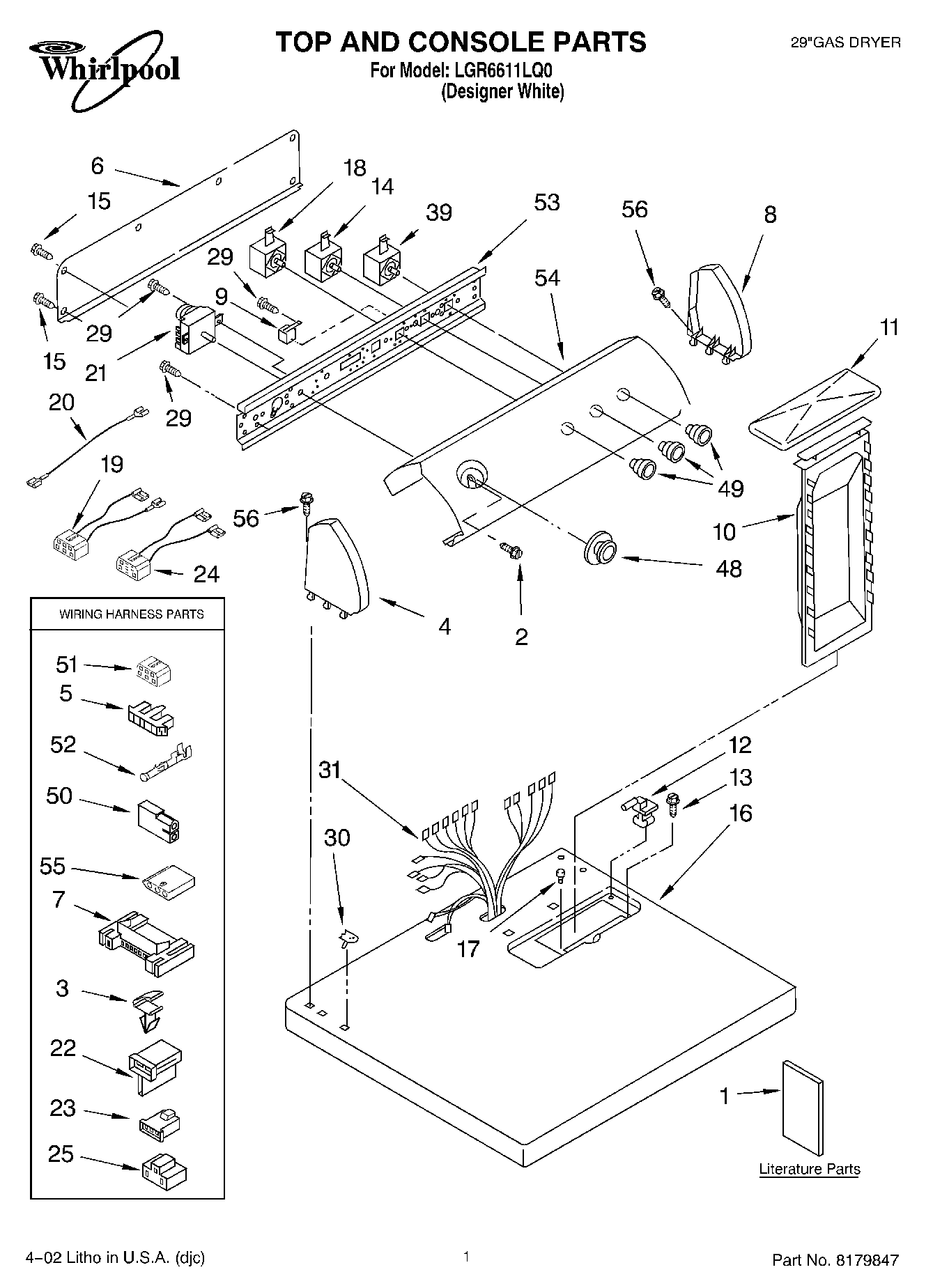

LGR6611LQ0 01 – TOP AND CONSOLE, LITERATURE

LGR6611LQ0 01 – TOP AND CONSOLE, LITERATURE

Written by

in

LGR6611LQ0 01 – TOP AND CONSOLE, LITERATURE

Products

PositionProduct
Dryer
1Literature Parts (Wiring Diagram)
1Literature Parts (Guide, Use & Care)
1Literature Parts (Instructions, Installation)
23400859 Whirlpool Screw
3WP3394427 Whirlpool Clip
5Connector, Timer
6W10103406 Whirlpool Rear Panel
73395683 Whirlpool Connector
8W10820038 Whirlpool Endcap
9WP694419 Whirlpool Buzzer Adjuster
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP3405156 Whirlpool Switch
15WP693995 Whirlpool Screw
16Top
17Bumper, Lint Lid
18WP3399639 Whirlpool Switch
193397695 Whirlpool Wire Harness
20Wire, Jumper (Black)
21WP8299766 Whirlpool Timer Assembly
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
248539893 Whirlpool Wire Harness
253401144 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
318299879 Whirlpool Wire Harness
39WP3398095 Whirlpool Dryer Start Relay
48WP3957754 Whirlpool Knob Assembly
49WP3957799 Whirlpool Knob
50Receptacle, Latching (2-Way) (Uses Terminal 94614)
51Block, Disconnect
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
553936144 Whirlpool Connector
56WP388326 Whirlpool Screw
56KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
56799344 Whirlpool Refrigerator Paint
56350930 Whirlpool White Spray Paint
5672017 Whirlpool Appliance Touch-Up Paint White
56350938 Whirlpool Spray Gun
564392065 Whirlpool Dryer Maintenance Kit
563404351 Whirlpool Dryer Rack
