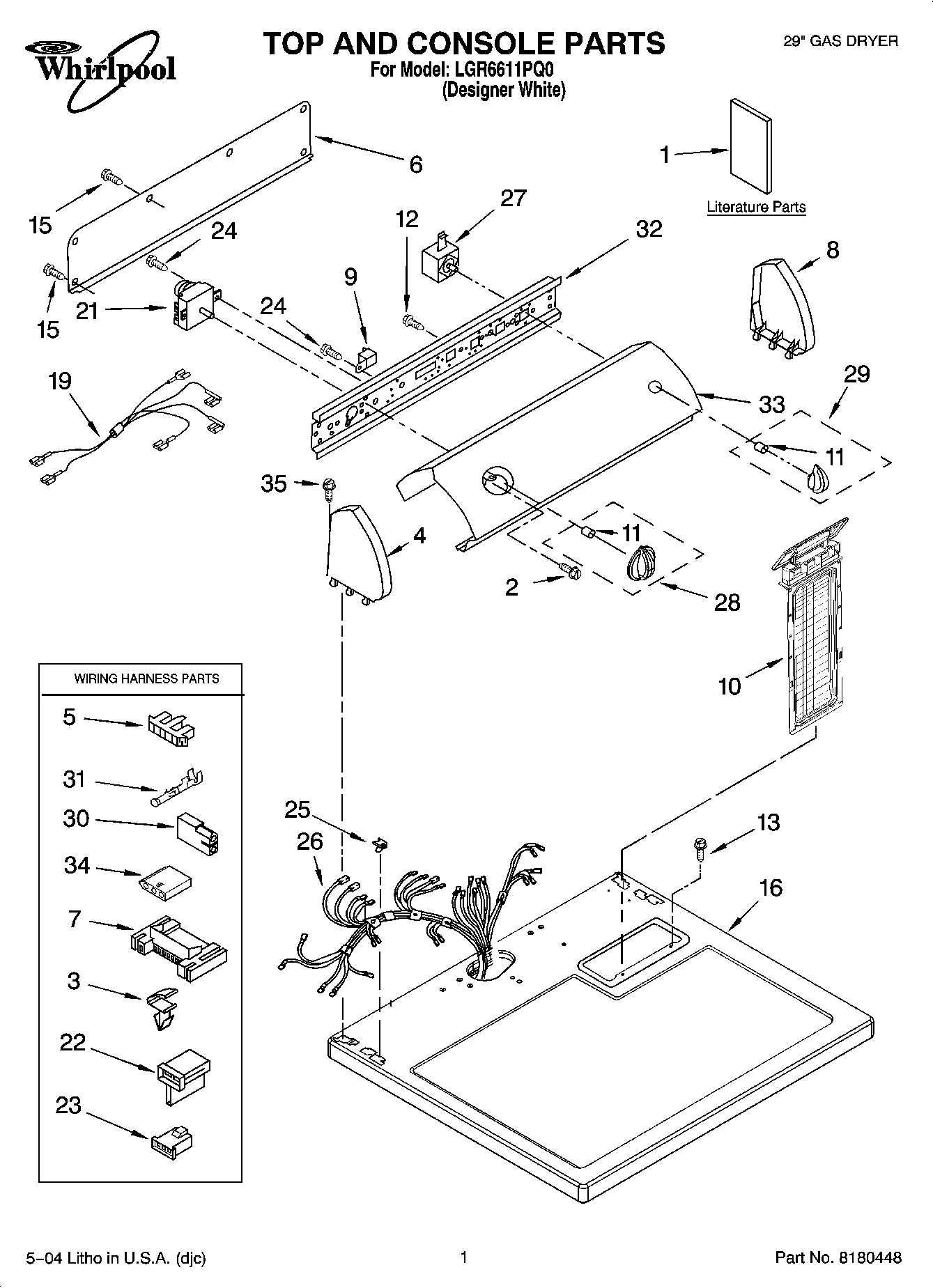

LGR6611PQ0 01 – TOP AND CONSOLE PARTS
Written by
in
LGR6611PQ0 01 – TOP AND CONSOLE PARTS
Products
Position
Product
1
Wiring Diagram
1
Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1
Use & Care Guide
1
Instructions, Installation
1
WPL 677818
1
Sheet, Cycle Feature
2
3400859 Whirlpool Screw
3
WP3394427 Whirlpool Clip
5
Connector, Timer
6
W10103406 Whirlpool Rear Panel
7
3395683 Whirlpool Connector
8
W10820038 Whirlpool Endcap
9
WP694419 Whirlpool Buzzer Adjuster
10
WPW10717210 Whirlpool Dryer Lint Screen Filter
11
WP8536939 Whirlpool Spring Clip
12
WP90767 Whirlpool Screw
13
W11693756 Whirlpool Screw Assembly
15
WP693995 Whirlpool Screw
16
Top
19
Wire, Jumper (PTS to Buzzer)
21
WP3976584 Whirlpool Timer Assembly
22
WP3403499 Whirlpool Connector
23
WP3403498 Whirlpool Connector
24
WPW10139210 Whirlpool Screw
25
WP357213 Whirlpool Hinge Stopper
26
8299877 Whirlpool Wire Harness
27
WP3404233 Whirlpool Dryer Starter Switch
28
W10756270 Whirlpool Dryer Timer Knob
29
WPL 8544935
30
Receptacle, Latching (2-Way) (Uses Terminal 94614)
31
WP94614 Whirlpool Terminal
32
Bracket, Control
33
Panel, Control
34
3936144 Whirlpool Connector
35
350938 Whirlpool Spray Gun
35
W11224254 Whirlpool Test Kit
35
72017 Whirlpool Appliance Touch-Up Paint White
35
799344 Whirlpool Refrigerator Paint
35
KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
35
3404351 Whirlpool Dryer Rack
35
350930 Whirlpool White Spray Paint
35
WP388326 Whirlpool Screw
35
4392065 Whirlpool Dryer Maintenance Kit
35
ACCESSORY PARTS
←
