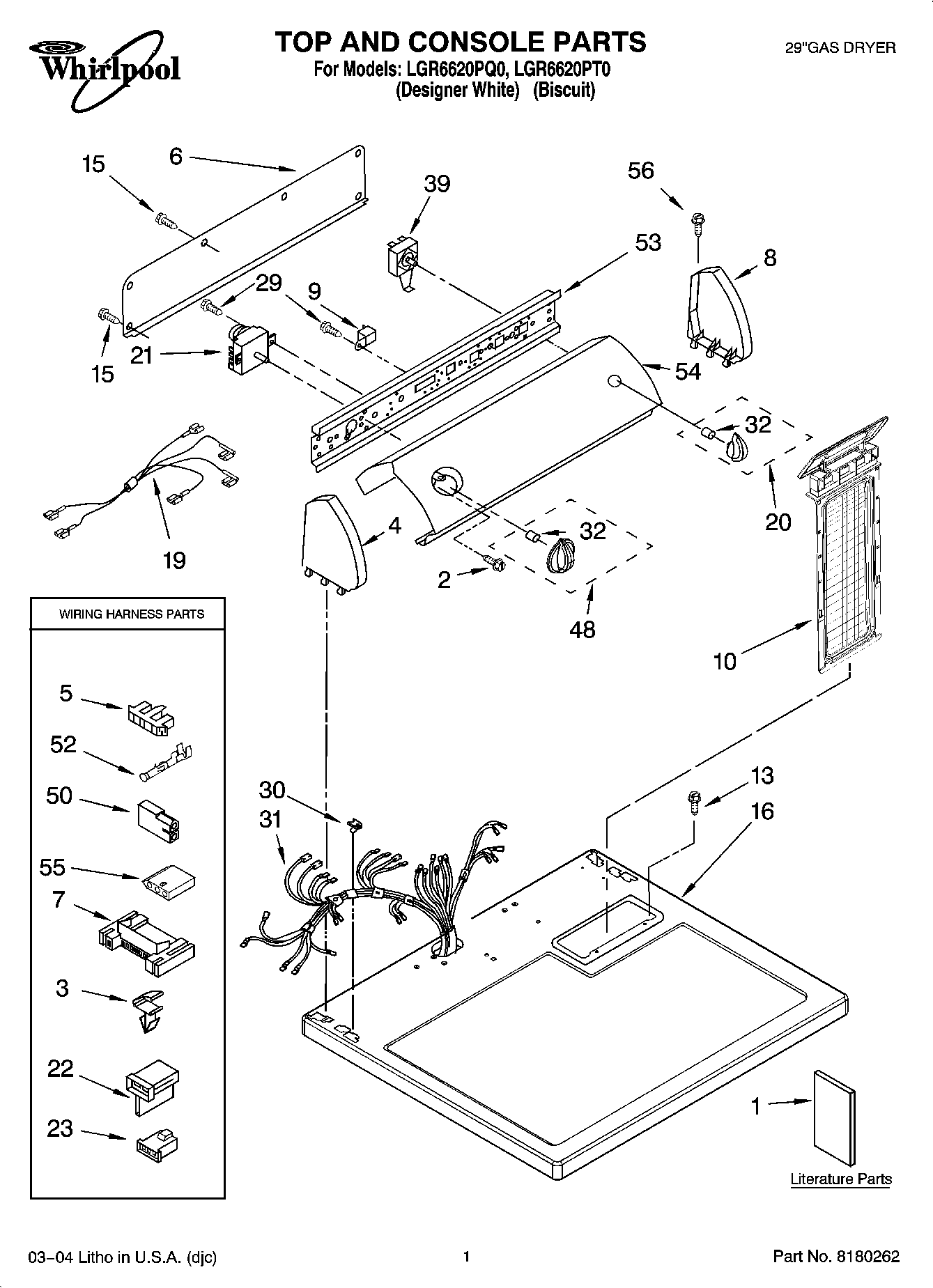

LGR6620PT0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Literature Parts (Label, Wiring Diagram)
1	Literature Parts (Use & Care Guide)
1	Dryer
1	Literature Parts (Sheet, Cycle Feature)
1	Literature Parts (Installation Instructions)
2	3400859 Whirlpool Screw
3	WP3394427 Whirlpool Clip
4	Cap, End (L.H.) (BIscuit)
5	Connector, Timer
6	W10103406 Whirlpool Rear Panel
7	3395683 Whirlpool Connector
8	W10820038 Whirlpool Endcap
8	WPL 8271362
9	WP694419 Whirlpool Buzzer Adjuster
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
10	Screen, Lint (Biscuit)
13	W11693756 Whirlpool Screw Assembly
15	WP693995 Whirlpool Screw
16	Top
16	Top
19	Wire, Jumper (PTS to Buzzer)
20	WPL 8544935
20	WPL 8544936
21	WP3976584 Whirlpool Timer Assembly
22	WP3403499 Whirlpool Connector
23	WP3403498 Whirlpool Connector
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	WP8536939 Whirlpool Spring Clip
39	WP3404233 Whirlpool Dryer Starter Switch
48	W10756270 Whirlpool Dryer Timer Knob
48	Timer Knob Assembly (Biscuit)
50	Receptacle, Latching (2-Way) (Uses Terminal 94614)
52	WP94614 Whirlpool Terminal
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Biscuit)
55	3936144 Whirlpool Connector
56	WP388326 Whirlpool Screw
