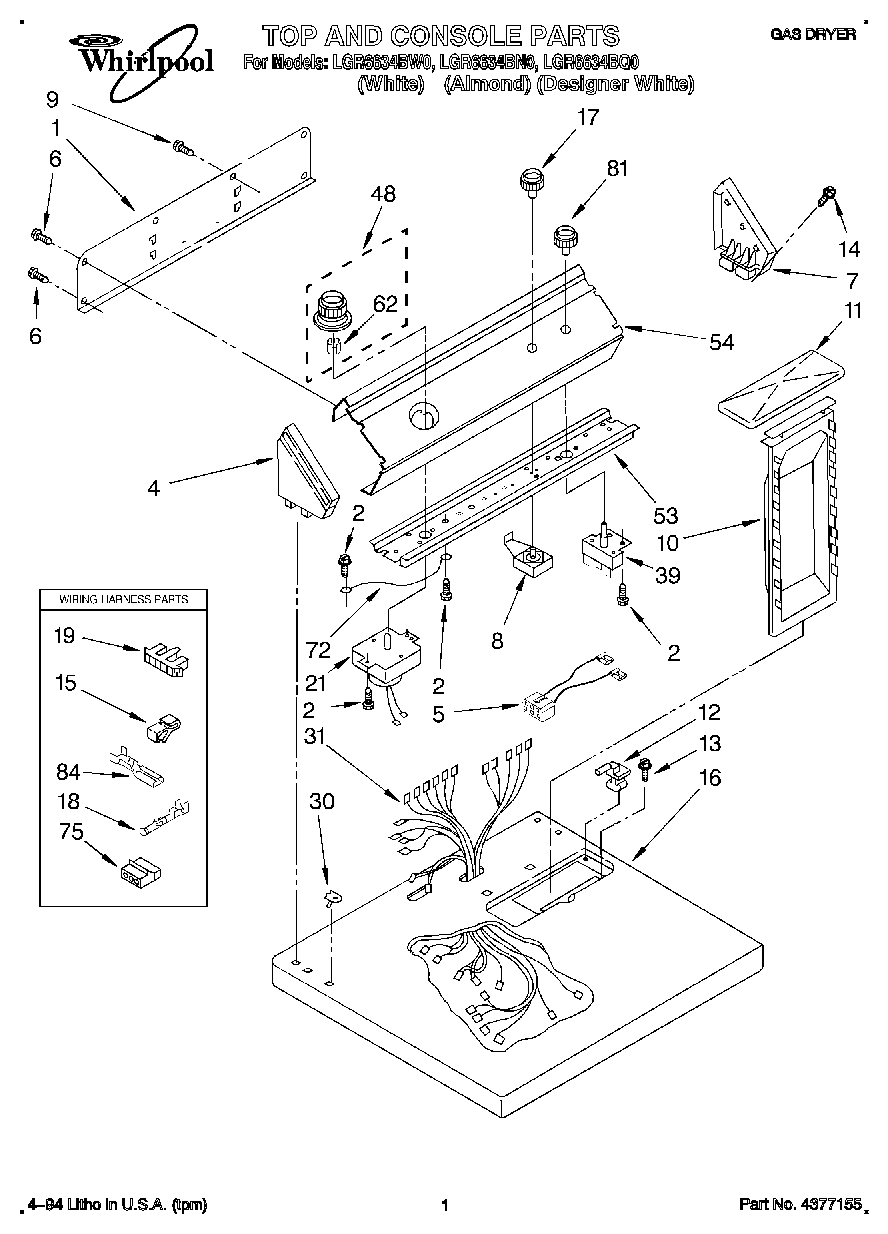

LGR6634BN0 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGR6634BN0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGR6634BN0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Almond (Uncut)
Instructions, Installation
799344 Whirlpool Refrigerator Paint
Guide, Use & Care
72017 Whirlpool Appliance Touch-Up Paint White
WP72107 Whirlpool Touchup
350956 Whirlpool Spray Assembly
Label, Wiring Diagram
350938 Whirlpool Spray Gun
Dryer
Leveler (Thinner)
1Panel, Rear Console
2WPW10139210 Whirlpool Screw
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Almond)
58283286 Whirlpool Wire Harness
6WP489069 Whirlpool Compactor Screw
7Cap, End (R.H.) (White)
7Cap, End (R.H.) (Almond)
8Switch, Temperature
9WP693995 Whirlpool Screw
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15Clip, Retainer
16Top (Almond)
16Top (White)
17WP3957796 Whirlpool Knob
17KNOB
18WP94614 Whirlpool Terminal
19Connector, Timer
21WP3976568 Whirlpool Timer
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39Switch, Push-To-Start
39(Alt.)
48WP3957752 Whirlpool Knob
53Bracket, Control
54Panel, Control (FOR MODEL LGR6634BW0)
54Panel, Control (FOR MODEL LGR6634BN0)
54Panel, Control (FOR MODEL LGR6634BQ0)
62WP688805 Whirlpool Spring Clip
72Wire, Ground
75Receptacle, 3-Way Terminal (Use W/94614)
81Knob, Push To Start
81WP3957800 Whirlpool Knob
84WP596797 Whirlpool Terminal
