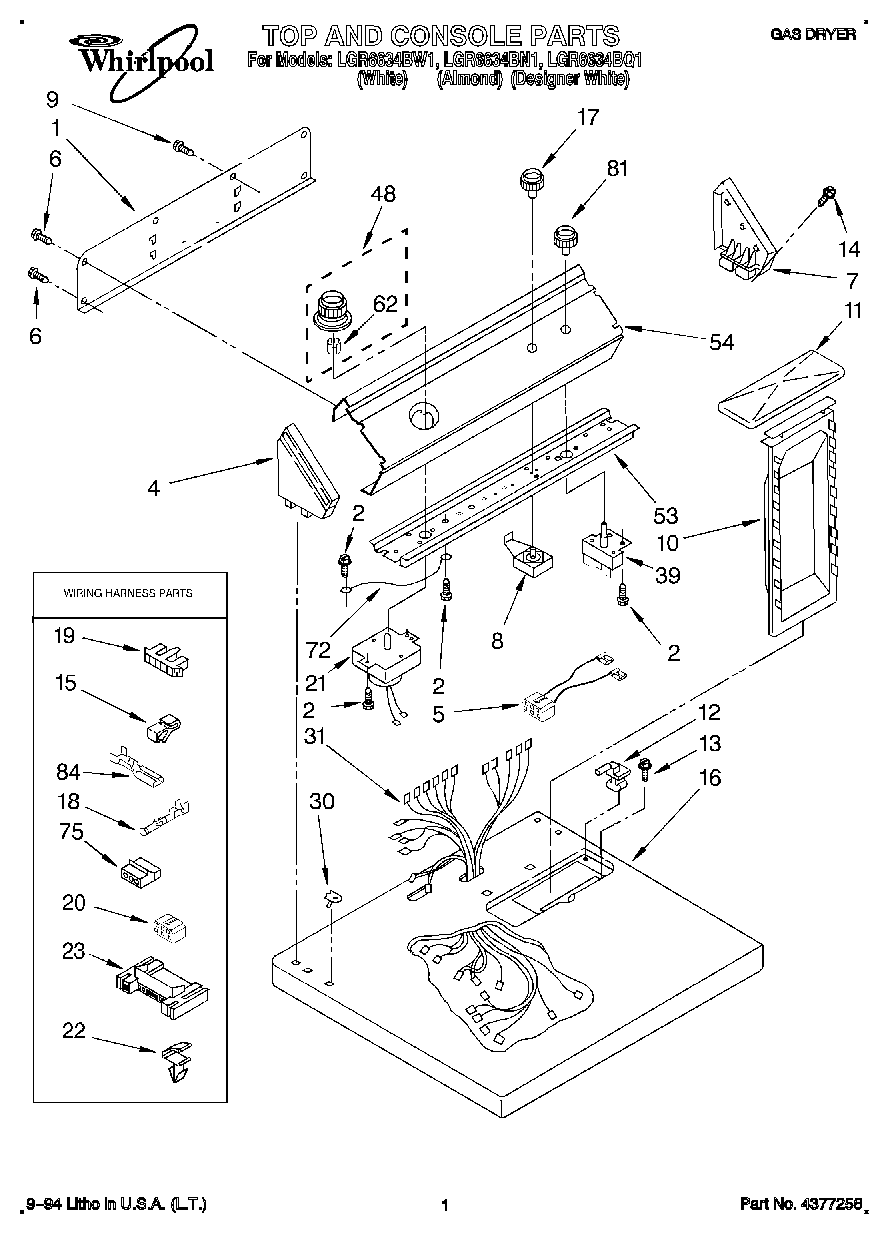

LGR6634BN1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Dryer
	Label, Wiring Diagram
	Guide, Use & Care
	Instructions, Installation
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (White)
5	8283286 Whirlpool Wire Harness
6	WP489069 Whirlpool Compactor Screw
7	Cap, End (R.H.) (White)
7	Cap, End (R.H.) (Almond)
8	Switch, Temperature
9	WP693995 Whirlpool Screw
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	Clip, Retainer
16	Top (Almond)
16	Top (White)
17	KNOB
17	WP3957796 Whirlpool Knob
18	WP94614 Whirlpool Terminal
19	Connector, Timer
20	Block, Disconnect
21	WP3976568 Whirlpool Timer
22	WP3394427 Whirlpool Clip
23	3395683 Whirlpool Connector
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	(Alt.)
39	WP3395382 Whirlpool Push To Start Switch
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (FOR MODEL LGR6634BW0)
54	Panel, Control (FOR MODEL LGR6634BN0)
54	Panel, Control (FOR MODEL LGR6634BQ0)
62	WP688805 Whirlpool Spring Clip
72	Wire, Ground
75	Receptacle, 3-Way Terminal (Use W/94614)
81	Knob, Push To Start
81	WP3957800 Whirlpool Knob
84	WP596797 Whirlpool Terminal
